Asus AMD Radeon RX 580 8GB ROG STRIX OC Graphics Card
8GB Asus Radeon RX 580 ROG STRIX GAMING OC, 14nm Polaris, 2304 Streams, 1360MHz Boost, 8000MHz GDDR5, DP/HDMI/DVI-D
STRIX OC Radeon RX 580 Gaming Graphics Card from ASUS
next-gen STRIX OC, gaming Performance graphics card
Packed with exclusive ASUS tech the ROG STRIX is a powerful and stylish Radeon RX 580. This ASUS 580 has an improved thermal system with 2x more contact to the GPU and Patented Wing-Blade IP5X-Certified Fans for maximum airflow and longer fan lifespan. VR-friendly HDMI ports let gamers easily enjoy immersive virtual reality experiences whilst ASUS Aura Sync gives gamers RGB LED personalization. These are just a few of the multitude of features the RX 580 STRIX boasts, all of which enhance your experience.
Radeon STRIX Breakdown
RX 580 Heat Dissipation
Up to 30% Cooler and 3X Quieter Gaming Performance
New ROG Strix graphics are constructed with a 2.5-slot width, providing 40% more heat sink surface area for heat dissipation compared to previous 2-slot designs for dramatically cooler and quieter performance.
*Images for reference only.
MaxContact on RX 580 GPU
2X More Contact with GPU for Improved Thermal Transfer
MaxContact is an industry-first GPU cooling technology, featuring an enhanced copper heat spreader that directly contacts the GPU. MaxContact utilizes precision machining to provide a surface that makes up to 2X more contact with the GPU than traditional heat spreaders, resulting in improved thermal transfer.
Patented Wing-Blade Design
Max Air Flow with 105% More Air Pressure
Patented wing-blade fans delivers maximum air flow and 105% greater static pressure over the heat sink, while operating at an up to 3X quieter volume than reference cards.
STRIX 0dB Technology
Game in Complete Silence
Innovative 0dB technology stops the fan completely when the GPU temperature remains below a set level*, letting you enjoy light gaming in complete silence.
*55°C for ROG Strix RX 580
ASUS 580 Dust Resistance
Longer Fan Lifespan
The fans in ROG Strix graphics cards are certified under the International Protection Marking (IP code) as IP5X dust resistant for improved reliability and a longer lifespan. This stringent certification process ensures ROG Strix graphics cards provide optimal fan performance, even under severe conditions.
ASUS FanConnect II
Optimal System Cooling
ASUS FanConnect II features two 4-pin, hybrid-controlled headers that can be connected to both PWM and DC system fans for optimal system cooling. The connected fans reference both the GPU and CPU, operating automatically based on the one with the higher temperature. A comprehensive set of tuning options allow you to tune fan speeds for efficient cooling.
*Image for reference only. Actual PC layout may vary.
Tweak II RX 580 Control
GPU Tweak II lets you easily set these ASUS FanConnect II modes
Auto mode: Chassis fan speeds reference GPU temperatures and operate based on the default factory setting.
Manual mode: Allows you to set a fixed speed for connected fans.
User-defined mode: Allows you to set chassis fans to reference either the CPU or GPU temperature to determine rotational speed. Additionally, a smart, automatic calibration routine senses the controllable range of connected fans and allows you to fine-tune speeds for efficient cooling and low noise.

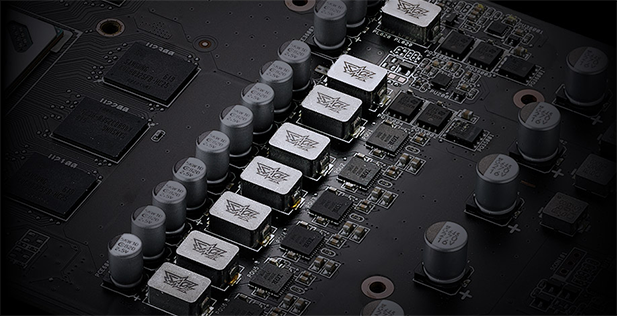

Super Alloy Power II
7+1 Phase - Enhanced Durability and Efficiency
ASUS engineers have integrated premium alloy components into their graphics card designs to reinforce overall reliability. Super Alloy Power II components greatly enhance efficiency, reduce power loss and achieve thermal levels that are approximately 50% cooler than previous designs.
Personalized ASUS 580
ASUS Aura Sync - Outshine The Competition
Featuring Aura RGB Lighting on both the shroud and backplate, ROG Strix graphics cards are capable of displaying millions of colors and six different effects for a personalized gaming system. ROG Strix graphics cards also feature ASUS Aura Sync, RGB LED synchronization technology that enables complete gaming system personalization when the graphics card is paired with an Aura-enabled gaming motherboard.
*Images for reference only.
Top-Quality Radeon STRIX
Industry-only 100% Automated Production Process
All ASUS graphics cards are now produced using Auto-Extreme Technology, an industry-exclusive, 100% automated production process that incorporates premium materials to set a new standard of quality. Auto-Extreme Technology ensures consistent graphics card quality as well as improved performance and longevity. Since the introduction of Auto-Extreme technology, reliability has improved by 30%. This new manufacturing process is also environmentally friendly, eliminating harsh chemicals and reducing power consumption by 50%.
|Chipset||Radeon RX 580|
|Edition||ROG STRIX GAMING OC|
|Manufacturing Process||14 nm|
|Boost Clock||1360 (1380 in OC Mode) MHz|
|Memory Speed (Effective with DDR)||8000 MHz|
|Memory Data Rate||8.0 Gb/s|
|Memory Bus||256 Bit|
|Peak Half Precision Compute Performance|
|Peak Single Precision Compute Performance|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||4 Displays|
|AMD CrossFire Support||2-Way CrossFire|
|AMD Freesync Support||Yes|
|AMD FreeSync Version||FreeSync™ 2|
|Microsoft DirectX Support||12 API|
|Low Profile Support||N/A|
|Graphics Card TDP/Power||185 W|
|Graphics Card Power Connectors||
|Minimum Recommended PSU||500 W|
|Maximum GPU Temperature|
