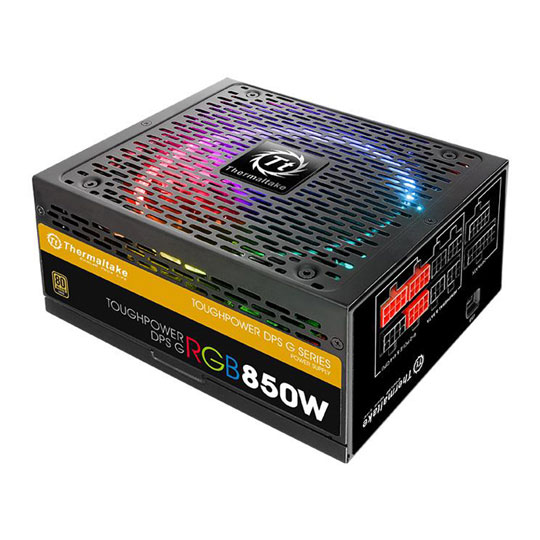

Thermaltake 850 Watt Toughpower DPS G RGB PSU/Power Supply
850W ThermalTake Toughpower DPS G RGB, Full Modular, 80 PLUS Gold, SLI/CrossFire, Single Rail, 70.83A, 140mm Fan,ATX PSU
The combination of Toughpower DPS G RGB Gold and three intelligent platforms – DPS G PC APP 2.0, DPS G Smart Power Management (SPM) Cloud 1.0, and DPS G Mobile APP 1.0 helps users not just monitor smart power supply units, but also save the energy, reduce CO2 emission, and eventually protect the Earth.
Patented 256 color RGB Fan
The first RGB PSU series introduced by Thermaltake install with a patented circular 256 multi-colored 140mm fan. Users can freely adjust fan speed as well as fan colors digitally through DPS G PC App. The color and brightness uniformity of the multicolored LED ring is visible from all directions and adds style to the chassis.
Concentrated Compression Fan Blade
The fan blade is designed for high static pressure requirements of demanding applications; the concentrated compression blade is engineered to focus the weaker, inner circle of air outward, allowing the outer section to pressurize the air. The fan blades are optimized to enhance static pressure for an impressive cooling performance. Hydraulic bearings for silent operation guarantee ultra-low noise, and the anti-vibration mounting system strengthens the product’s stability during operation. Moreover, In-mold injection anti-vibration rubber pads provide hassle-free usage for 80% protection coverage, including all four corners.
Security Protection – Warning Alert & PC Off Remote Control
The SPM platform provides three alert functions: fan failure, over temperature (over 140?/60?), and abnormal voltage level (over/under 5% of normal level) warning alert. That will help users to reduce the possibility of overheating your internal components and burning the PC. When the abnormal activities occur, the warning message will be pushed to the mobile devices and email. The SPM platform allows users to turn off the computer remotely via mobile app when users receive the warning message.
Security Protection – Scheduled Shutdown
The SPM platform allows users to arrange a scheduled shutdown for the system remotely through the Mobile APP or the Cloud Management. For example, when the process is complete, users can schedule a time for the system to switch off automatically via their mobile devices in order to save the energy and electricity cost.
100% High Quality Japanese Capacitors
The Toughpower DPS G RGB 850W Gold features 100% high quality Japanese brand capacitors, which greatly improves the durability and offers the highest stability and reliability.
Fully Modular Cable Design
Fully modular power supply offers cable selection for users while powering the system at an advantageous voltage. The flat cables can make cable management easier, reduce clutter and increase airflow inside the chassis.
Core Component: MCU
Toughpower DPS G RGB 850W Gold Series comes with a 32Bit Microcontroller Unit (MCU) from Microchip Technology. The 32Bit MCU is a small computer on a single integrated circuit containing a processor core, memory, and programmable input/output peripherals. MCU can digitally control devices and processes, such as automobile engine control systems and office machines.
Digital Control Board
Digital power supplies support high-efficiency switching transistors that perform only necessary steps and waste less energy given off as heat. In short, digital power supplies do not dissipate power, which creates waste, and incorporate smaller, lighter transistors. Using smaller parts that work more efficiently enables Thermaltake to craft smaller and lighter power supplies, typically one of the bulkiest components in any PC.
Massive and Dedicated +12V Output
Toughpower DPS G RGB 850W Gold is equipped with a powerful single +12V rail.
80 PLUS Gold-Certified and Skylake-Ready
Toughpower DPS G RGB 850W Gold Power Supply with DPS G software delivers up to 91% efficiency under real-world load conditions, promising the lowest power losses. Additionally, Toughpower DPS G RGB 850W Gold has been optimized to work with Intel’s new, sixth-generation Skylake processors to achieve maximum energy savings.
TT Power VR Ready
Toughpower DPS G RGB Series power supplies offer stable and sufficient output voltage for multiple VGA cards and high Capability of different VGA cards for VR system.
DPS G PC APP 2.0: Smart Zero Fan
Aside from the silent and performance mode, DPS G PC APP 2.0 comes with the new Zero Fan mode to minimize the audible noise of your PC. The fan will be turned on around 20% of rated load to optimize the thermal performance and minimize the audible noise.
Smart Power Management Reports
Users can access the ECO report and the Energy Consumption Report to understand the detailed information about CO2 emission and energy consumption by comparing current data with the previous 3 months. Users could simply save the money by setting the goal of how much kWh they are going to consume within a specific period through Energy Saving Plan. Users could also decide whether to receive the notification via email and mobile app in order to successfully achieve the goal of saving more money and energy. In addition, Power Usage Behavior report can provide a comprehensive analysis for Smart Power Supply users. With the PSU’s conversion efficiency on the y-axis and power consumption on the x-axis, the report presents a complete overview of your electricity consumption behavior. In addition, the report can recommend suitable power supply wattages for optimum efficiency. Features • 850W Gold PSU.
• Fully modular design.
• PSU pre-installed with a patented 256 colors RGB fan.
• Concentrated Compression Fan Blade.
• Warning Alerts & PC Off Remote Control.
• 100% High Quality Japanese Capacitors.
|Edition||Toughpower DPS G RGB|
|80 PLUS Certification||80 PLUS Gold|
|Max. Efficiency||91 %|
|Fans||1 x 140mm|
|Internal +12V Rails||Single Rail|
|Rail 1 +12V||70.83 A|
|Rail 2 +12V||N/A|
|Rail 3 +12V||N/A|
|Rail 4 +12V||N/A|
|Rail 5 +12V||N/A|
|Rail 6 +12V||N/A|
|Max. Combined Output +12V||70.83 A|
|Dimensions||150 x 86 x 180 mm (WxHxD)|
