Seasonic Focus GX 850W Fully Modular 80+ Gold PCIE 5.0 ATX 3.0 Power Supply/PSU
850W Seasonic Focus GX-850 PCIE5.0 80PLUS Gold, Single Rail, Fully Modular, 70A, 135mm FDB Fan, ATX3.0 PSU
|Instalment Rate:||0% p.a. (fixed)|
|Cost of purchase:||£139.98|
|Total inc. interest:||£139.98|
|Cost of purchase:||£99|
|Total inc. interest:||£99|
Purchase Rate: 23.9% p.a. (variable)
Representative: 23.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
By DPD On 1st Dec
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

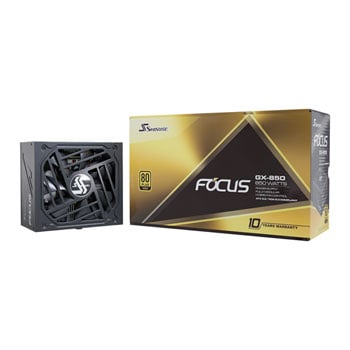

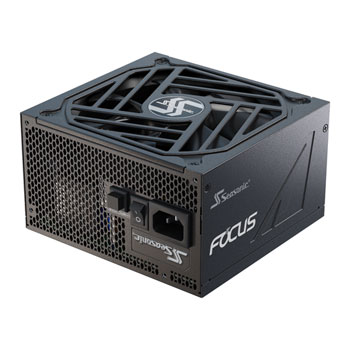

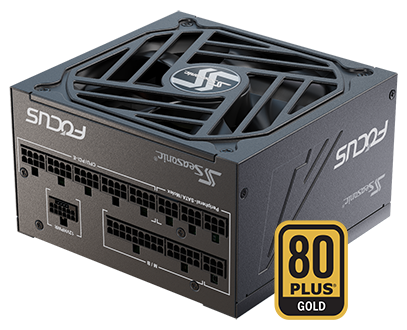

FOCUS GX ATX 3.0 850 Watt Fully Modular Power Supply from Seasonic
BRINGING PERFORMANCE & EFFICIENCY TO YOUR PCFollowing the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series was upgraded to comply with the ATX 3.0 and PCIe 5.0 standards. Offering a complete range of power supplies ranging from 750 W to 1000 W with in a 140 mm depth, these units will be the perfect allies to power the newest high power graphics cards and processors on the market.
Excellent Efficiency for your Dream PC

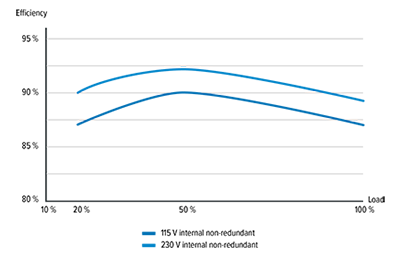

80 PLUS® GOLDThe FOCUS GX achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.
Build to Power the Latest Components
ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)Seasonic’s latest FOCUS GX ATX 3.0 Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.
Control your Fans to your Needs

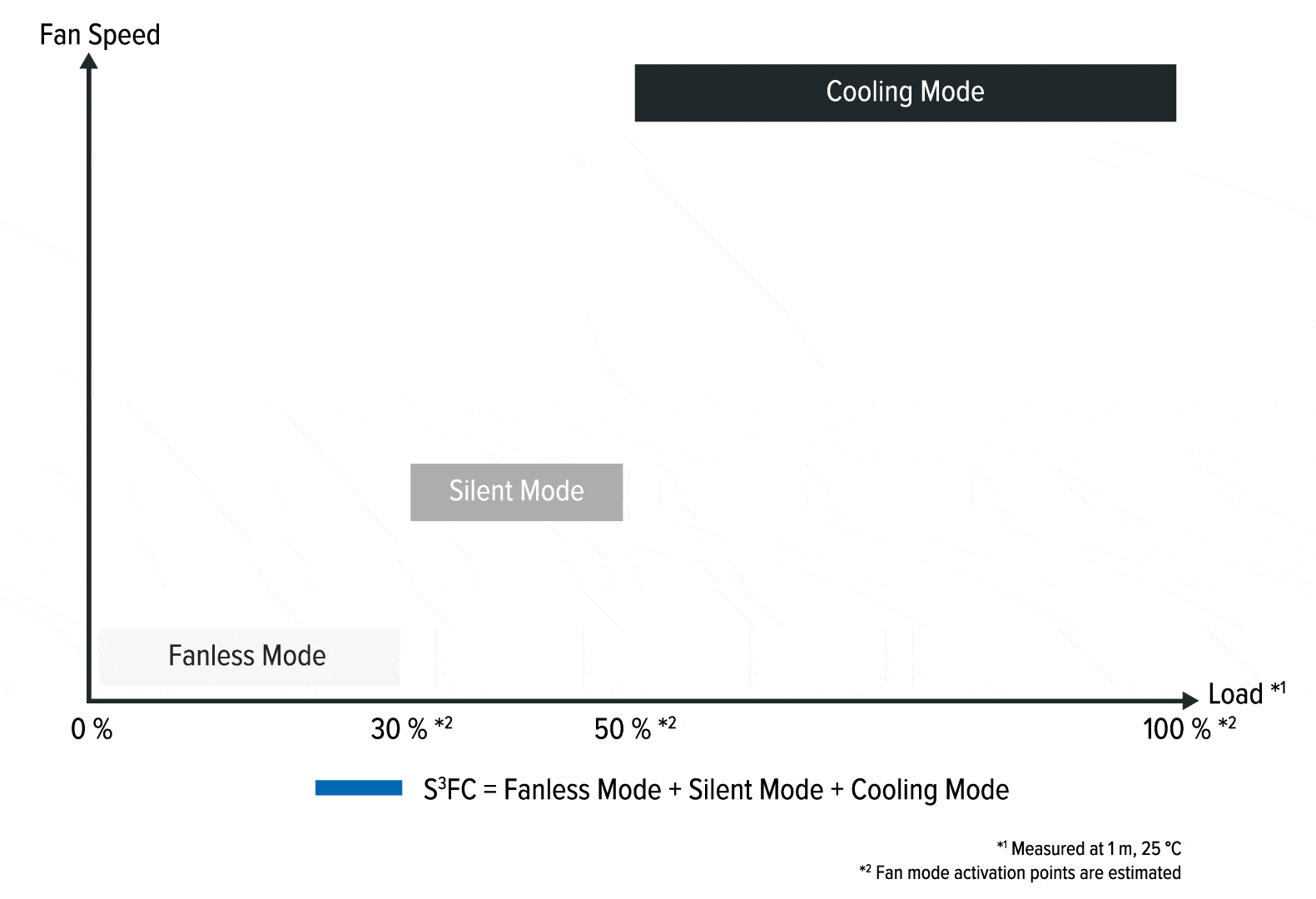

DIGITAL HYBRID FAN CONTROLThe industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Digital Hybrid Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
Finely Crafted Fan Design
FLUID DYNAMIC FAN BEARING High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
HOW IT WORKSWhen the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
FOCUS GX Feature Summary
1.ATX 3.0 and PCIe 5.0 Cable (12VHPWR)
2.80 PLUS® Gold certified
3.Compact Size - 140 mm deep

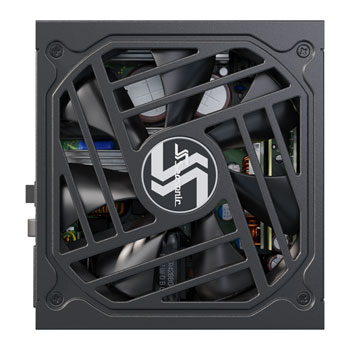

4.Top-Quality 135 mm FDB Fan
5.Digital Hybrid Fan Control
6.S3FC - Fanless until 30 % load

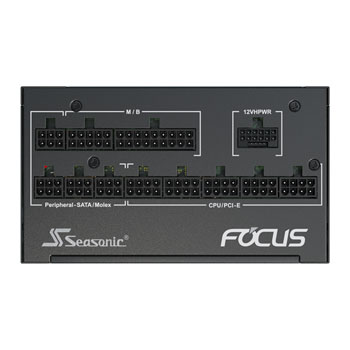

7.Cable-free Connection Design
8.Tight Voltage Regulation
9.Gold plated connectors
10.10 years warranty
|Form Factor||ATX 3.0|
|Edition||FOCUS GX ATX 3.0|
|80 PLUS Certification||80 PLUS Gold|
|Max. Efficiency (at 230Vac)||90 %|
|Fans||1 x 135mm|
|Internal +12V Rails||Single Rail|
|Rail 1 +12V||N/A|
|Rail 2 +12V||N/A|
|Rail 3 +12V||N/A|
|Rail 4 +12V||N/A|
|Rail 5 +12V||N/A|
|Rail 6 +12V||N/A|
|Max. Combined Output +12V||83 A|
|Dimensions||150 x 86 x 140 mm (WxHxD)|
