Scan code: LN147227 Manufacturer code: PSUGMXRGBPRO850G

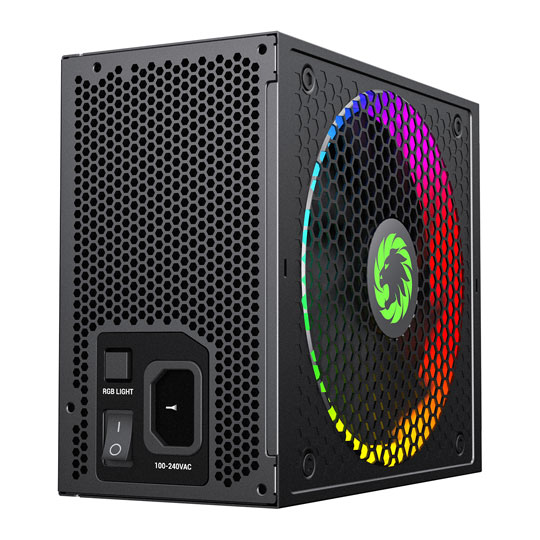

GameMax RGB-850 Pro 850 Watt Fully Modular 80+ Gold ARGB PSU/Power Supply

850W GameMax RGB-850 Pro Power Supply, Fully Modular, 80PLUS Gold, Single Rail, 70A, 140mm ARGB Fan, ATX PSU

Thumbnail 1 : GameMax RGB-850 Pro 850 Watt Fully Modular 80+ Gold ARGB PSU/Power Supply Thumbnail 2 : GameMax RGB-850 Pro 850 Watt Fully Modular 80+ Gold ARGB PSU/Power Supply Thumbnail 3 : GameMax RGB-850 Pro 850 Watt Fully Modular 80+ Gold ARGB PSU/Power Supply Thumbnail 4 : GameMax RGB-850 Pro 850 Watt Fully Modular 80+ Gold ARGB PSU/Power Supply
Scan code: LN147227 Manufacturer code: PSUGMXRGBPRO850G
Order now and receive it by Thursday, 25th July
£79.99
Get it Thursday, 25 JulIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 25th Jul to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

GameMax RGB-850 Pro 80 Plus Gold Power Supply

Introducing the RGB 850W Gold-GameMax Premium Edition. This intelligent fully modular unit delivers 850 watts of clean, continuous and stable power, ideal for gaming and workstation PCs that have multiple GPUs and high-performance CPUs.

This premium power supply boasts exceptional stability and durability, featuring 80 PLUS Gold-certified efficiencies, state of the art components, a fluid dynamic bearing fan and a fully modular design.
A full suite of top tier circuit protections ensures that the power that is delivered to your system is safe and reliable in any environment.

Building on the success of the RGB Series, combining features of the existing RGB Range and by adding some small upgrades, including a new design layout & Motherboard Sync capability GameMax have created a cutting-edge modern gaming Power supply, along with a 2-year warranty.


Features


80 PLUS Gold Certification: - Trusted with an 80 PLUS Gold certification and Intel C6/C7 States Ready, this powerful Power Supply has an energy efficiency of 90 percent or higher and has been optimised to work with all generations of Intel processors to achieve maximum energy saving.
12V Current Output: - Premium components and a powerful single 12-volt current output of 70A guarantees the performance is always high of the components at the heart of your system.
Fluid Dynamic Bearing: - Using a 140mm 9 blade fan with a Fluid Dynamic Bearing provides high airflow and with smarter RPM control for a silent, reliable performance and a longer lifespan.

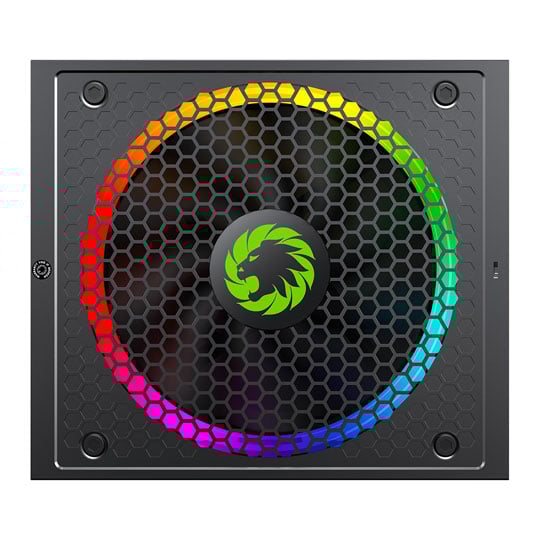

140mm ARGB Fan: - A pre-installed 140mm ARGB fan included is a 256 RGB colour cooling fan with 25 manual colour modes to choose from at the touch of a button helps deliver beautiful lighting to the internal chassis and add some style to your build.
Motherboard Software: - The ARGB lighting effects can be synced through the Motherboard which supports ARGB function, 5V 3-Pin Addressable RGB header, including ASUS AURA, MSI Mystic Light, Gigabyte Fusion 2.0 & ASRock. Customise the look with endless possibilities with 16.7 million static modes and 12 pre-set lighting effects.
Modular Cable Configuration: - A Modular cable management design lets you use only the cables you need. Improved airflow and save space and create a cleaner-looking build with the low-profile flat black cables.
Made For High-End Graphics Cards: - Three 8pin (6 + 2 x 2 cables) are included supporting the latest NVIDIA RTX-Series and AMD RT / RX Series GPUs. Delivers a continuous and stable power output.
Hardware Protection: - A full line up top tier circuit protections keeps your build running strong and your hardware safe - OVP (Over Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), UVP (Under Voltage Protection) & OTP (Over Temperature Protection).
Warranty: - The GameMax RGB-850 Pro PSU comes with 2-year warranty.


Specifications
Form Factor ATX
Edition RGB-850 Pro
Wattage 850 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency (at 230Vac) 90 %
Cooling Fan
Fans 1 x 140mm w/ Addressable RGB LEDs
Internal +12V Rails Single Rail
Rail 1 +12V 70 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 70 A
Modular Yes
Modularity Full Modular
SLI/CrossFire No
EPS 12V No
Motherboard Connector 20+4-pin

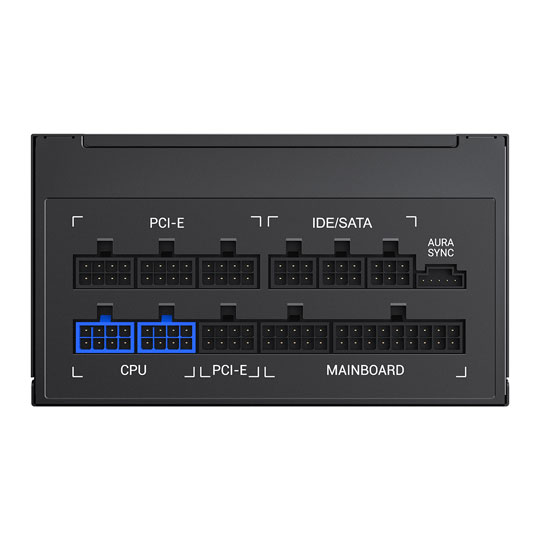

Connectors
  • 2 x 4+4-pin ATX 12V
  • 1 x 4-pin FDD Adapter
  • 3 x 4-pin Molex
  • 3 x 6+2-pin PCIe
  • 8 x SATA
Dimensions 150 x 85 x 168 mm (WxHxD)
Package Type
Warranty 2 Year
Additional Information
Scan Code LN147227
Model Number PSUGMXRGBPRO850G
GTIN 6931858724036
