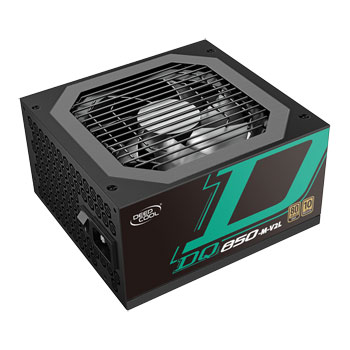

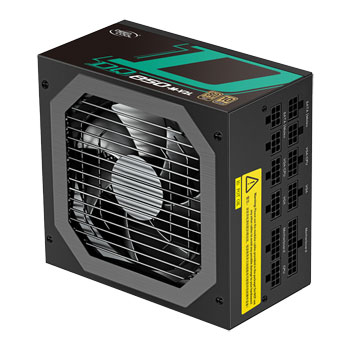

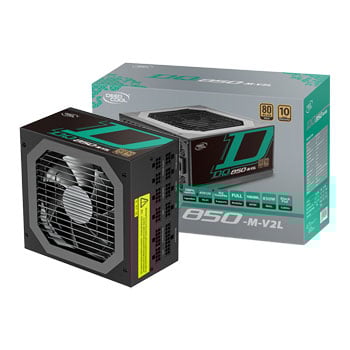

850 Watt Deepcool DQ Series Black Fully Modular PSU

850W DEEPCOOL DQ850-M-V2L Black

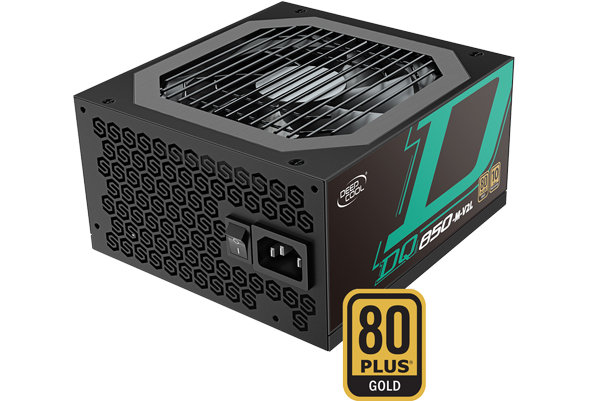

BUILT FOR TRUE EFFICIENCY The DEEPCOOL DQ850-M-V2L fully modular 850W 80 PLUS Gold power supply features 100% Japanese capacitors and high quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency, the DQ850 power supply unit offers better reliability for your PC system.

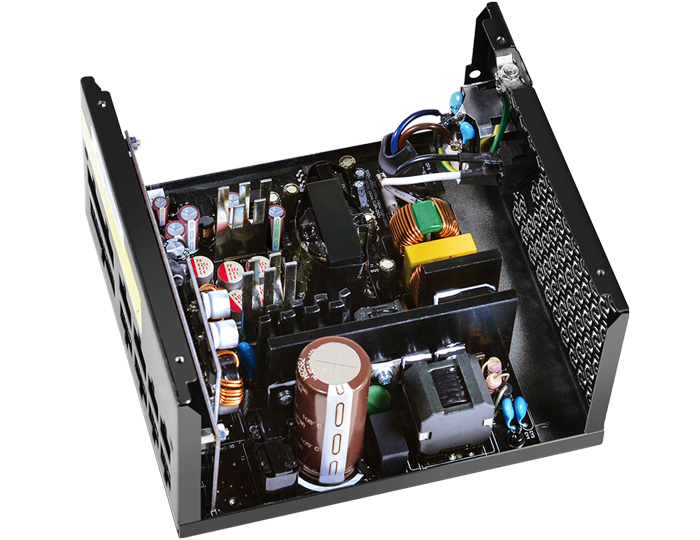

Top-Notch Design

design

increased premium quality Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ850-M-V2L delivers improved performance with lower power dissipation, quality, and better thermals to meet your needs.

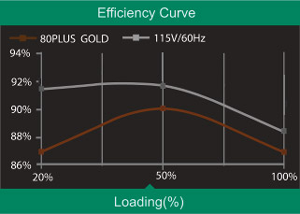

80 PLUS Gold

80 PLUS® Gold80 PLUS® Gold certified – Up to 87~90% efficient (20~100% Loading)

fan

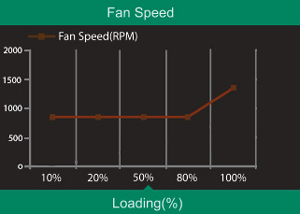

Silent and High Performance Fan120mm silent fan has temperature control function to keep low noise.

Efficient Power for a High Performance

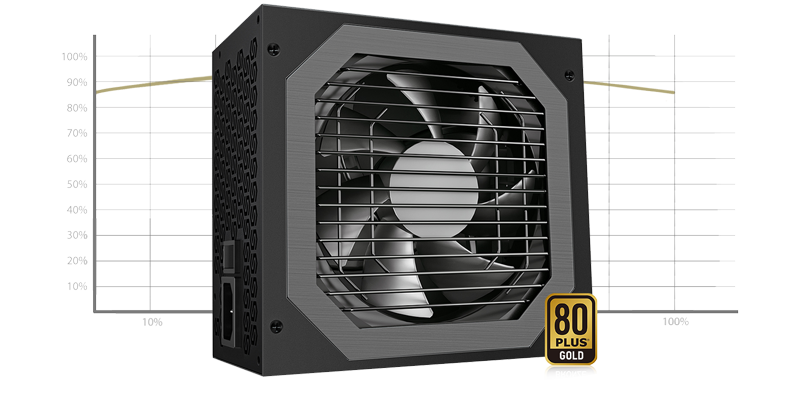

80 PLUS Gold

80 PLUS® Gold Certified Get all the power you need with a maximum 91.2% efficiency to reduce excess energy consumption and waste heat.

Fully Modular with Cables

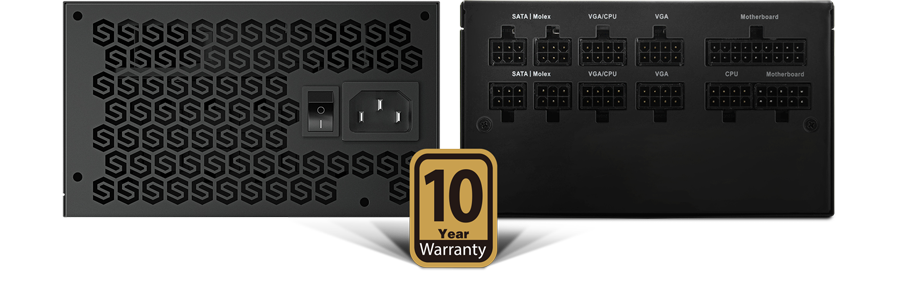

warranty

Power For Your PC Easy cable management with flat cables keep your system clean and tidy. The DQ Series also comes with a reliable 10 year warranty.

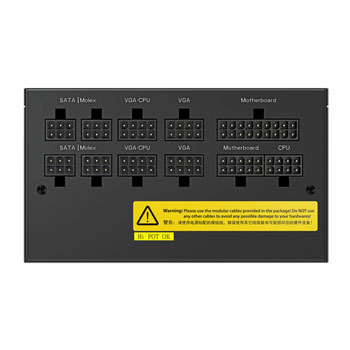

Included Cables

connectors

X1Main Power Connector 24(20+4)Pin

connectors

X2EPS 12V Connector 8(4+4)Pin

connectors

X2EPS 12V Connector (6+2)Pin x2

connectors

X1SATA x4

connectors

X34Pin Peripheral x2 & SATA x2

Specifications
Form Factor ATX
Edition DQ850-M-V2L
Wattage 850 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency (at 230Vac) 90 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 70.5 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V N/A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 2 x 4+4-pin CPU +12V (EPS)
  • 6 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 10 x SATA
Dimensions 150 x 86 x 160 (WxHxD)
Package Type Retail
Warranty 10 Year
Additional Information
Scan Code LN108131
Model Number DQ850-M-V2L
GTIN 693222559694
