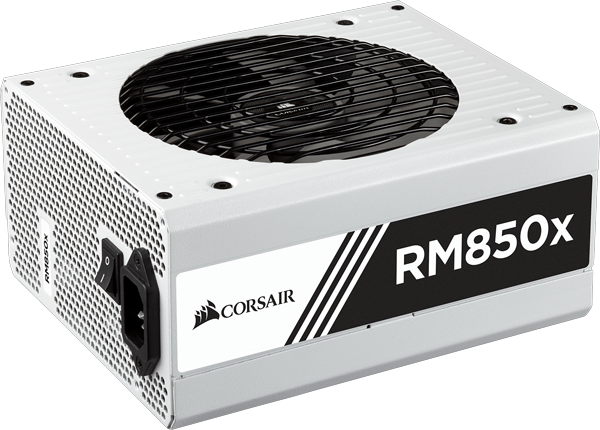

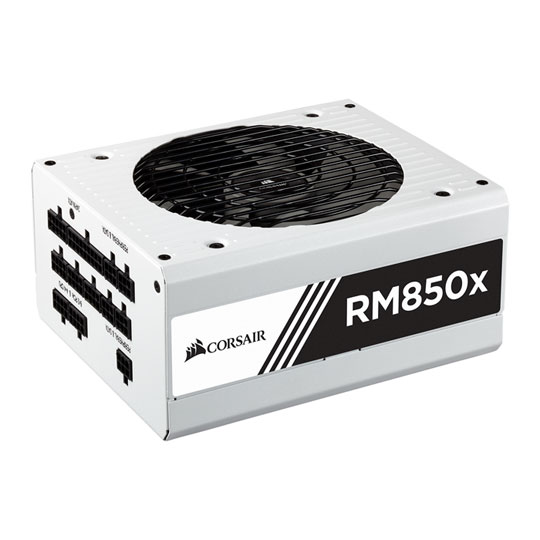

Corsair 850 Watt White RM850x Fully Modular ATX PSU/Power Supply

850W Corsair RM850x White Series, Full Modular, 80 PLUS Gold, SLI/CrossFire, Single Rail, 70.8A, 135mm Fan, ATX PSU

Corsair
Scan code: LN82411 Manufacturer code: CP-9020156-UK Request call
£149.99
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 25th Oct 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

White RM850x - Corsair Power Supply - Fully Modular ATX PSU

Corsair RM850x Power Supply - White 80PLUS - Gold

Corsair RMx 850W Power Supply

This version of the RMx White Series power supplies from corsair comes white a total power output of 850W. The RM850x gives you extremely tight voltage control with near quiet operation. The 80PLUS GOLD rating on this PSU reduces operating costs and excess heat. The Zero RPM fan mode ensures virtual silence at low and medium loads. It also features a fully modular cable set, these DC cables makes building and upgrading your PC easier and leaves it looking great.

View other RMx power outputs:
RM550x - RM650x - RM750x - RM850x - RM1000x

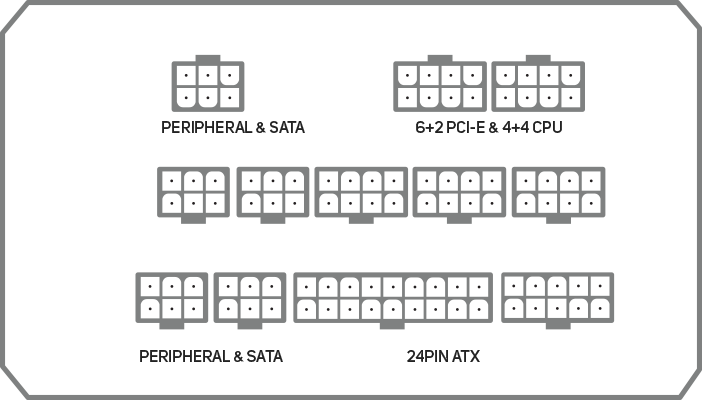

Fully Modular Connectivity

Connections

RMx Fully Modular Cable Design

The fully modular design of the RMx power supply means that during your build you can mount the PSU in the case first and then attatch only the cables you need, making builds and upgrades easy with great looking results.

RM850x Efficiency & Noise Graphs

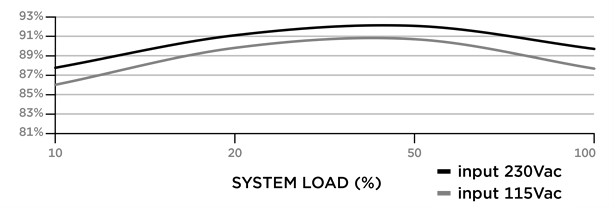

RM850x Efficiency

Efficiency Graph

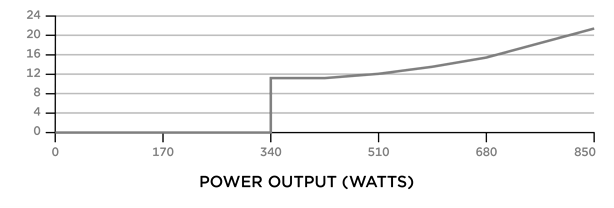

RM850x Fan Noise

Noise Graph

Corsair RM850x Output Power Chart

Corsair RM850x Fully Modular Power Supply
AC Input Rating DC Output Rating
AC Input: 100V - 240V DC Output +3.3V +5V +12V -12V +5Vsb
Current: 13A - 6.5A Max Load 25A 25A 70.8A 0.8A 3A
Frequency: 47Hz - 63Hz Maximum Combined Wattage 150W 850W 9.6W 15W
  Total Power: 850W

Corsair RM850x White Key Features

80PLUS - Gold

80 PLUS Gold CertifiedGold certification ensures high efficiency operation for less excess heat and lower operating costs.

Japanese Capacitors

Japanese 105°C capacitorsPremium internal components ensure solid power delivery and long term reliability.

Zero Fan Mode

Zero RPM Fan ModeFan doesn’t turn on until it’s needed, so you’ll enjoy virtually silent operation at low and medium loads.

10 Year Warranty

Ten Year WarrantyYour guarantee of reliable operation that will last across several system builds.

Specifications
Size ATX
Edition RM850x White Series
Wattage 850 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency 92 %
Cooling Fan
Fans 1 x 135mm
Internal +12V Rails Single Rail
Rail 1 +12V 70.8 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 70.8 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 2 x 4+4-pin CPU +12V (EPS)
  • 8 x 4-pin Molex
  • 6 x 6+2-pin PCIe
  • 2 x FDD Power
  • 10 x SATA
Dimensions 150 x 86 x 180 mm (WxHxD)
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
120 months
Type:
Return to base
RTB Period:
120 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
