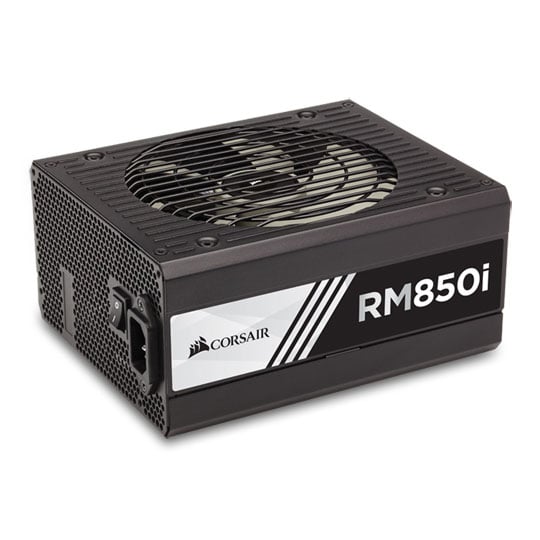

Corsair RMi Series 850W 80+ GOLD Full Modular Power Supply

850W Corsair RM850i, Full Modular, 80PLUS Gold, SLI/CrossFire, Single/Multi Rail, 70.8A, 135mm Fan, ATX PSU

Thumbnail 1 : Corsair RMi Series 850W 80+ GOLD Full Modular Power Supply Thumbnail 2 : Corsair RMi Series 850W 80+ GOLD Full Modular Power Supply Thumbnail 3 : Corsair RMi Series 850W 80+ GOLD Full Modular Power Supply Thumbnail 4 : Corsair RMi Series 850W 80+ GOLD Full Modular Power Supply Corsair RMi Series 850W 80+ GOLD Full Modular Power Supply : video thumbnail 1
Scan code: LN65076 Manufacturer code: CP-9020083-UK
review 3xs Approved
End Of Life This product is no longer available to purchase
Delivery Options
  • By DPD On 28th May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

RM850i - Corsair Power Supply - Fully Modular ATX PSU

Corsair RM850i Power Supply 80PLUS - Gold

Corsair RMi 850W Power Supply

This version of the RMi Series power supplies from corsair comes with a total power output of 850W. The RM850i gives you extremely tight voltage control with near quiet operation. The 80PLUS GOLD rating on this PSU reduces operating costs and excess heat. It also features a fully modular cable set, these DC cables makes building and upgrading your PC easier and leaves it looking great. The Zero RPM fan mode ensures virtual silence at low and medium loads. The RMi Series also features the Corsair Link Digital which makes it extremely easy to monitor the power supplies performance along with toggling single rail or multi rail modes, or controling fan speed directly from your desktop.

View other RMi power outputs:
RM650i - RM750i - RM1000i

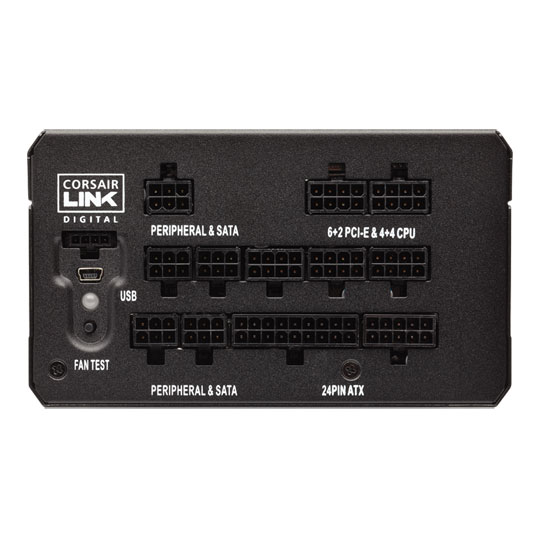

Fully Modular Connectivity

Connections

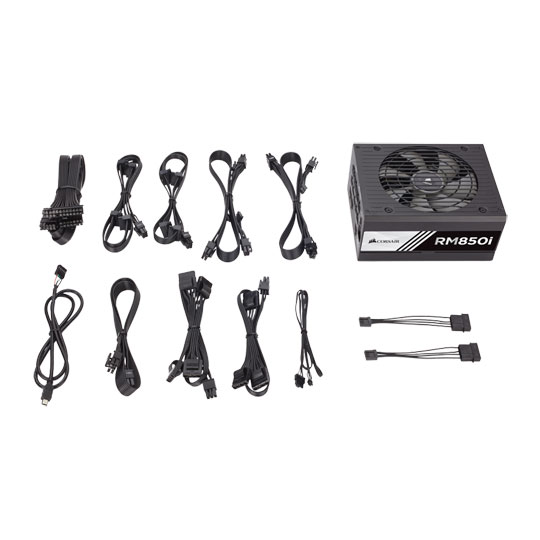

RMi Fully Modular Cable Design

The fully modular design of the RMi power supply means that during your build you can mount the PSU in the case first and then attatch only the cables you need, making builds and upgrades easy with great looking results. In addition the advanced desktop app lets you monitor and log fan speed, voltages and power consumption, as well as control and configure +12V rail operation.

RM850i Efficiency & Noise Graphs

RM850i EFFICIENCY

Efficiency Graph

RM850i FAN NOISE

Noise Graph

Corsair RM850i Output Power Chart

CORSAIR RM850i DC OUTPUT - SINGLE +12V RAIL MODE
DC Output +3.3V +5V +12V -12V +5Vsb
Max Load 25A 25A 70.8A 0.8A 3A
Maximum Combined Wattage 150W 850W 9.6W 15W
Total Power: 850W
CORSAIR RM850i DC OUTPUT - MULTIPLE +12V RAIL MODE
DC Output +3.3V +5V +12V1 +12V2 -12V3 +12V4 +12V5 +12V6 +12V7 -12V8 +12V +5VSB
Max Load 25A 25A 40A 40A 40A 40A 40A 40A 40A 40A 0.8A 3A
Maximum Combined 150W 850W 9.6W 15W
Total Power: 850W

Corsair RM850i Key Features

80PLUS - Gold

80 PLUS Gold CertifiedGold certification ensures high efficiency operation for less excess heat and lower operating costs.

Japanese Capacitors

Japanese 105°C capacitorsPremium internal components ensure solid power delivery and long term reliability.

Zero Fan Mode

Zero RPM Fan ModeFan doesn’t turn on until it’s needed, so you’ll enjoy virtually silent operation at low and medium loads.

10 Year Warranty

Configurable +12V RailIt’s your choice – run it in the default multi-rail +12V mode, or toggle single-rail operation.
