Ubiquiti Pro XG 8 PoE UniFi 8 Port Layer 3 Etherlighting Switch

Ubiquiti UniFi Pro XG 8 PoE Switch

The Ubiquiti UniFi Pro XG 8 PoE Switch (USW-Pro-XG-8-PoE) is a professional-grade, compact Layer 3 switch designed to deliver high-speed connectivity and robust power delivery in space-constrained environments. With eight 10GbE PoE++ RJ45 ports and two 10G SFP+ uplinks, it provides versatile networking solutions for small offices, home labs, and edge deployments. With a total PoE budget of 155W, it can easily support power-hungry devices like Wi-Fi 6E access points, PTZ security cameras, and VoIP systems—all without the need for separate power infrastructure. Its desktop-friendly, wall-mountable chassis makes it a versatile fit for both open office environments and discreet IT closets, while the integrated Layer 3 routing capabilities allow for more efficient network segmentation, traffic control, and reduced latency across VLANs. Backed by Ubiquiti's robust UniFi ecosystem, the Pro XG 8 PoE delivers the power, flexibility, and performance needed to scale your network with confidence.

Layer 3 Switching Capabilities

The Pro XG 8 PoE supports Layer 3 routing, enabling inter-VLAN communication and static routing. This functionality enhances network segmentation and traffic management, reducing the need for additional routing hardware and simplifying network architecture.

Compact and Versatile Design

Measuring 210.4 x 173.8 x 43.7mm, the switch's compact form factor allows for desktop placement or wall mounting, making it ideal for environments where rack space is limited.

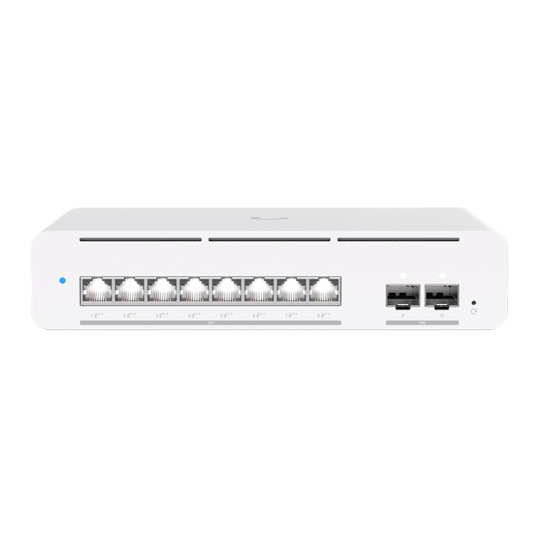

8 x 10GbE PoE++ RJ45 Ports

Each of the eight RJ45 ports supports 10GbE speeds and PoE++ (802.3bt) with a maximum per-port power output of up to 60W. This enables direct powering of high-demand devices such as Wi-Fi 6/6E access points, PTZ cameras, and other PoE-intensive equipment.

155W Total PoE Budget

The switch offers a total PoE power budget of 155W, allowing for flexible deployment of multiple PoE devices. For instance, it can power up to two devices at full 60W, or a combination of devices with varying power requirements, as long as the total does not exceed 155W.

2 x 10G SFP+ Uplink Ports

In addition to the RJ45 ports, the switch includes two 10G SFP+ ports for high-speed fibre uplinks, facilitating seamless integration into existing network infrastructures and enabling scalable network expansion.

Etherlighting Technology

Ubiquiti's proprietary Etherlighting technology offers advanced port status indicators and diagnostics, simplifying network management and troubleshooting. This feature enhances visibility into network performance and aids in rapid issue resolution.

• Dimensions: 210.4 x 173.8 x 43.7mm.
• Port Layout:
8 x 10GbE RJ45 (All PoE++).
2 x 10G SFP+.
• Total PoE Budget: 155W.
• Switching Capacity: 200 Gbps.
• Non-Blocking Throughput: 100 Gbps.
• Forwarding Rate: 149 Mpps.
• MAC Address Table Size: 32,000 entries.
• VLAN Support: 1,000 VLANs.
