TP-LINK 4 Port PoE and 8 Port 10/100 Network Switch

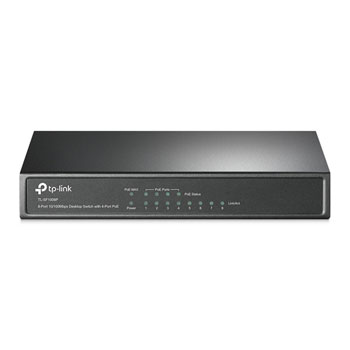

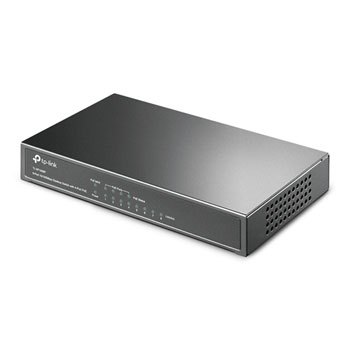

8 Port TP-LINK TL-SF1008P 10/100Mbps Desktop Switch with 4-Port Power over Ethernet (PoE)
By DPD On 7th Jul
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
TL-SF1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Port Priority Function
Priority (port-1>port-2>port-3>port-4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are using 15.4w (maximum power per port is 15.4W), the system power is 46.2w in total (PoE max LED is red ). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system, this means Port 1, 2 will use 15.4w, and Port3 will use 10w, and no power will be supplied to Port 4.
Easy To Use
TL-SF1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-LINK TL-SF1008P8-Port 10/100Mbps Desktop Switch with 4-Port PoE is a great selection for expanding your home or office network. Features • Complies with IEEE802.3, IEEE802.3u, IEEE802.3af standards
• 1K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging

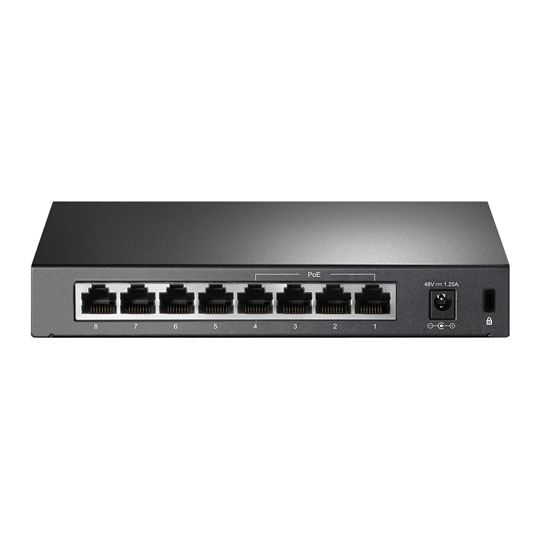

• 8 10/100Mbps Auto-Negotiation RJ45 ports with 4-port PoE function (port-1 to port-4), all of them support Auto MDI/MDIX
• Supports PoE power up to 15.4W for each PoE port
• Supports PoE power up to 53W for all PoE ports
• Supports PoE IEEE 802.3af compliant PDs
• Supports IEEE802.3x ow control for Full-duplex Mode and backpressure for Half-duplex Mode
• Supports priority function to protect the system when the system power is overloaded
• LED indicators for monitoring power, link, activity and speed
• External power adapter supply
|Total Network Ports||4 x Fast Ethernet 10/100|
|PoE Support Type|
|No. of Ports Providing PoE||4 x Fast Ethernet 10/100|
|Other Non-Network Ports|
|MAC Address Table Size|
|Built-in Flash Memory|
|Max. Power Consumption||58.8 W|
|Max. PoE Wattage per Port|
|Mean Time Between Failures (MTBF)|
|Dimensions (WxHxD)||171 x 27 x 98 mm|
