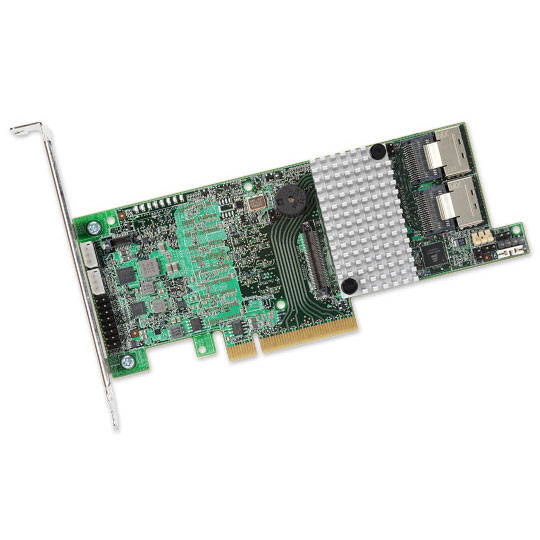

LSI LSI00330 8-Port SAS+SATA PCI Express Adaptor Card

8 Port LSI MegaRAID SAS 9271-8i SGL 6Gb/s SATA+SAS, PCIe 3.0, 1GB DDRIII

LSI
Scan code: LN47636 Manufacturer code: LSI00330 Request call
£557.99
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
3xs Approved High End
Delivery options £5.48 By DPD On 6th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview LSI MegaRAID SAS 9271-8i SGL features Second generation 6Gb/s SATA+SAS with unprecedented levels of performance. Designed for internal storage environments using up to 128 SAS, SATA and solid state drives (SSDs).


Data Sheet Features • Eight internal SATA+SAS ports.
• Two mini-SAS SFF-8087 x4 connectors – side mount.
• 6Gb/s throughput per port.
• MD2 Low profile (6.6" X 2.536").
• x8 PCI Express 3.0 host interface.
• 1GB DDRIII cache (1333MHz).
Specifications
Specifications
Ports Total 8 Port
Ports Internal 8 Int Ports
Ports External
Connectors 2 x SFF-8087
Interface PCIe 3.0 x8
JBOD No
RAID Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
  • RAID 50
  • RAID 6
  • RAID 60
Low Profile Compatible Yes
Cables Inc.
Cache Memory 1GB
Notes
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
