HighPoint Rocket 1108A M.2 NVMe HBA PCIe Gen3 Storage Solution Card

High-Performance 8-Channel M.2NVMe Connectivity Solution for PCIe Gen3 Platforms

R1000 Series NVMe HBAs are fully independent, stand-alone NVMe storage solutions for PCIe Gen3 platforms; they are not tied to a specific motherboard, chipset or operating system, can be easily integrated into any motherboard or server/workstation platform with a free PCIe 3.0/4.0 x16 or x8 slot, and are capable of supporting off-the-shelf M.2 NVMe SSDs of any capacity.

The Rocket 1108A is the industry's fastest PCIe Gen3 NVMe connectivity HBA. The eight independent device ports can support off-the-shelf 2242/2460/2280 M.2 SSDs of any capacity.

Built-in High-speed, Intelligent Switch Chipset

The Rocket 1108A NVMe HBA's performance-focused hardware architecture leverages intelligent PCIe switch technology to ensure maximum transfer bandwidth is available for each device port, at all times. Up to x4 lanes of host bandwidth are allocated to each M.2 NVMe SSD, as needed.

Native, In-Box NVMe Device Driver Support

HighPoint NVMe HBAs were designed with simplicity in mind. All you need is a little patience and a screwdriver; just install the M.2 SSD's and plug in the card!

Rocket 1000 Series HBAs are natively supported by all major Windows and macOS operating system platforms, and current distributions of Linux.

You won't need to juggle a series of device drivers, install a complex software suite, or master a specialized management interface. Your NVMe SSDs will be automatically recognized, and can be prepped and mounted using the operating system's standard tool set.

Ultra-Efficient, Low-Noise Active Cooling Solution

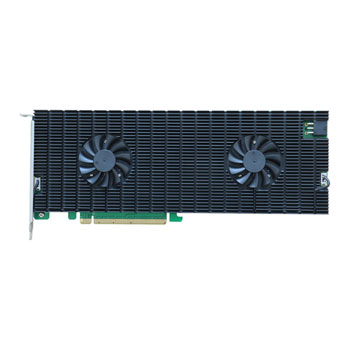

Designed to mitigate the risk of thermal throttling, the Rocket 1108A's advanced cooling system rapidly transfers waste heat away from critical NVMe and controller componentry to ensure M.2 SSDs consistently operate within their recommended temperature thresholds, even under sustained heavy I/O. The full length anodized aluminium heat sink is equipped with a pair of ultra-durable near-silent fans, and high-conductivity thermal pads.

Supports Any Off- The-Shelf M.2NVMe SSD

Rocket 1000 series M.2 ports are capable of supporting any industry standard off the shelf M.2 NVMe SSD
NAND Form Factor: Single & Double-Sided
M.2 Form Factor: 2280, 2260, 2242

Low-Noise Hyper Cooling Solution

The Rocket 1108A employs our new ultra efficient, Hyper-Cooling solution designed specifically for large M.2 configurations. The Hyper-Cooling system combines a high-conductivity thermal pad with anodized aluminium heatsink equipped with dual built-in, low noise fans. This design ensures the M.2 SSDs, NVMe chipset and RAID componentry remain cool, even under heavy load, while minimizing the risk of distraction in the work environment.

• Up to 8 NVMe SSDs.
• PCIe 3.0 x16 Host Interface.
• Fully compliant with Industry standard PCIe 3.0 Slots; noBifurcation dependency or need for a specific brand/model of motherboard.
• Integrated, High-Performance, Intelligent PCIe Switch technology allocates up to x4 lanes to each M.2 Slot.
• Native, in-box NVMe driver support for all major OS platforms.
• Broad Compatibility with current computing platforms: HP, Dell, Legacy Mac Pro, 2019 Mac Pro, 2023 Mac Pros , Apple M1 Platforms, M2 platforms.
• Low-Noise, Hyper Cooling Solution.
