Aten VS0801H 8-Port FullHD HDMI Switch
8-Port Aten VS0801H HDMI Switch, 1920 x 1080, Auto Switching, Plug-and-Play, HDCP 1.4, Bi-Directional RS-232, White
- SCANPROTECT Protect against installation damage for 28 days. More info
ATEN VS0801H 8-Port HDMI Switch
With more and more HDMI devices entering the Home Theatre market, the need for simultaneous access to different HDMI A/V sources is becoming increasingly important. Now, the VS0801H 8-port HDMI Switch offers an easy and affordable way to add HDMI capabilities to your home theatre system by allowing you to switch easily between up to eight HDMI A/V sources (such as an HD camcorder or satellite box, HD-DVD player, hi-def Blu-ray player, home theatre PC, stand-alone streaming media player, gaming console, etc.) that are connected to your HDMI display.

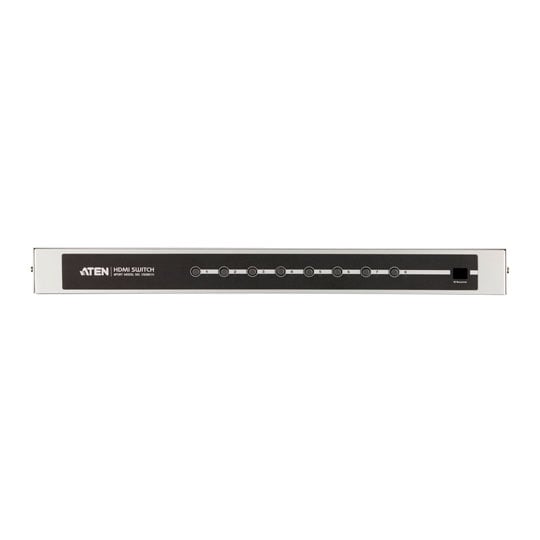

The remote control and convenient front panel pushbuttons allow you to quickly and easily toggle between HDMI sources, while the front panel LEDs indicate the source device at a glance. Furthermore, for complete system and install integration, RS-232 control is standard through the VS0801H's built-in bi-directional RS-232 serial remote port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theatre software package.
• Allows up to eight HDMI sources to be connected to one HDMI display.
• Quick and easy switching between HDMI sources via front panel pushbuttons or IR remote control.
• Built-in bi-directional RS-232 serial port for high-end system control.
• Supports Dolby True HD and DTS HD Master Audio.
• Up to 60 Hz refresh rate.
• Long-distance transmission - up to 15 m (24 AWG).
• Superior video quality - HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA, and WUXGA (1920x1200).
• HDMI (3D, Deep Colour).
• Plug-and-play - no software installation required.
• DDC compatible.
• HDCP 1.4 compatible.
• Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control.
• Signalling rates up to 2.25 Gbps in support of 1080p display.
• All-metal casing.
• Power On Detection - if one of the HDMI source devices is powered off, the VS0801H will automatically switch to the next powered on device.
• Easy and affordable way to add eight HDMI inputs to your home theatre system.
• Rack Mountable.
