End Of Life Sale

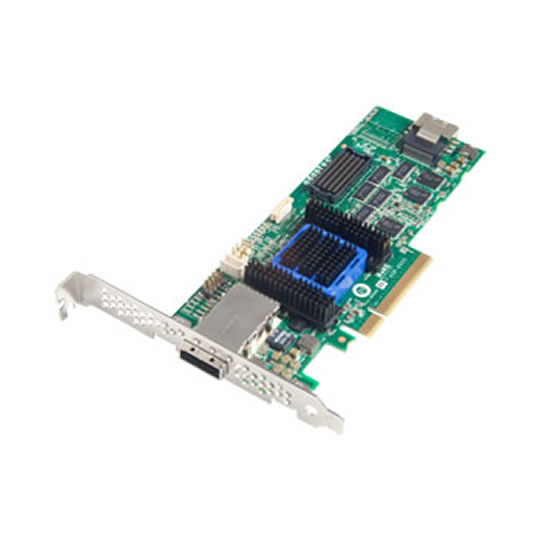

Adaptec 2270200-R RAID 6445 SATA/SAS Controller

8 Port Adaptec RAID 6445 Single, 4 Internal Ports, 4 External Ports, SATA/SAS Controller

Adaptec
Scan code: LN44694 Manufacturer code: 2270200-R Request call
End Of Life
High End
Product Overview The Series 6 family of high-performance Adaptec Unified Serial® (SATA/SAS) RAID controllers offers maximum performance, scalability and flexibility. With the enhanced bandwidth of its 6 Gb/s SAS 2.0 interfaces and the PCIe Gen 2 host connection it offers up to 60% higher sustained sequential throughput than previous generation controllers

Based on PMC-Sierra's market-leading, multi-core SRC 8x6G RAID-on-Chip (RoC) the Adaptec RAID 6805 can deliver up to 2 GB/s sustained data transfer rate to the host. Peak performance is up to 4.8GB/s through the SAS 2.0 interfaces and 4.0GB/s through the PCIe Gen 2 host interface. Using SAS expanders, it can connect up to 256 SATA/SAS.

The Adaptec RAID 6445 supports a broad range of operating systems, compatibility with more than 300 third-party devices, and full integration with Adaptec Storage Manager™ for centralized management of all Adaptec RAID controllers on the network. Features 6 Gb/s throughput at each port
PMC-Sierra PM8013 Dual Core RAID on Chip (ROC)
SAS 2.0 interfaces and PCIe Gen 2 Host Connection
4 internal port and four external port low-profile MD2
Supports up to 256 SATA or SAS devices
Enclosure management support via LED header and SES2/ SGPIO
Intelligent Power Management – Reduces power and cooling costs by as much as 70%
Adaptec Flash Module 600 (AFM-600): Zero-Maintenance Cache Protection with 4GB NAND flash (separate Kit):
– No data loss from power failures: Replaces lithium ion batteries
– Low Operating Costs: No installation, monitoring, maintenance, disposal or replacement costs due to batteries
– Maintenance-free cached data protection
–Instant RAID cache protection
–Environmentally conscious
– No toxic battery disposal
– Simplified IATA compliance
Hybrid RAID 1 & 10: SSD + HDD for Maximum Performance and Reliability
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Direct
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Telephone:
0871 472 4747
