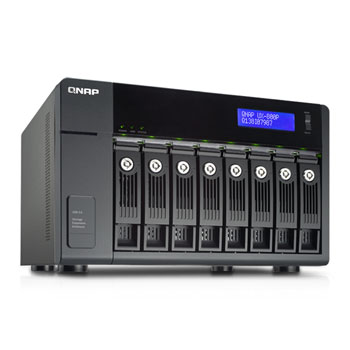

Qnap UX-800P 8 Bay Turbo NAS Expander Box/Unit

8 Bay Qnap UX-800P Desktop NAS Expansion Unit for Turbo NAS Boxes, 2.5"/3.5" SATA3, USB 3.0 Type-B

Scan code: LN59251 Manufacturer code: UX-800P Request call
£645.49Item currently awaiting an ETA
Pre order
Pay on Scan Finance with a 10% deposit from just £16.12 / month (APR 15.9%)
High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview The Most Economical Way To Expand Your Turbo NAS Storage
When expanding data storage capacity, deploying multiple servers can lead to complexity in management and dramatically increased cost. The QNAP UX-800P expansion enclosure is a budget-friendly expansion alternative designed with easy setup in mind for expanding the total storage space of your Turbo NAS for general applications. By connecting one expansion enclosure, the UX-800P offers a hassle-free storage expansion for home/small office use. The UX-800P provides additional 8 hard drives for the Turbo NAS and allows for a total expansion raw capacity of 64 TB* making it especially useful for data backup, digital media collection, and video surveillance.

Easily Add Additional Drive Capacity To A Turbo NAS
Simply connect the UX-800P to a Turbo NAS* and power it on. The Turbo NAS will automatically detect the hard drives in the UX-800P as newly installed local drives. The Turbo NAS capacity can then be expanded as a large volume seamlessly and economically by using the powerful QTS Storage Manager.
*QTS 4.1.0 or newer is required for the Turbo NAS.

Missing Mode Protection
If your UX-800P is accidentally disconnected, the Turbo NAS enters missing mode and blocks I/O access to protect the stored data. The system can then recover from the missing mode to the normal state with data staying intact.

Powerful QTS Storage Manager
The QTS Storage Manager neatly presents tools and options for managing system storage with a modern & intuitive graphical user interface, which greatly simplifies the process of NAS capacity expansion and UX-800P management. No matter if you are an IT administrator or Home user, you can easily monitor the health status of UX-800P and the disks within it. When multiple expansion enclosures are connected, the Locate Disk and Locate Enclosure functions assist you in quick maintenance*.
*Not applicable to TS-x51 & TS-x53 Pro & TS-x53S Pro series.

Flexible RAID Configuration
The UX-800P features 8 hot-swap drive bays for easy installation and removal. The automatic insertion/removable detection and rebuild allow easy management. Featuring RAID 0, 1, 5, 6 and 10 support and managed by the powerful QTS Storage Manager, the UX-800P ensures maximum performance and data security.

An Excellent Backup Solution For Turbo NAS
The UX-800P can be used as a budget-friendly external storage to perform speedy and secure backup tasks for the Turbo NAS. The administrator can back up the Turbo NAS data to the UX-800P on a real time or scheduled basis.

Smart Power Design
The UX-800P automatically powers on and off with your Turbo NAS, allowing for total convenience and energy saving.

Excellent Hardware Design
The UX-800P includes a full 350W internal PSU to provide ample power even under sustained full load. The well-ventilated chassis and smart fan helps to provide efficient cooling for better stability and reliability, with the fan enabling efficient heat removal even when all 8 drives are under full operation simultaneously. Features • Easily add additional drive capacity to a Turbo NAS.
• Missing mode protection.
• Flexible RAID Configuration by QTS Storage Manager.
• An excellent backup solution for Turbo NAS.
• Smart power design.
• Excellent hardware design.

Supported Turbo NAS models

2 Bay
• TS-253A, TS-251+, TS-253 Pro, TS-251, HS-251+, HS-251

4 Bay
• TS-453A, TS-451+, TS-453mini, TS-453 Pro, TS-451, TS-453S Pro, TVS-463, TVS-471

5 Bay
• TS-531P, TS-563

6 Bay
• TS-653A, TS-653 Pro, TS-651, TVS-682T, TVS-682, TVS-663, TVS-671

8 Bay
• TS-853A, TS-853 Pro, TS-853S Pro, TS-851, TVS-863, TVS-863+, TVS-871, TS-831X

12 Bay
• TVS1282T, TVS-1282

Please note: A separate volume should be created on the UX-800P after it is connected to the TS-x51, TS-x53 Pro, TS-x53S Pro series.
NAS Form Factor Desktop
Bays 8 Bay
Storage (Included) N/A
Max. Storage Capacity 64 TB
HDD Interface 8 x SATA III - 6Gb/s
HDD Form Factor 8 x 3.5"/2.5"
Internal Flash Memory No
Internal Flash Memory Capacity
DOM Module No
DOM Capacity
CPU Model
CPU Speed
RAM Memory Included
RAM Memory Type
Max. RAM Memory Supported
Cache Drive Interface
Included Cache Drive Capacity
Included Cache Drive Type
LAN Type 10/100/1000
Expansion Slots
External Connectivity 1 x USB 3.0 Type-B
Cooling Fan
Noise Level 25.9 dB(A)
PSU Type Internal
PSU Wattage 350 W
Max. Power Consumption 51.77 W
Dimensions 298.2 x 185.2 x 235.4 (WxHxD mm)
Weight 7.3 kg
