FOCUS GX ATX3 750 Watt Fully Modular 80+ Gold Power Supply from Seasonic

GX ATX3

providing efficient power Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series has been upgraded to comply with the ATX 3.1 and PCIe 5.1 standards. It offers a complete range of power supplies from 750W to 1000W, all within a compact 140mm depth. Each unit features a 135mm fan, a 12V-2×6 cable, and new OptiSink technology. These units are designed to be perfect allies in powering the latest high-power graphics cards and processors available on the market.

750WWattage

80 PLUS GoldEnergy Efficiency Certification

ATX 3.0Form Factor

Digital Hybrid Fan Control

Digital Hybrid Fan Control

silence and cooling, balancedThe industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Digital Hybrid Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.

Reduced noise

Reduced noise without increase in temperature.

Extended fan life

Extended fan life due to the reduced number of fan rotations.

Optimal heat dissipation

Optimal heat dissipation ensured at all times, further enhanced with OptiSink technology.

Fanless Mode

Unsurpassed silent performance in Fanless Mode.

Seasonic OptiSink Design

PCB

streamlined airflowThe overall quality and reliability of the FOCUS Series has been greatly improved by a brand-new PCB (Printed Circuit Board) layout and the implementation of automated surface mount technology during production, which minimizes human production errors.
By using a redesigned PCB combined with smaller MOSFET and heat sink components, the internal space within the power supply was increased to enhance heat dissipation and airflow to result in better component cooling.
The eightfold increase in heat dissipation keeps the internals of the power supply cooler, eventually leading to improved product quality, long-term reliability, and more efficient operation.
The redesigned layout of the power supply components and its improved thermal performance creates versatility and allows the power supply to be safely installed in any orientation.
The OptiSink design is an eco-friendly solution that not only lowers the costs of material usage and production but also leads to energy savings in the long run.

Specifications
Form Factor ATX 3.0
Edition FOCUS GX ATX3 (2024)
Wattage 750 W
Energy Efficiency Certification 80 PLUS Gold
Max. Efficiency (at 230Vac) 90 %
Cooling Fan
Fans 1 x 135mm
Internal +12V Rails Single Rail
Rail 1 +12V 62 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 62 A
Modular Yes
Modularity Full Modular
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 20+4-pin

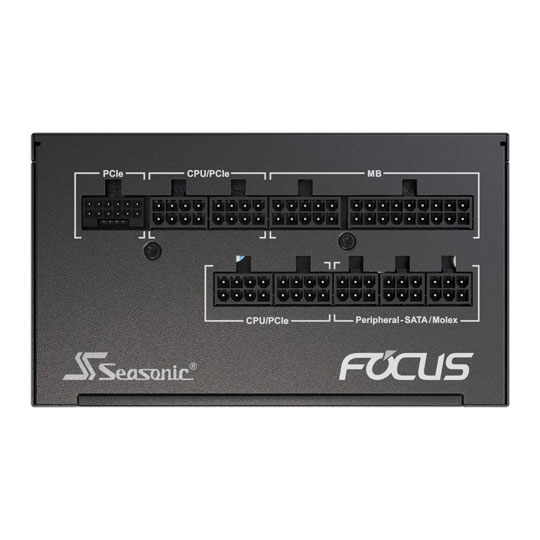

Connectors
  • 1 x 12VHPWR
  • 1 x 4+4-pin CPU +12V (EPS)
  • 3 x 4-pin Molex
  • 1 x 8-pin PCIe
  • 4 x SATA
Dimensions 150 x 86 x 140 (WxHxD)
Package Type Retail
Warranty 10 Year
Additional Information
Scan Code LN152046
Model Number FOCUS-GX-750-V4
GTIN 4711173878445
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
120 months
Type:
Return to base
DOA Period:
30 days
RTB Period:
12 months
