Scan code: LN94346 Manufacturer code: CP-9020186-UK

Corsair SF750 750 Watt Fully Modular Platinium SFX PSU/Power Supply

750W Corsair SF750, Full Modular, 80 PLUS Platinum, SLI/CrossFire, Single Rail, 62.5A, 92mm Fan, SFX (w/ATX Bracket) PSU

Thumbnail 1 : Corsair SF750 750 Watt Fully Modular Platinium SFX PSU/Power Supply Thumbnail 2 : Corsair SF750 750 Watt Fully Modular Platinium SFX PSU/Power Supply Thumbnail 3 : Corsair SF750 750 Watt Fully Modular Platinium SFX PSU/Power Supply Thumbnail 4 : Corsair SF750 750 Watt Fully Modular Platinium SFX PSU/Power Supply Corsair SF750 750 Watt Fully Modular Platinium SFX PSU/Power Supply : video thumbnail 1
Scan code: LN94346 Manufacturer code: CP-9020186-UK
£129.98Item overdue since 04 January 2019
Pre order
From £11.67 / month (APR 14.9%)
Monthly Payment: £22.56
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £129.98
Total inc. interest: £135.33
Monthly Payment: £11.67
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £129.98
Total inc. interest: £140.02
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Corsair SF750 - 80 PLUS Platinum Fully Modular SFX PSU

750X

Choose the SF750 for unprecedented power in your next small form factor PCThe CORSAIR SF750 80 PLUS Platinum SFX Power Supply is an extraordinarily power-dense PSU, ready to power the most cutting-edge small form factor PCs with 750 continuous watts. 80 PLUS Platinum certification makes it an ultra-efficient power supply that creates less heat and lower electric bills. A large 92mm fan provides industry-leading performance with minimal noise thanks to a Zero RPM mode that only activates at higher loads. Fully modular, individually-sleeved cables allow you to maximize space and improve airflow inside your PC whilst 105°C rated Japanese capacitors and premium electrical components ensure superior performance for years of stable and dependable operation.

This PSU is also available in the 600W version :

SF 600W

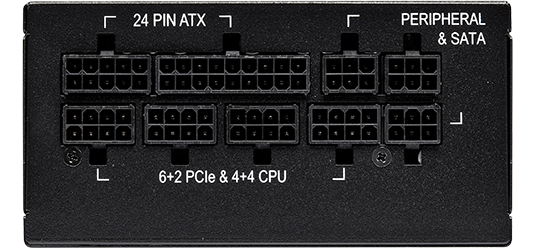

Fully Modular Connectivity

connections

KEEP YOUR BUILD LOOKING CLEAN The fully modular design of the SFX power supply means that during your build you can mount the PSU in the case first and then only connect the cables you need, making builds and upgrades easy with great looking results. Simply connect the cables you need and keep the rest safe for future upgrades.

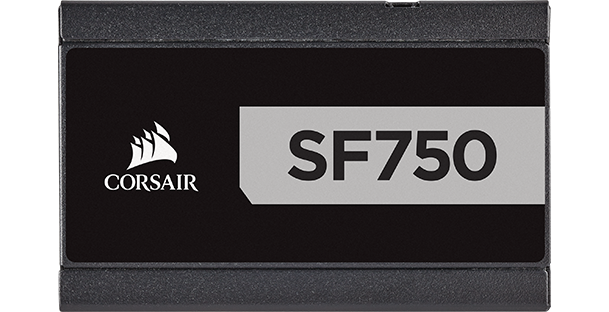

Compact SFX Form-Factor

compact

SEVEN-YEAR WARRANTY A 125mm-long casing ensures an easy fit in almost all modern enthusiast PC cases. Your guarantee of reliable operation that will last across several system builds.

Individually Sleeved Modular Cables

modular

make cable management a breeze Only connect the cables your system needs, making clean and tidy builds easier whilst improving airflow. SF PLATINUM Series power supplies come equipped with premium individually sleeved cables featuring a flexible paracord sleeve, ready to become part of your new high-end PC.

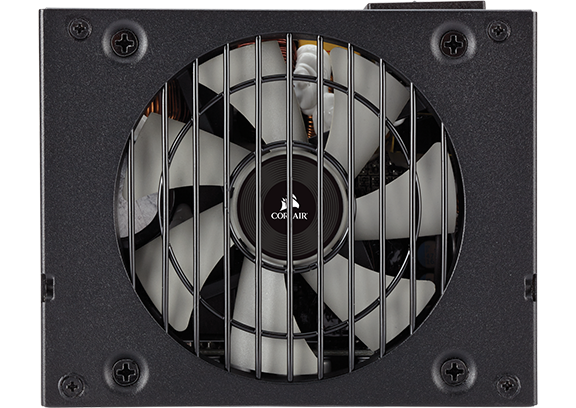

Powerful Cooling with low-noise Operation

compact

92mm PWM Cooling Fan The SF PLATINUM Series upgrades the SFX-standard 80mm fan to a large 92mm. This reduces noise and improves cooling performance at demanding loads.

SFX-to-ATX Bracket Included

modular

SF SERIES POWER SF PLATINUM Series power supplies include an SFX-to-ATX power supply adapter bracket that allows installation into any ATX compatible case. The new bracket offsets the mounting location, allowing for more space inside any standard ATX chassis, so you can tuck your excess cables out of the airflow path.

Corsair SF750 Key Features

Corsair Quality

80PLUS - Gold

80 PLUS PLATINUM CertifiedPlatinum certification ensures high efficiency operation for less excess heat and lower operating costs.

Japanese Capacitors

Japanese 105°C capacitorsPremium internal components ensure solid power delivery and long term reliability.

lownoise

Zero RPM Fan ModeFan doesn’t turn on until it’s needed, so you’ll enjoy virtually silent operation at low and medium loads.

Specifications
Size SFX - with ATX adapter bracket
Edition SF750
Wattage 750 W
80 PLUS Certification 80 PLUS Platinum
Max. Efficiency (at 230Vac) 94 %
Cooling Fan
Fans 1 x 92mm
Internal +12V Rails Single Rail
Rail 1 +12V 62.5 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 62.5 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 24-pin
Connectors
  • 2 x 4+4-pin ATX 12V
  • 3 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 8 x SATA
Dimensions 125 x 63.5 x 100 (WxHxD)
