Corsair SF600 600 Watt Fully Modular 80+ Platinum PSU/Power Supply

600W Corsair SF600, Fully Modular, 80 PLUS Platinum, SLI/CrossFire, Single Rail, 50A, 92mm Fan, SFX PSU

MORE INFO

Thumbnail 1 : Corsair SF600 600 Watt Fully Modular 80+ Platinum PSU/Power Supply

Thumbnail 2 : Corsair SF600 600 Watt Fully Modular 80+ Platinum PSU/Power Supply

Thumbnail 3 : Corsair SF600 600 Watt Fully Modular 80+ Platinum PSU/Power Supply

Corsair SF600 600 Watt Fully Modular 80+ Platinum PSU/Power Supply : video thumbnail 1

Corsair SF600 600 Watt Fully Modular 80+ Platinum PSU/Power Supply : image 1

zoom

Corsair SF600 600 Watt Fully Modular 80+ Platinum PSU/Power Supply : image 2

zoom

Corsair SF600 600 Watt Fully Modular 80+ Platinum PSU/Power Supply : image 3

zoom

Scan code: LN90157 Manufacturer code: CP-9020182-UK

Share Facebook Twitter Google Reddit Pinterest LinkedIn

£119.99Item due on 01 March 2021

Pre Order

Due 1st Mar

From £10.78 / month (APR 14.9%)

Monthly Payment:	£10.78
Instalment Rate:	14.9% p.a. (fixed)
Cost of purchase:	£119.99
Total inc. interest:	£129.28

If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.

Delivery Options

By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Collect instore Collect from our Bolton store, BL6 6PE | Free

Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store | £4.79

Collect your parcel from your newsagents, petrol stations and convenience stores

Services

SCANPROTECT Protect against installation damage for 28 days. More info

ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Share Facebook Twitter Google Reddit Pinterest LinkedIn WhatsApp

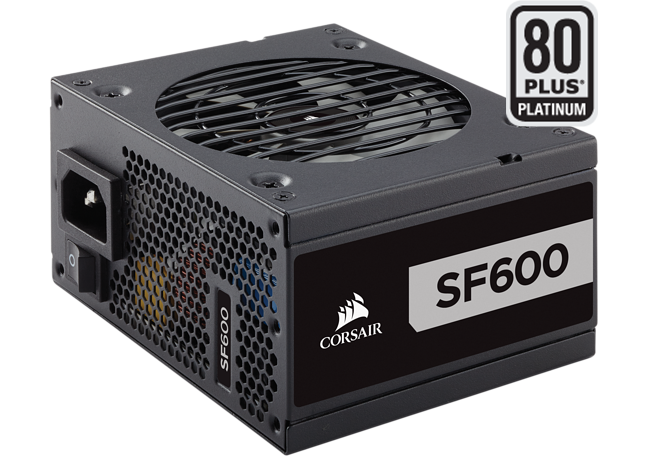

SF600 - Corsair Power Supply - Fully Modular Silent SFX PSU

Corsair SFX 600W Power SupplyCORSAIR SF Series SFX power supplies offer all the performance of an elite 80 PLUS Platinum efficient PSU, in a small form factor ready to power your high performance PC. Fully modular braided cables allow you to maximize space and improve airflow inside your PC by only using those you need, for a show-ready system that’s ready to turn heads. 105°C rated Japanese capacitors and premium electrical components ensure superior performance for years of stable and dependable operation, while a low-noise 92mm cooling fan equipped with a zero-RPM mode, ensures cool and quiet operation. Compact, quiet and built to perform, the SF Series is the perfect choice to power the world’s best small form factor PCs.

Fully Modular Connectivity

KEEP YOUR BUILD LOOKING CLEAN The fully modular design of the SFX power supply means that during your build you can mount the PSU in the case first and then attatch only the cables you need, making builds and upgrades easy with great looking results. Simply connect the cables you need and keep the rest safe for future upgrades.

Compact Size

SEVEN-YEAR WARRANTY A 125mm-long casing ensures an easy fit in almost all modern enthusiast PC cases. Your guarantee of reliable operation that will last across several system builds.

Completely Modular

Individually Sleeved Cables Only connect the cables your system needs, making clean and tidy builds easier whilst improving airflow. SF PLATINUM Series power supplies come equipped with premium individually sleeved cables featuring a flexible paracord sleeve, ready to become part of your new high-end PC.

Upgraded Cooling Fan

92mm Cooling Fan The SF PLATINUM Series upgrades the SFX-standard 80mm fan to 92mm, reducing noise and improving performance at demanding loads.

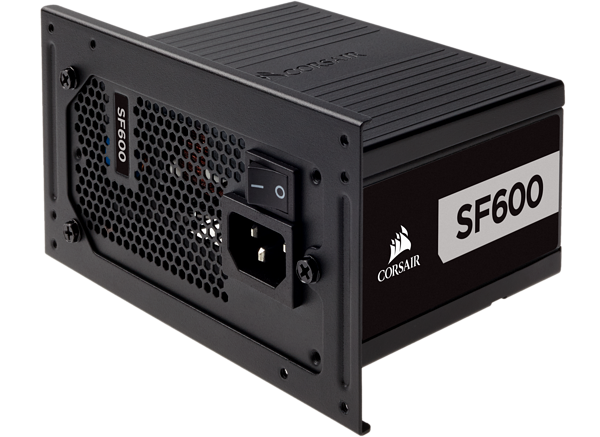

SFX-to-ATX Bracket Included

SF SERIES POWER SF PLATINUM Series power supplies include an SFX-to-ATX power supply adapter bracket that allows installation into any ATX compatible case. The new bracket offsets the mounting location, allowing for more space inside any standard ATX chassis, so you can tuck your excess cables out of the airflow path.

Corsair SF600 Key Features

Corsair Quality

80 PLUS PLATINUM CertifiedPlatinum certification ensures high efficiency operation for less excess heat and lower operating costs.

Japanese 105°C capacitorsPremium internal components ensure solid power delivery and long term reliability.

Zero RPM Fan ModeFan doesn’t turn on until it’s needed, so you’ll enjoy virtually silent operation at low and medium loads.

Specifications
Size	SFX - with ATX adapter bracket
Edition	SF600
Wattage	600 W
80 PLUS Certification	80 PLUS Platinum
Max. Efficiency (at 230Vac)	93 %
Cooling	Fan
Fans	1 x 92mm
Internal +12V Rails	Single Rail
Rail 1 +12V	50 A
Rail 2 +12V	N/A
Rail 3 +12V	N/A
Rail 4 +12V	N/A
Rail 5 +12V	N/A
Rail 6 +12V	N/A
Max. Combined Output +12V	50 A
Modular	Yes
Modularity	Full Modular
SLI/CrossFire	Yes
EPS 12V	Yes
Motherboard Connector	24-pin
Connectors	1 x 4+4-pin CPU +12V (EPS) 3 x 4-pin Molex 2 x 6+2-pin PCIe 4 x SATA
Dimensions	100 x 125 x 63.5 (WxHxD)
Package Type	Retail

Additional Information
Scan Code	LN90157
Model Number	CP-9020182-UK
GTIN	843591064026

TekSpek Guides

Power Supply units
Date Issued: 28th Apr 2020

Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.

80 Plus certification
Date Issued: 18th Nov 2010

Conceived back in 2004 and brought to market just a year later, the 80 PLUS initiative is one of many standards introduced in an effort to increase energy efficiency in modern technology. Targeting computer power supplies, it awards PSUs that are able to achieve an energy efficiency of over 80 per cent at varying workloads and a power factor of 0.9 or more at 100 per cent load.

Green computing at home
Date Issued: 20th Nov 2008

This TekSpek explains what Green Computing is, what it means to the consumer, and how energy-efficient components can be beneficial in the home.

600W Corsair SF600, Fully Modular, 80 PLUS Platinum, SLI/CrossFire, Single Rail, 50A, 92mm Fan, SFX PSU is rated 4.8 out of 5 by 4.

Rated 5 out of 5 by CagriY from Excellent PSU for ITX Builds It's been over a month now and it runs smooth as expected. Quite a premium price but I needed a reliable PSU and not get a headache after building a workstation with a cheap PSU so I went with it. It's quite silent. The fans stays idle when the power consumption is low. Also haven't had any hickups so far. It powers a i7 9700K, RTX 2070S, 32GB RAM with 3200Mhz system with no issues. Saw a build with RTX 2080S combination as well. It's suprisingly tiny as it's an SFX. So gives me more space to work on my cable management in my ITX build. It's all modular and cables feel quite premium. Modularity helped me a lot managing the cables inside the case while trying many combinations to have them set up as tidy as possible.

Date published: 2020-07-23

Rated 5 out of 5 by Rooder112 from Really great for ITX build which has also Graphics card really amazing, gives extra space for 2.5 inch drive if you using node 202 case.

Date published: 2020-05-22

Rated 5 out of 5 by Rooder from Perfect for ITX build, not SFX L so gives extra space I was using in ITX build Node 202, sfx size instead of sfx-l gave extra space for 2.5 hdd, so worked out well. Always good quality and quiet most of time.

Date published: 2020-05-12

Rated 4 out of 5 by 89porcupines from Brilliant and reliable, but expensive and lacking The product is great - silent, tiny, and works fine. It's only that, apart from obviously being too expensive, the cables are wayyyyy too short. It's designed for SFF builds, which I have, but even then I needed extensions (look up Akasa ones).

Date published: 2020-02-04
