Scan code: LN58898 Manufacturer code: CP-9020072-UK

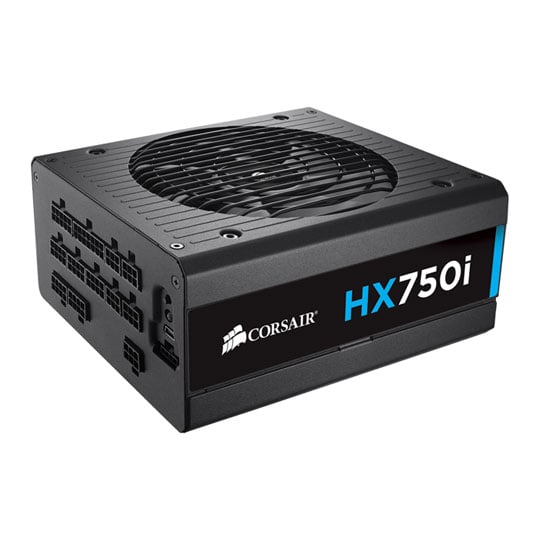

Corsair 750 Watt HX750i Fully Modular ATX PSU/Power Supply

750W Corsair HX750i, 80PLUS Platinum, Full Modular, SLI/CrossFire, Single Rail, 62.5A +12V, 1x140mm Fan, ATX PSU

Thumbnail 1 : Corsair 750 Watt HX750i Fully Modular ATX PSU/Power Supply Thumbnail 2 : Corsair 750 Watt HX750i Fully Modular ATX PSU/Power Supply Thumbnail 3 : Corsair 750 Watt HX750i Fully Modular ATX PSU/Power Supply Thumbnail 4 : Corsair 750 Watt HX750i Fully Modular ATX PSU/Power Supply
Scan code: LN58898 Manufacturer code: CP-9020072-UK
Order now and get it tomorrow, Thu 29th Oct
From £14.64 / month (APR 14.9%)
Monthly Payment: £14.64
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £162.98
Total inc. interest: £175.57
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 29th Oct to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

HX750i - Corsair Power Supply - Fully Modular ATX PSU

Corsair HX750i Power Supply 80PLUS - Platinum

Corsair HXi 750W Power Supply

This HXi Series power supply from Corsair has a total power output of 750W, other advantages to the HX750i are that it gives you extremely tight voltage control virtually silent operation, and a fully modular cable set. The 80PLUS Platinum efficiency rating and Zero RPM Fan Mode mean that at low to medium loads, the fan doesn’t spin at all. And when you do push the HXi hard, the thermally controlled fan spins only as fast as it needs to. Even when the fan isn't running the HX750i has specially selected components to reduce electronic noise for a near silent PSU.

View other HXi power outputs:
HX850i - HX1000i - HX1200i

Fully Modular Connectivity


HXi Fully Modular Cable Design

The easy to install, fully modular setup on the Corsair HX750i allows you to combine the low-profile cables provided for a great-looking build. This PSU also comes with Corsair Link Digital for advanced monitoring and control. When connected via the USB to your motherboard, this allows you to monitor the performance and efficiency, toggle the rail modes and control the fan speed directly, this all combined gives you the best power and efficiency in your power supply.

HX750i Efficiency & Noise Graphs

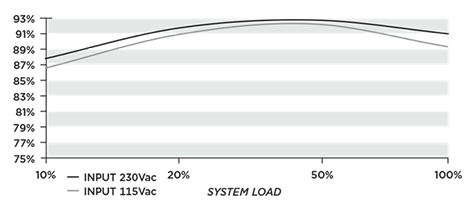

Efficiency Graph

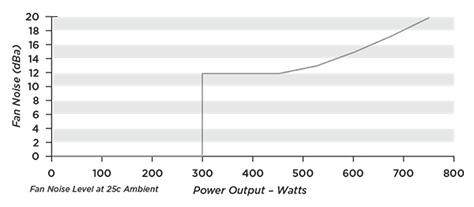

Noise Graph

Corsair HX750i Output Power Chart

DC Output +3.3V +5V +12V -12V +5Vsb
Max Load 25A 25A 62.5A 0.8A 3A
Maximum Combined Wattage 150W 750W 9.6W 15W
Total Power: 750W
DC Output +3.3V +5V +12V1 +12V2 -12V3 +12V4 +12V5 +12V +5VSB
Max Load 25A 25A 40A 40A 40A 40A 40A 0.8A 3A
Maximum Combined 150W 750W 9.6W 15W
Total Power: 750W

Corsair HX750i Key Features

80PLUS - Platinum

80 PLUS Platinum CertifiedPlatinum certification ensures high efficiency for less excess heat & lower operating costs.

Japanese Capacitors

Japanese 105°C capacitorsPremium internal components ensure solid power delivery and long term reliability.

Zero Fan Mode

Zero RPM Fan ModeFan doesn’t turn on until it’s needed, so you’ll enjoy virtually silent operation at low and medium loads.

10 Year Warranty

Configurable +12V RailIt’s your choice – run it in the default multi-rail +12V mode, or toggle single-rail operation.

Size ATX
Edition HXi Series HX750i
Wattage 750 W
80 PLUS Certification 80 PLUS Platinum
Max. Efficiency (at 230Vac) 92 %
Cooling Fan
Fans 1 x 140mm
Internal +12V Rails Single Rail
Rail 1 +12V 62.5 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 62.5 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
  • 2 x 4+4-pin CPU +12V (EPS)
  • 2 x 4-pin FDD Power
  • 8 x 4-pin Molex
  • 6 x 6+2-pin PCIe
  • 12 x SATA
Dimensions 150 x 86 x 180 (WxHxD)
Package Type
Additional Information
Scan Code LN58898
Model Number CP-9020072-UK
GTIN 1617714200009

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

120 months
Return to base
RTB Period:
120 months
Manufacturer Contact Details
0871 472 4747
Loading Please Wait

Please wait . . .

TekSpek Guides
Power Supply units
Power Supply units
Date Issued: 28th Apr 2020

Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.

Read More

750W Corsair HX750i, 80PLUS Platinum, Full Modular, SLI/CrossFire, Single Rail, 62.5A +12V, 1x140mm Fan, ATX PSU is rated 4.9 out of 5 by 14.
Rated 5 out of 5 by from Perfect PSU Big fan of this PSU, hardly ever hear it when it does kick on, really easy to install and modular cable set makes it easy to hook up. Would absolutely recommend if you want a quiet PSU that does the job
Date published: 2020-07-23
Rated 5 out of 5 by from An excellent premium PSU which so far has been completely silent Felt a bit torn when ordering this PSU as I've previously favoured the Dark Power series from BeQuiet, but having read the reviews of others on Scan I decided to give this model a go. I have to say I've been very impressed. Build quality is first rate and power draw certainly seems efficient for what I'm getting it to power: an i9 9900K in an ASUS Z390M TUF m/b, 64GB RAM, a couple of SSDs and HDDs, together with a new GTX 1660 Ti. There is a self test which briefly spins the fan, so I know that it works, but apart from that the fan on the PSU hasn't spun up once. Even under a fairly heavy load the PSU gets slightly warn at best, and clearly doesn't seem to generate any waste heat requiring assistance from the fan. This behaviour seems quite exceptional to me, and I will certainly be recommending these over my previously preferred Dark Power models going forward. Cables are all modular and come in a nice pouch type bag, to store any you don't use in, which is a nice touch.
Date published: 2019-05-02
Rated 5 out of 5 by from Truly awesome product, build quality is fantastic Amazing PSU - the heart of your build, why scrimp on this? Comes with plenty of cabling for different cards and HDs etc. Very very quiet aswell!
Date published: 2018-04-15
Rated 5 out of 5 by from Good build and silent operation Replaced an older Corsair 650 can't fair the quality and would always opt for Corsair PSU first time every time
Date published: 2016-09-14
Rated 5 out of 5 by from Power to the people Generally a PSU is a PSU, right, so there's not a lot to say, but this device does have a couple of nice features. 1. So far, even under load I've not had the fan kick in. So overall I'd call this a silent PSU. Right now it's sat at 33C and the fan at 0rpm 2. The Corsair Link is not essential, but it is a nice to have for monitoring what's going on with the PSU (in terms of the previously mentioned two stats) If I had to pick a couple of faults... The modular connectors on the PSU could be better labelled. It would also be nice if the Link cable could be made a little thinner. If I was going to REALLY nitpick, then the included cables could be better quality and they could supply dedicated 6 and 8 pin PCIe cables rather than the split kind - but all the above faults are the same across almost every manufacturer
Date published: 2016-08-27
Rated 5 out of 5 by from Beautifully packaged, excellent monitoring software and very quiet I've needed a replacement for my aging Coolmaster 750W psu as it was beginning to cause issues with my GTX 980ti. My criteria for a new psu was primarily stable power, reliability and the ability to monitor voltages. With the Corsair HX750 it managed to fulfil all these expectations admirably. The PSU itself is very quiet and provides rock solid performance across a varied load range, temperatures were more than acceptable and the Corsair link software and usb link has come along in leaps and bounds since it's update.
Date published: 2016-06-10
Rated 5 out of 5 by from Excellent quality and performance This well-made power supply is efficient, quiet and does everything it says on the tin. The "no fan" low-power operation is a bonus of those wanting a quiet PC. Voltage stability is excellent and the Link software enables you to see exactly what's going on. A first class product.
Date published: 2016-04-23
Rated 5 out of 5 by from Highly recommended for capability and quality. Get this product. Do not skimp on your power supply... This may seem unimportant at first glance, but if your power supply dies it can kill your entire computer. This power supply allows you to monitor the performance of it in terms of efficiency, power draw from the grid and power production for the computer. Everything about this PSU is made with quality and stability in mind and I would not hesitate to recommend this range of PSU's to anyone looking for a high quality product. If you cheap out on a power supply, one day you will regret it. Trust me, I have experience of this with cheap brands.
Date published: 2015-10-24
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_13
  • loc_en_GB, sid_58898, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

would this be able to connect to the 8pin and 4pin cpu power connectors

on the ASUS ROG Crosshair VII HERO motherboard
Asked by: Braedon
Yes, you get all the cables you need for GPUs requiring either one or both (8 and 4 pin) power connections.
Answered by: MrDonkey
Date published: 2019-07-01
