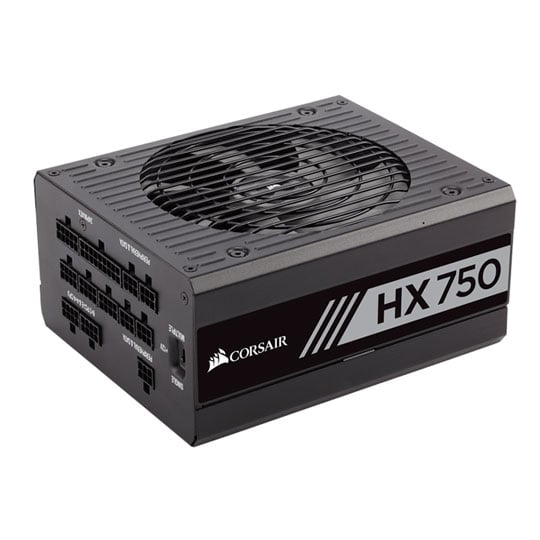

Corsair HX750 Fully Modular 80+ Platinum Power Supply/PSU
750W Corsair HX Series HX750, 80PLUS Platinum, Full Modular, SLI/CrossFire, Single Rail, 62.5A +12V, 1x135mm Fan, ATX
|Instalment Rate:||0% p.a. (fixed)|
|Cost of purchase:||£169.99|
|Total inc. interest:||£169.99|
Purchase Rate: 19.9% p.a. (variable)
Representative: 19.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
By DPD On 24th Sep
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
HX750 - Corsair Power Supply - Fully Modular ATX PSU

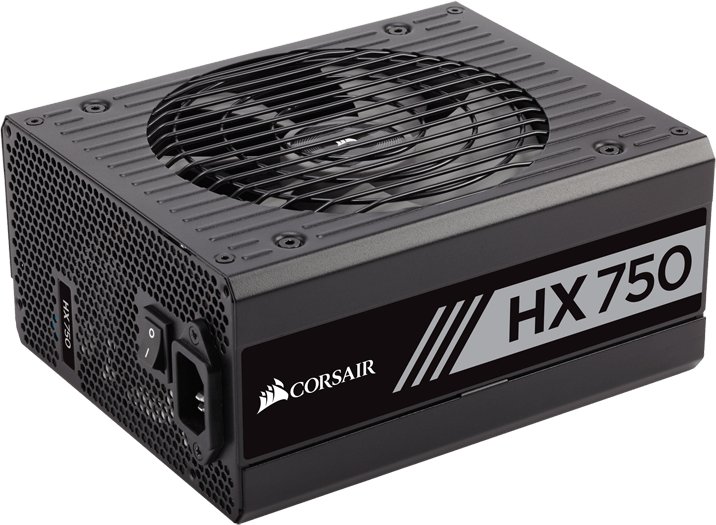

Corsair HX 750W Power Supply
This HX Series power supply from Corsair has a total power output of 750W, other advantages to the HX750 are the fully modular cable setup which gives you extremely tight voltage control virtually silent operation. The 80PLUS Platinum efficiency rating and Zero RPM Fan Mode mean that at low to medium loads, the fan doesn’t spin at all. And when you do push the HXi hard, the thermally controlled fan spins only as fast as it needs to. Even when the fan isn't running the HX750 has specially selected components to reduce electronic noise for a near silent PSU.
View other HX power outputs:
HX1000 - HX1200

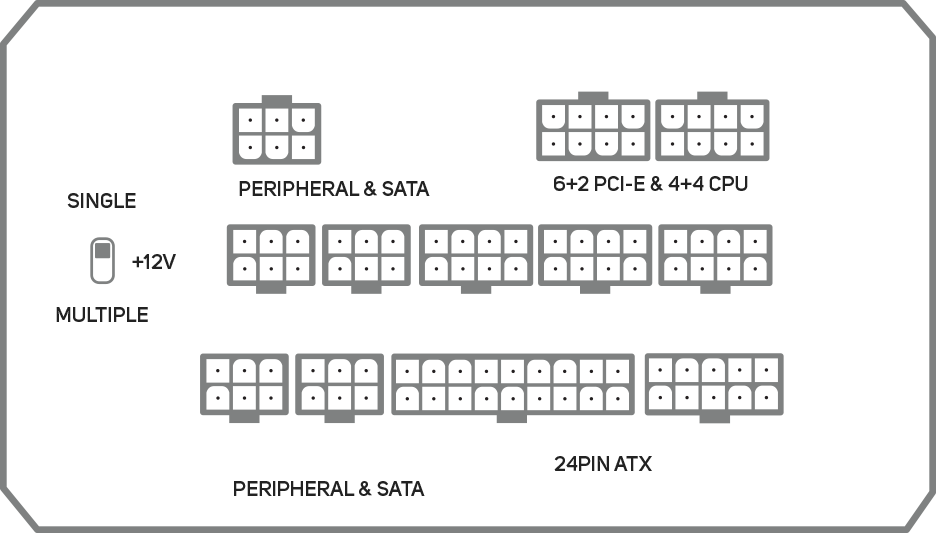

Fully Modular Connectivity

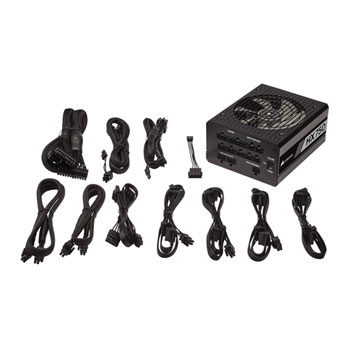

HX Fully Modular Cable Design

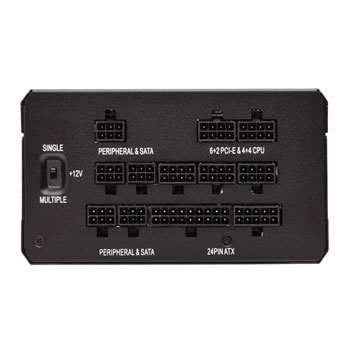

The easy to install, fully modular setup on the Corsair HX750 allows you to combine the low-profile cables provided for a great-looking build. You can toggle the rail modes using the switch on the PSU, In the SINGLE position, the full output capability of the power supply’s +12V rail is available to any and all connector, while on MULTIPLE each connector has Over-Current Protection so no more than 40A of current can be delivered to each cable.

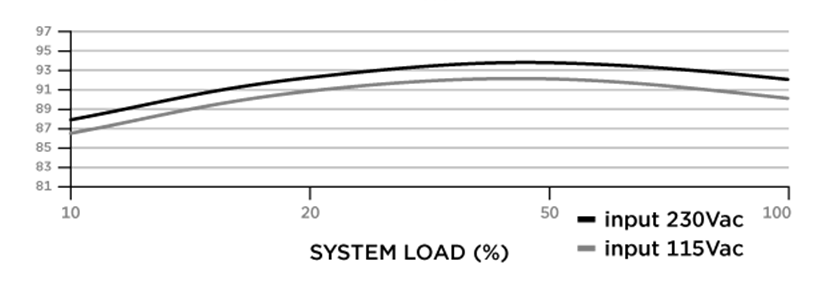

HX750 Efficiency & Noise Graphs

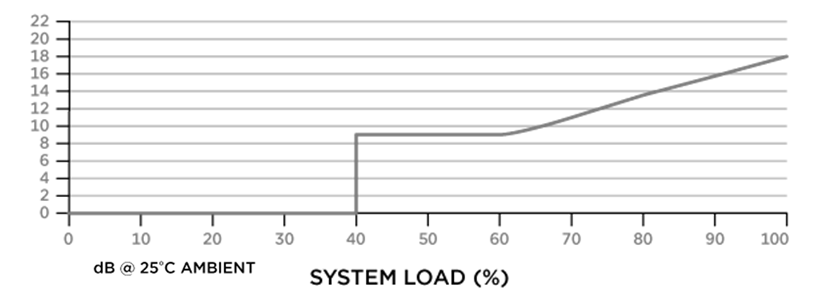

HX750 FAN NOISE
Corsair HX750 Output Power Chart
|CORSAIR HX750 DC OUTPUT - SINGLE +12V RAIL MODE|
|Maximum Combined Wattage||150W||750W||9.6W||15W|
|Total Power: 750W|
|CORSAIR HX750 DC OUTPUT - MULTIPLE +12V RAIL MODE|
|Total Power: 750W|
Corsair HX750 Key Features
80 PLUS Platinum CertifiedPlatinum certification ensures high efficiency for less excess heat & lower operating costs.
Japanese 105°C capacitorsPremium internal components ensure solid power delivery and long term reliability.

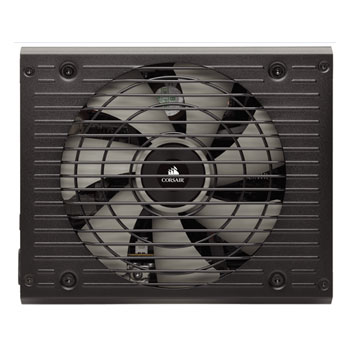

Zero RPM Fan ModeFan doesn’t turn on until it’s needed, so you’ll enjoy virtually silent operation at low and medium loads.
Ten Year WarrantyYour guarantee of reliable operation that will last across several system builds.
|Edition||HX Series HX750|
|80 PLUS Certification||80 PLUS Platinum|
|Max. Efficiency (at 230Vac)||92 %|
|Fans||1 x 135mm|
|Internal +12V Rails||Single Rail|
|Rail 1 +12V||62.5 A|
|Rail 2 +12V||N/A|
|Rail 3 +12V||N/A|
|Rail 4 +12V||N/A|
|Rail 5 +12V||N/A|
|Rail 6 +12V||N/A|
|Max. Combined Output +12V||62.5 A|
|Dimensions||150 x 86 x 180 (WxHxD)|
Please note your statutory rights are not affected.
For further information regarding Scan's warranty procedure please see our terms and conditions
- 120 months
- Return to base
- RTB Period:
- 120 months
- 0871 472 4747
Date Issued: 28th Apr 2020
Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.
