Scan code: LN48715 Manufacturer code: CP-9020061-UK

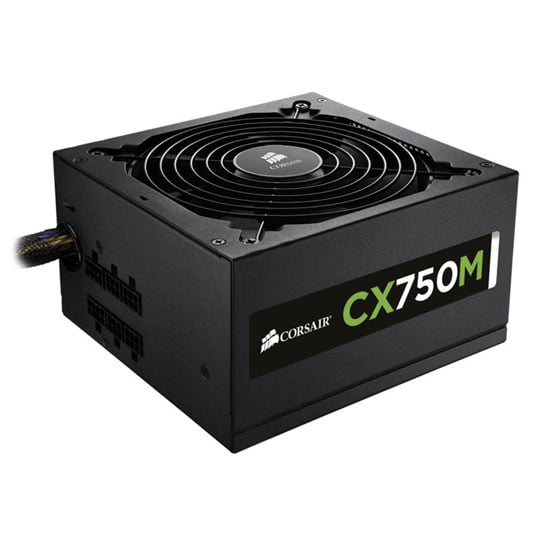

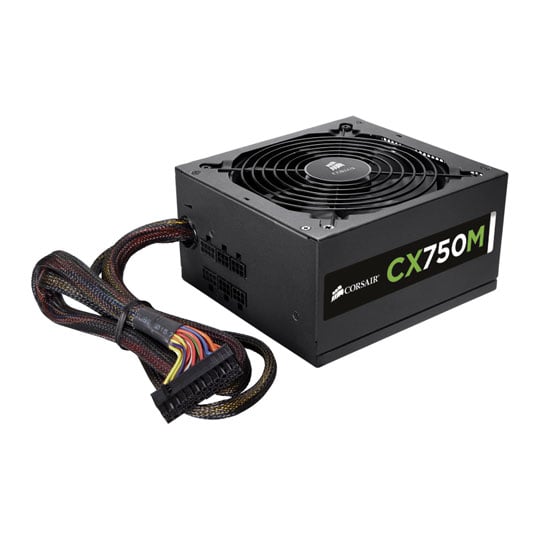

Corsair 750 Watt CXM Hybrid Modular ATX PSU/Power Supply

750W Corsair Builder CX750M, 80PLUS Bronze, Hybrid Modular, SLI/CrossFire, Single Rail, 62A +12V, 1x120mm Fan, ATX PSU

MORE INFO
MORE INFO
Thumbnail 1 : Corsair 750 Watt CXM Hybrid Modular ATX PSU/Power Supply Thumbnail 2 : Corsair 750 Watt CXM Hybrid Modular ATX PSU/Power Supply Thumbnail 3 : Corsair 750 Watt CXM Hybrid Modular ATX PSU/Power Supply Thumbnail 4 : Corsair 750 Watt CXM Hybrid Modular ATX PSU/Power Supply
Scan code: LN48715 Manufacturer code: CP-9020061-UK
Order in the next 1 hr 28 mins and get it tomorrow
RRP: £89.99
£79.99
Add To Basket
Get it Tomorrow, 06 JulIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 6th Jul to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

CX750M - Corsair Power Supply - Hybrid Modular ATX PSU

Corsair CX750M Power Supply 80PLUS - Bronze

Corsair CXM 750W Power Supply

The CX750M is an excellent mid-level PSU for use in basic system builds and desktop PC computer uprades. The CXM Series is available in a variety of power configurations allowing you to power more components if needed. The matt black finish, black sleeved cables and black connectors give the CX750M a high-tech look. The clever thermally controlled fan design allows for little or no detectable fan noise during normal use, this gives an 80PLUS BRONZE certified efficiency rating. This CX750M has been tested to strict Corsair standards for a trouble-free installation.

View other CXM Series power supplies:
CX850

Fully Wired Connectivity

Connections

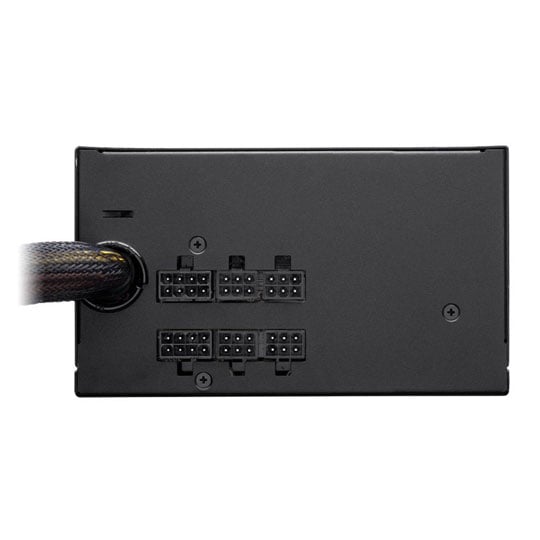

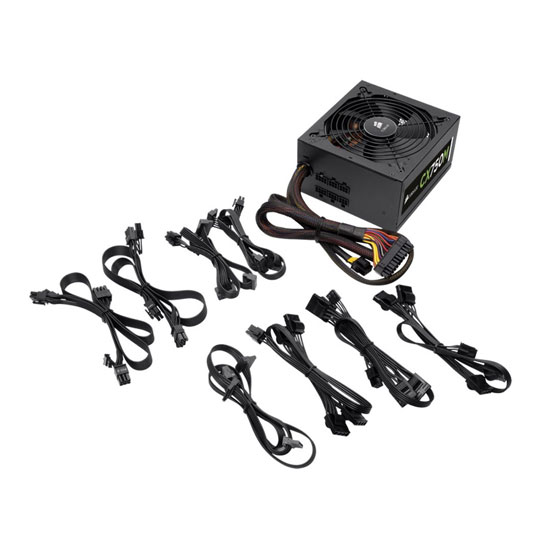

Modular Cabling System

On the CX750M PSU the peripheral power cables aren’t hard-wired to the power supply, you can connect only the cables you need for your exact configuration of PCI-E cards and storage devices. The rest of the cables stay in the box, and not in your PC’s case where they can add to the clutter and interfere with airflow.

CX750M Efficiency & Noise Graphs

CX750M EFFICIENCY

Efficiency Graph

CX750M FAN NOISE

Noise Graph

Corsair CX750M Output Power Chart

Corsair CX750M ATX Power Supply
AC Input Rating DC Output Rating
AC Input: 100V - 240V DC Output +3.3V +5V +12V -12V +5Vsb
Current: 13A - 6.5A Max Load 25A 25A 62A 0.8A 3A
Frequency: 47Hz - 63Hz Maximum Combined Wattage 130W 744W 9.6W 15W
  Total Power: 750W
Specifications
Size ATX
Edition CX750M
Wattage 750 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency (at 230Vac) 85 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 62 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 62 A
Modular Yes
Modularity Hybrid Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 2 x 4-pin FDD Power
  • 6 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 8 x SATA
Dimensions 150 x 86 x 160 mm (WxHxD)
Package Type
Additional Information
Scan Code LN48715
Model Number CP-9020061-UK
GTIN 843591030762
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
60 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
TekSpek Guides
Power Supply units
Power Supply units
Date Issued: 28th Apr 2020

Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.

Read More

750W Corsair Builder CX750M, 80 PLUS Bronze, Hybrid Modular, SLI/CrossFire, Single Rail, 62A +12V, 1x120mm Fan, ATX PSU is rated 4.2 out of 5 by 17.
Rated 5 out of 5 by from Quick delivery and great item This arrived quickly and was easy to fit. Great product.
Date published: 2020-01-02
Rated 1 out of 5 by from 2 blew up, ruined my GPU. I bought one of these for my first build several years ago. After 1.5 years it literally popped and exploded. I was sent a replacement by Corsair and that one also died after 1.5 years. After the second CX750M died it fried my GPU and I had to buy both another GPU and PSU as I refused to get a third ticking time bomb from Corsair! It's the only Corsair product I've had fail, but I've heard other reports that this specific model can be a bit temperamental! I would avoid this specific model and for for a Gold or higher standard if you're sticking with Corsair and this price range! They have some Gold+ for the same price I believe!
Date published: 2019-04-01
Rated 5 out of 5 by from Great PSU What can I say? Works perfectly. No problems with it whatsoever. I am a very happy customer.
Date published: 2019-03-11
Rated 1 out of 5 by from Lasted 3 weeks The CX is the low grade end of the corsair line hence the bronze rating and the one I recieved blew after 3 weeks. Scan were good enough to allow me to return it and I've since bought an evga gold rated PSU, which turned out to be quieter but I've not had it long enough to comment on its longevity. Fingers crosses
Date published: 2015-11-25
Rated 5 out of 5 by from Good modular PSU This is basically a modular PSU (only non modular cables are effectively essential). It came with every internal power cable you would need in a conventional setup. It was easy to install, and I've had no problems with it at all. A good buy, definitely worth getting over a non-modular to avoid cable mess.
Date published: 2015-11-17
Rated 5 out of 5 by from A great PSU! This PSU is quiet and good value for money. It has a 5 year warranty and has the corsair quality that so many people respect. With only the cables that you need and the ability for SLI.
Date published: 2015-09-26
Rated 5 out of 5 by from Fantastic service Great value, all delivered bang on time, all working with the rest of the kit so far. Will definitely shop here again.
Date published: 2015-03-16
Rated 5 out of 5 by from powerful!! powers my intel gaming rig at ease the psu is quiet efficient and reliable from my knowledge. i would definitely recommend this product along with any other corsair product!!!! :D
Date published: 2014-02-05
