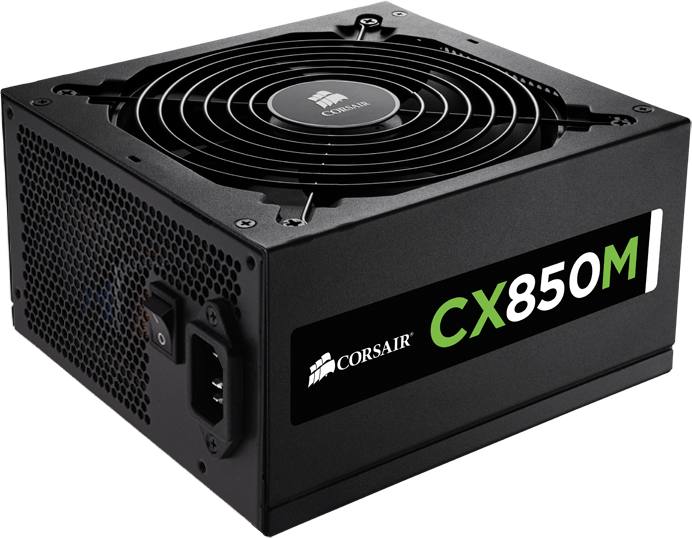

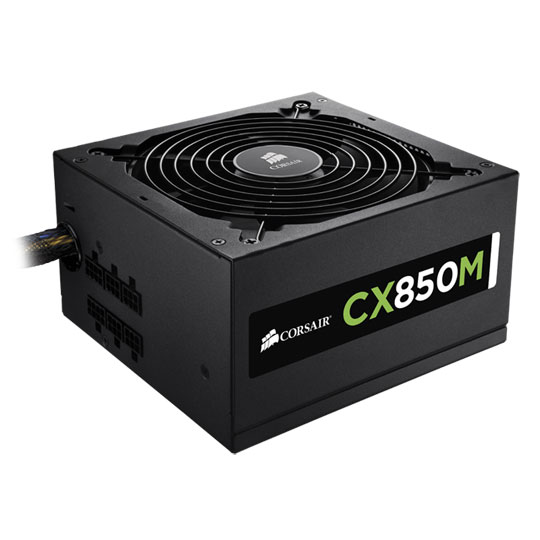

Corsair 850W CX850M Hybrid Modular Power Supply

Thumbnail 1 : Corsair 850W CX850M Hybrid Modular Power Supply Thumbnail 2 : Corsair 850W CX850M Hybrid Modular Power Supply

850W Corsair CX850M, Hybrid Modular, 80PLUS Bronze, SLI/CrossFire, Single Rail, 70A, 120mm Fan, ATX PSU

Corsair
Scan code: LN61795 Manufacturer code: CP-9020099-UK Request call
£94.99
Buy
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 27th Sep 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

CX850M - Corsair Power Supply - Hybrid Modular ATX PSU

Corsair CX850M Power Supply 80PLUS - Bronze

Corsair CXM 750W Power Supply

The CX705M is an excellent mid-level PSU for use in basic system builds and desktop PC computer uprades. The CXM Series is available in a variety of power configurations allowing you to power more components if needed. The matt black finish, black sleeved cables and black connectors give the CX850M a high-tech look. The clever thermally controlled fan design allows for little or no detectable fan noise during normal use, this gives an 80PLUS BRONZE certified efficiency rating. This CX850M has been tested to strict Corsair standards for a trouble-free installation.

View other CXM Series power supplies:
CX750

Fully Wired Connectivity

Connections

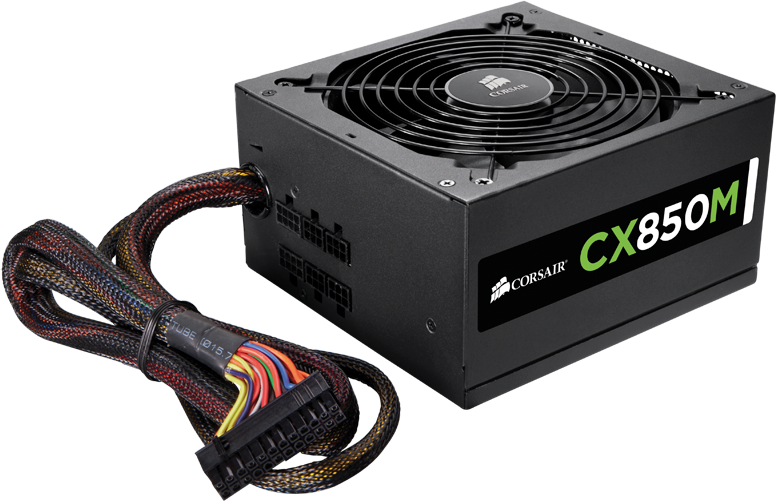

Modular Cabling System

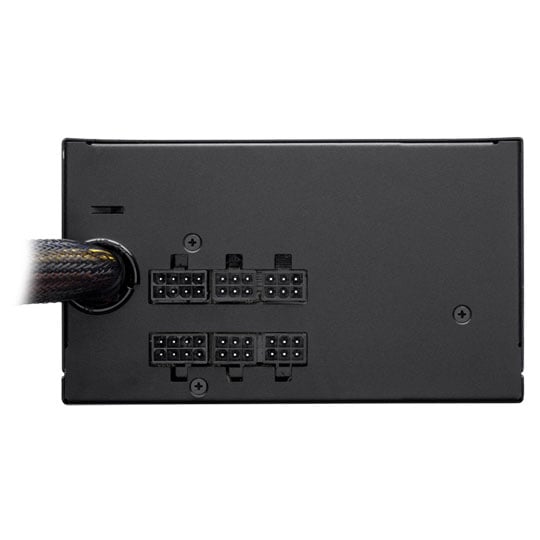

On the CX850M PSU the peripheral power cables aren’t hard-wired to the power supply, you can connect only the cables you need for your exact configuration of PCI-E cards and storage devices. The rest of the cables stay in the box, and not in your PC’s case where they can add to the clutter and interfere with airflow.

CX850M Efficiency & Noise Graphs

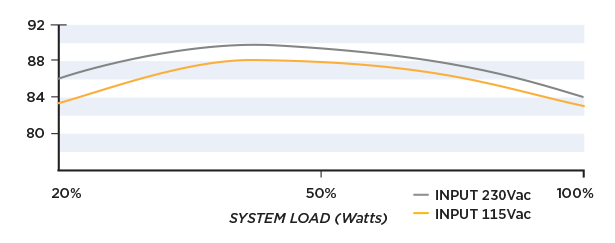

CX850M EFFICIENCY

Efficiency Graph

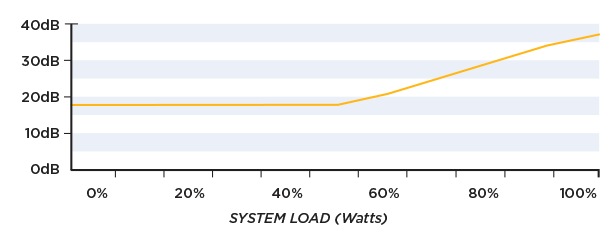

CX850M FAN NOISE

Noise Graph

Corsair CX850M Output Power Chart

Corsair CX850M ATX Power Supply
AC Input Rating DC Output Rating
AC Input: 100V - 240V DC Output +3.3V +5V +12V -12V +5Vsb
Current: 13A - 6.5A Max Load 25A 25A 70A 0.8A 3A
Frequency: 47Hz - 63Hz Maximum Combined Wattage 130W 840W 9.6W 15W
  Total Power: 850W
Specifications
Size ATX
Edition CX850M
Wattage 850 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency 85 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 70 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 70 A
Modular Yes
Modularity Hybrid Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 6 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 2 x FDD Power
  • 8 x SATA
Dimensions 150 x 86 x 160 mm (WxHxD)
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
60 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 47 47
Customers also bought
TekSpek Guides
PSUs (Power Supply Units)
PSUs (Power Supply Units)
Date Issued: 4th Jul 2011

Let's face it, power-supply units (PSUs) are boring. Presented in what's usually a mundane box spitting cables from one end, this is a product that's neither aesthetically pleasing nor technically interesting to the majority of self-builders.

Read More

80 Plus certification
80 Plus certification
Date Issued: 18th Nov 2010

Conceived back in 2004 and brought to market just a year later, the 80 PLUS initiative is one of many standards introduced in an effort to increase energy efficiency in modern technology. Targeting computer power supplies, it awards PSUs that are able to achieve an energy efficiency of over 80 per cent at varying workloads and a power factor of 0.9 or more at 100 per cent load.

Read More

Green computing at home
Green computing at home
Date Issued: 20th Nov 2008

This TekSpek explains what Green Computing is, what it means to the consumer, and how energy-efficient components can be beneficial in the home.

Read More

Reviews
850W Corsair CX850M, Hybrid Modular, 80PLUS Bronze, SLI/CrossFire, Single Rail, 70A, 120mm Fan, ATX PSU is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Decent There isn't much I can say about a PSU unless I have used it for a considerable amount of years without power loss by which time a review would be pointless as a new line of PSU's would be on the market. My friend has had the 750w version for 2 - 3 years and is still going strong. Other than this, all I can say is that the noise is practically non-existent and that the cabling is pretty decent in terms of both build quality and that you can power 2 graphics cards with a single cable that has 2 plugs. As always scan is a decent company to buy parts from both online and in-store.
