Scan code: LN59921 Manufacturer code: 0-761345-05076-0

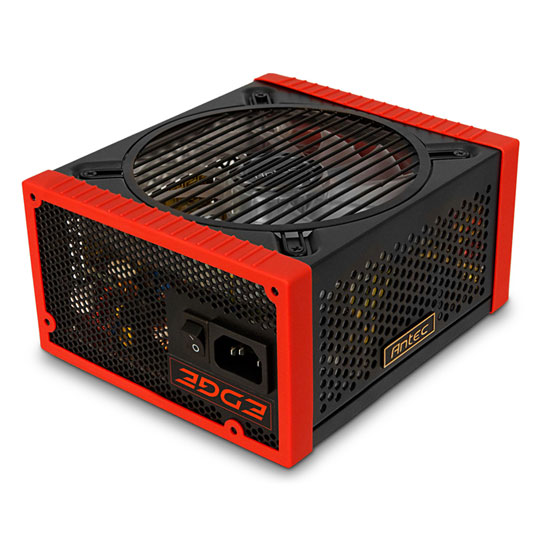

Antec Edge 750W 80+ Gold Fully Modular PSU

750W Antec Edge 80PLUS Gold Fully Modular ATX PSU, Japanese Capacitors, 5 Year Warranty

Thumbnail 1 : Antec Edge 750W 80+ Gold Fully Modular PSU Thumbnail 2 : Antec Edge 750W 80+ Gold Fully Modular PSU Antec Edge 750W 80+ Gold Fully Modular PSU : video thumbnail 1 Antec Edge 750W 80+ Gold Fully Modular PSU : video thumbnail 2
Scan code: LN59921 Manufacturer code: 0-761345-05076-0
£99.98
From £8.98 / month (APR 14.9%)
Monthly Payment: £17.35
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £99.98
Total inc. interest: £104.09
Monthly Payment: £8.98
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £99.98
Total inc. interest: £107.69
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 23rd Jul 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Antec’s EDGE series is the pinnacle of power supplies. EDGE is fully modular with a revolutionary 18+10-pin MBU socket for the needs of tomorrow. By using a PSU that is 80 PLUS® GOLD & ErP Lot 6: 2013 certified, operating up to 92% efficient, you can reduce your electricity bill by up to 20% when compared to many other power supplies. EDGE’s innovative 16-pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two different 8-pins connectors and even future connectors of 10, 12, 14 or 16-pins. All cables are darkened and also flat (except MBU cable) to become Flat Stealth Wires and are thus nearly invisible in your chassis. 2 High Current Rails and a ~99% +12V output ratio maximize EDGE’s capabilities to power the latest CPU’s & GPU’s. CircuitShield™ makes EDGE safe and reliable in any environment with its 7 industrial-grade protections. Backed by a 5 year warranty and lifetime global 24/7 support, EDGE embodies everything a power supply can accomplish today Features • 750W Continuous Power - Guaranteed 750W of Continuous Power from Antec
• 80 PLUS® GOLD certified - Up to 92% efficient, to reduce your electricity bill
• Save Energy and Money - Reduce your electricity bill by up to 20%
• 135 mm LED FDB Silence - Whisper-quiet high-quality LED fluid dynamic bearing bearing fan with long lifetime
• Thermal Manager - An advanced low voltage fan control for optimal heat & noise management
• 28(18+10)-pin MBU socket - For possible future MBU connectors
• 16-pin Socket - Industry-leading 16-pin socket double the modular connectivity by supporting 2 different 8-pin cables per socket and allow for future connector changes
• High Current Rails - 2 High Current +12V rails with high load capabilities ensure maximum CPU & GPU compatibility
• Flat Stealth Wires - Flat and darkened wires for minimal visibility in chassis(except MBU)
• 98% +12V - Output for maximum CPU & GPU support
• Multi PCI-E - 2 PCI-E connectors for multiple GPU support
• CircuitShield™ - Full suite of industrial grade protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Surge & Inrush Protection (SIP), No Load Operation (NLO)
• Japanese Heavy-Duty Caps - High-performance Japanese capacitors ensure tightest DC stability and regulation
• PhaseWave™ Design - A server-class LLC design with a synchronous rectification based on a DC-DC topology
• AQ5 - Antec Quality 5-year warranty and lifetime global 24/7 support
Specifications
Size ATX
Edition Edge
Wattage 750 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency 92 %
Cooling Fan
Fans 1 x 135mm
Internal +12V Rails Dual Rail
Rail 1 +12V 40 A
Rail 2 +12V 40 A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V N/A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 6 x 4-pin Molex
  • 6 x 6+2-pin PCIe
  • 10 x FDD Power
  • 9 x SATA
Dimensions 150 x 86 x 170 (WxHxD)
Package Type
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
60 months
Manufacturer Contact Details
Customers also bought
Reviews
750W Antec Edge 80PLUS Gold Fully Modular ATX PSU, Japanese Capacitors, 5 Year Warranty is rated 3.0 out of 5 by 2.
Rated 5 out of 5 by from great PSU - excellent quality I use this PSU to power a X99 system overclocked with 2 x GTX 980s overclocked to 1404mhz each, 3 x HDD's, full watercooling, DDC pump. 8 fans, dedicated soundcard and LED light strips. Works flawlessly and the white LED light inside is cool as are the red and black rubber noise dampening parts. Well recommended.
Date published: 2016-07-27
Rated 1 out of 5 by from Avoid at all cost I've used to be a big fan of Antec, but this PSU gave me nothing but trouble. Rather often it will prevent system to start up. It's just dead or pretends to be. After full extraction from the case it just might start to work. I know it's PSU as I have tried to power it up directly via shortening power up pins on PSU, still nothing. It is a hassle to take it out each time out of mATX case, just to make it start again. Avoid at all cost. It does look good on RED themed case, but headache just not worth it.
Date published: 2015-11-27
  • y_2018, m_7, d_18, h_19
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_GB, sid_59921, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Compatinle with r9 295 x2

Hi Does this PSU support a Radeon R9 295x2 which need 28 amps per 8 pin PCI-e connector? If not can you recommend the cheapest that does as I am having trouble locating one below 1500w which is just overkill. Full sys specs Asus Rampage V Extreme X99 Intel 5820K 16gb Geil Evo Portenza 3000 MHz Radeon R9 295 x2 2 x Crucial mx 100 512gb SSD in raid 0 Corsair h110 coler Many thanks
Asked by: Mattallenmsn
Hi, Not sure if this help, but I'm running this PSU with two Nvidia 980 TI in SLI (both with 8pin power required) and have no issues. None the less I would not recommend Antec as a brand for PSU.
Answered by: QNTIX
Date published: 2016-01-31
