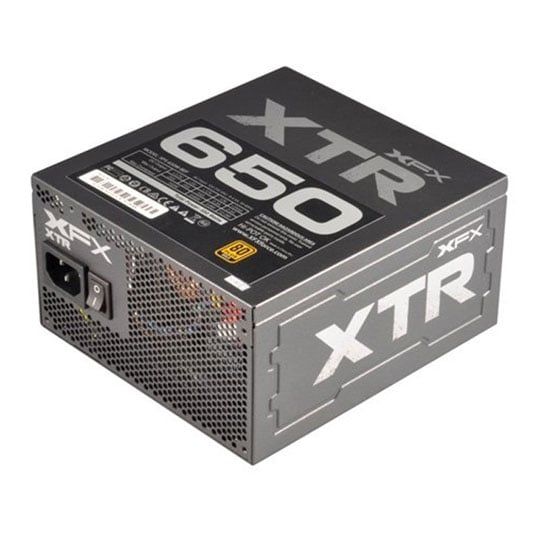

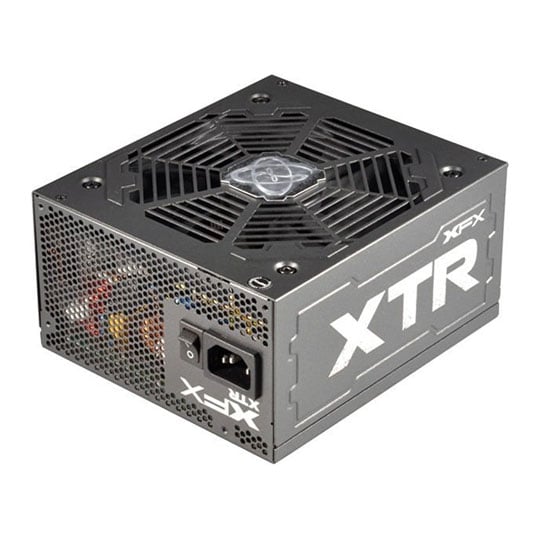

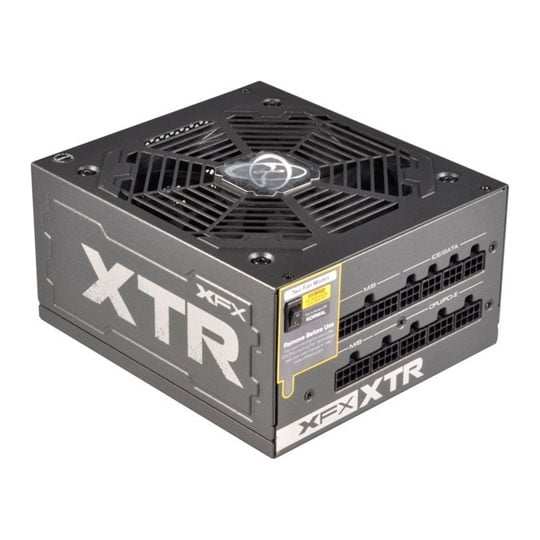

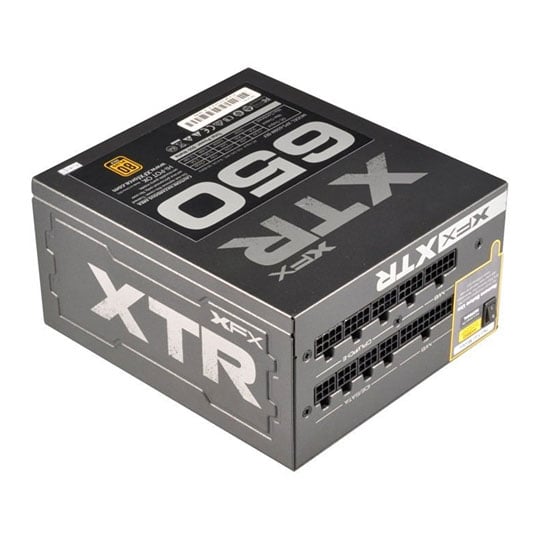

XFX XTR SERIES 650W Modular Power Supply

650W XFX XTR Series, Full Modular, 80 PLUS Gold, 1x120mm Fan, ATX, PSU

Scan code: LN55442 Manufacturer code: P1-650B-BEFX Request call
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
3xs Approved High End
Delivery options £5.48 By DPD On 27th Jun 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview Maximize Your Gaming Experience
Design for high performance gaming with high power options and multi-GPU ready design

• AMD Radeon CrossFire Ready
• NVIDIA GeForce SLI Ready
• Multiple PCI-E 6Pin and 6+2Pin connectors
• Designed to handle the most power hungry components

Super Efficiency and Quality Components
80 Plus Certified PSUs are the most power efficient power supplies designed to reduce lost wattage and reduce your overall power consumption. Also our high quality components ensure that your PSU will stand the test of time.

• 80 Plus Certified
• True Wattage Guarantee
• 5 Year Warranty
Features • EasyRail™ Plus Technology allowing plenty of wattage headroom to handle your devices
• Hybrid Fan Control allowing the power supply to operate silenty until it reaches 20% load or 25°C
• Ultra Quiet Fan Design
• Ultra Voltage Regulation Design
• Haswell Ready
• AMD Radeon CrossFire Ready
• NVIDIA GeForce SLI Ready
• Multiple PCI-E 6-Pin and 6+2Pin connectors
• True Wattage guarantee
• 80 Plus Gold certifying 90% power efficiency
• Extreme heat tested capacitors
Size ATX
Edition XTR Series
Wattage 650 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 53 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V N/A
Modular Yes
Modularity Full Modular
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 20+4-pin
  • 1 x 4+4-pin CPU +12V (EPS)
  • 7 x 4-pin Molex
  • 2 x 6+2-pin PCIe
  • 2 x 6-pin PCIe
  • 1 x FDD Power
  • 8 x SATA
Dimensions 170 x 150 x 86 mm (WxHxD)
Package Type

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

60 months
Return to base
DOA Period:
7 days
RTB Period:
24 months
Manufacturer Contact Details
09068 354 400
Customers also bought
650W XFX XTR Series, Full Modular, 80 PLUS Gold, 1x120mm Fan, ATX, PSU is rated 4.3 out of 5 by 4.
Rated 3 out of 5 by from Choose carefully Way too many wires for my application but purchased on recommendation back in 2013. Has worked fine but just gave up today. Although the Fractal Design node case can take an ATX PSU, be careful as this one takes a fair bit of fiddling to get in that case due to the abundance of wires/connectors. I've never had a PSU fail on me before hence the deduction of some stars.
Date published: 2017-06-15
Rated 5 out of 5 by from Great performing PSU This came with a nice selection of cables, but in particular a nice long 8 pin cpu power cable, long enough for all but the very biggest of towers. Is totally silent in operation and had it for a great price from scan.
Date published: 2015-09-20
Rated 4 out of 5 by from Great price and no problems My only two gripes would be that the cabling that comes along with this are fiddly and also it comes with a european adapter and not the UK one, thankfully we had a UK one lying around at home
Date published: 2015-09-11
Rated 5 out of 5 by from Great PSU and fully modular Handles my build just find. Great Build, Nice looking, and also fully modular to enable effective cable management. Obviously it is more expensive then semi or non modular PSU's, but that would be down to preference i guess.
Date published: 2014-12-18
  • y_2017, m_6, d_22, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_4
  • loc_en_GB, sid_55442, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Is this product not XFX XTR rather than XFX Pro?

Hi, Could you please confirm that this product (as per the product code) is the XFX XTR series Psu rather that the XFX Pro series? Cheers
Asked by: Hoepie
Yes this is the XTR :)
Answered by: Dr4g0n
Date published: 2015-11-22
