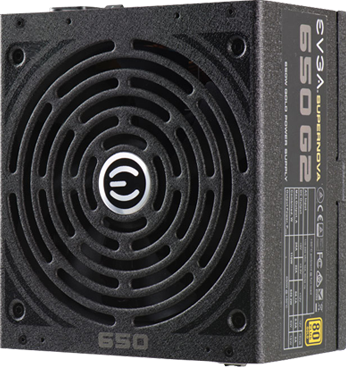

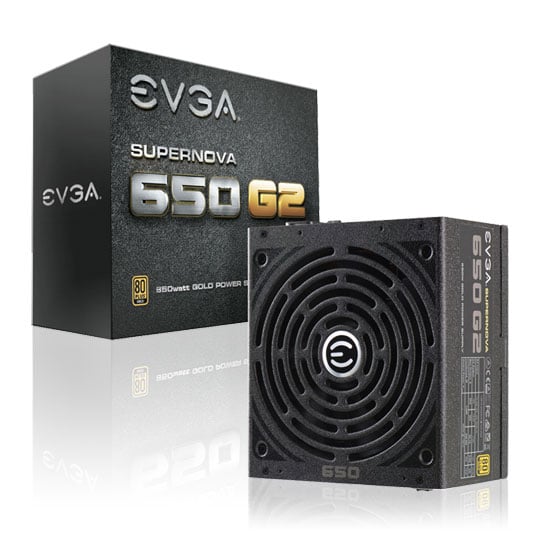

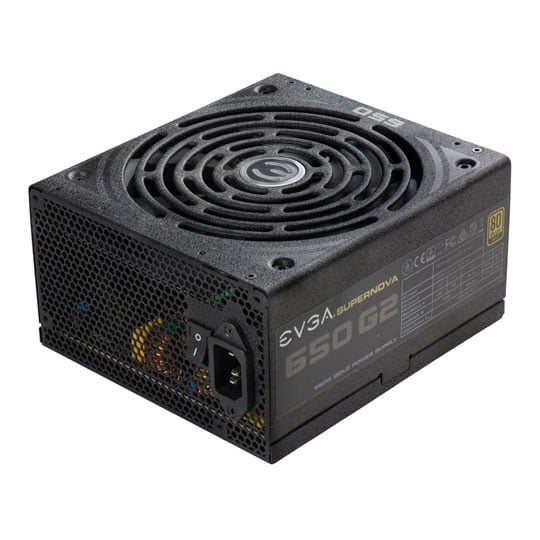

EVGA SuperNOVA 650 G2 Modular Power Supply 80PLUS Gold

650W EVGA SuperNOVA G2, Fully Modular, 80PLUS Gold ATX Power Supply, 54.1A Single +12V Rail, 140mm Double Ball Bearing

EVGA
Scan code: LN65635 Manufacturer code: 220-G2-0650-Y3 Request call
£94.99
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
3xs Approved High End
Delivery options £11.50 By DPD On 12th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together

EVGA 650 G2 80PLUS GOLD

EVGA 650 G2

650G2 - Unbeatable Performance

The unbeatable performance of the EVGA SuperNOVA G2 power supply line is now available in 650 watts. Based on the award winning G2 power supplies, this unit features 80 Plus Gold rated efficiency, and clean, continuous power to every component. The ECO Control Fan system offers fan modes to provide absolutely zero fan noise during low load to medium load operations. Backed by an award winning 7 year warranty, and 100% Japanese capacitor design, the EVGA SuperNOVA 650 G2 power supply offers unbeatable performance at an unbeatable value.

650G2 POWER CHART

AC Input
DC Output
Max Output
Combined
Output

Large 54.1 amp single + 12V Rail

100 - 240 VAC / 10A / 50 - 60Hz
+3.3V +5V +12V +5Vsb -12V
24A 22A 54.1A 3A 0.5A
110W 649.2W 15W 6W
650W @ +50C

Industrial grade testing all load and regulation testing done at 50C

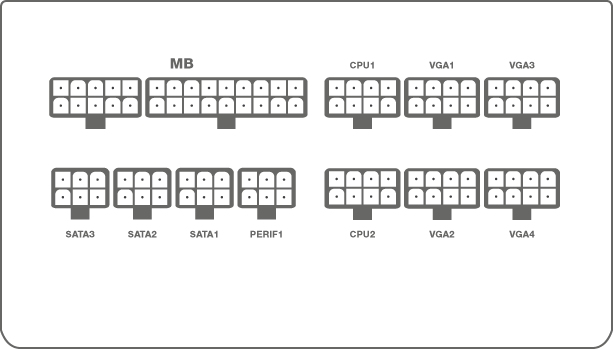

CONNECTIVITY

Standard ATX Form Factor
Will fit most mATX / ATX / EATX / HPTX & XLATX cases

Eco Mode
Fan does not switch on until PSU load is above 25%

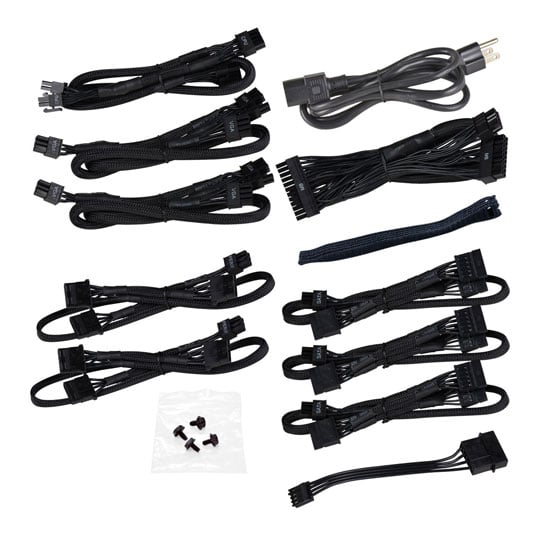

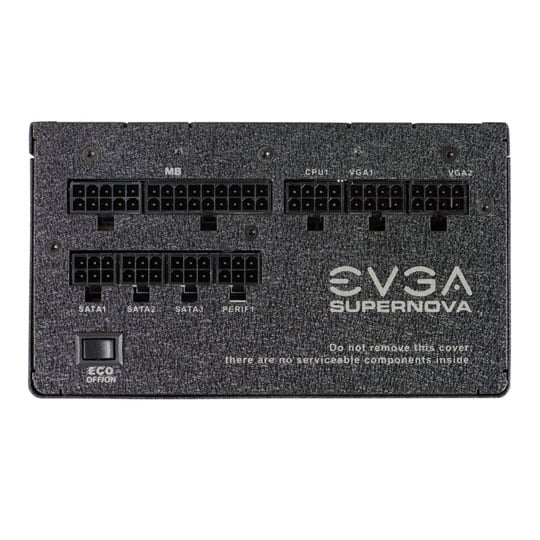

Fully Modular Cabling
Fully Modular to reduce clutter and improve airflow

FAN NOISE CHART

SuperNOVA 650 G2

(Eco ON)

HARDWARE PROTECTION

While being silent, this entire series has a large single 12volt rail, providing plenty of power to fuel all of your hardware. And lastly, because power without safety is pointless, a full suite of top tier circuit protections have been added to keep you running strong and more importantly keeping your hardware safe.

OVP

(Over Voltage Protection)

OPP

(Over Power Protection)

UVP

(Under Voltage Protection)

SCP

(Short Circuit Protection)

FEATURES

Single +12V Rail

A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware.

Double Ball Bearing Fan

A high-quality dual ball bearing fan gives the SuperNOVA 650 G2 an excellent thermal and acoustic profile, and its high reliability ensures a long PSU lifetime.

LLC Resonant Circuit Layout

Full DC to DC, LCC resonant circuit design improves efficiency.

Highest Quality Japanese Nippon Chemi-Con Solid State Capacitors

Get the most reliability and greatest performance with the use of the highest possible quality Japanese solid state capacitors.

80PLUS GOLD Efficiency

80 Plus certification ensures your power supply isn’t wasting power and turning it into exess heat. Under typical load this power supply is 90 efficient or higher.

Fully Modular

Fully modular designs allows every single cable to be removed from the power supply for ease of installation and removal. You can also leave off unnecessary cables to reduce case clutter and maximise case airflow.

Specifications
Specifications
Size ATX
Edition 650 G2
Wattage 650 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency 92 %
Cooling Fan
Fans 1 x 140mm
Internal +12V Rails Single Rail
Rail 1 +12V 54.1 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V N/A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4 Pin
Connectors
  • 2 x 4+4pin CPU +12V
  • 6 x 4Pin Fan
  • 2 x 6+2pin PCI-E Power
  • 1 x FDD Power
  • 9 x SATA Power
Dimensions 150 x 85 x 165 mm (WxHxD)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
84 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
EVGA/Scan
Telephone:
01788 247 298
Reviews
Rated 5 out of 5 by 3 reviewers.
Rated 5 out of 5 by Fantastic affordable product for first time builder! This is a very user friendly and relatively cheap product. I had no issues working with the power supply for my first build of a PC. The instructions were clear, and it was very easy to install and set up. As of yet I have ran in to absolutly no issues with the product and am very happy about my purchase! 21 April 2016
Rated 5 out of 5 by Quality Quality piece of kit for the price you can't ask for much more it does everything it says on the box. 04 December 2015
Rated 5 out of 5 by Great value This EVGA 650W PSU is based on the Superflower Leadex which is a great power supply unit. At this price, for a modular, gold efficiency rated PSU, you won't find anything else close. 15 October 2015
  • 2016-05-20 T12:53:04.621-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_3, tr_3
  • loc_en_US, sid_65635, prod, sort_default
1-3 of 3
Questions & Answers
(2 Questions : 2 Answers)

Product Q&A

Ask your questions. Share your answers.



« Back


Has staff answer
Has expert answer

1 answer

Is this a powerful enough PSU ?

I have a Evga 780 sc which i have oc'ed, a 3570k at 4.4ghz and 1.3v
Also all the usual extra's dvd drive, ssd and hdd. I not planning to sli so will this PSU be ok or would i need the 750w version instead. Thank you...
9 months ago
Customer avatar
by
Coventry, West Midlands, UK
Read all my Q&A

Please wait while more information about Cap137 is loaded.
Additional information about Cap137 could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
Hi,
There would be much more headway with the 750w version with that setup, 650w would be very much on the borderline.
9 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about LizN is loaded.
Additional information about LizN could not be loaded.
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0
Has staff answer
Has expert answer

1 answer

wath plug I get ? like show on image ?

1 month ago
Customer avatar
by
Read all my Q&A

Please wait while more information about erikasgi is loaded.
Additional information about erikasgi could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
Hello,

You would get a UK Kettle lead for this device.

Thanks,
3 weeks, 1 day ago
Customer avatar
by
Read all my Q&A

Please wait while more information about LizN is loaded.
Additional information about LizN could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
