EVGA SuperNOVA G5 650 Watt Full Modular 80+ GOLD Power Supply/PSU

650W EVGA SuperNOVA 650 G5, Full Modular 80PLUS Gold, SLI/CrossFire, Single Rail, 54.1A, 135mm Fan, ATX PSU

Thumbnail 1 : EVGA SuperNOVA G5 650 Watt Full Modular 80+ GOLD Power Supply/PSU Thumbnail 2 : EVGA SuperNOVA G5 650 Watt Full Modular 80+ GOLD Power Supply/PSU Thumbnail 3 : EVGA SuperNOVA G5 650 Watt Full Modular 80+ GOLD Power Supply/PSU Thumbnail 4 : EVGA SuperNOVA G5 650 Watt Full Modular 80+ GOLD Power Supply/PSU
Scan code: LN100692 Manufacturer code: 220-G5-0650-X3
RRP: £99.98
£64.99
FREE DELIVERY ON THIS ITEM
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jan to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

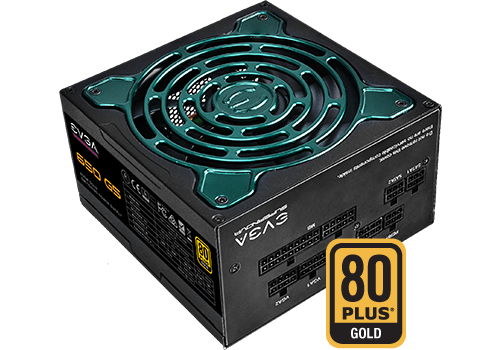

SuperNOVA G5 650 Watt 80 PLUS Gold PSU from EVGA

650 watt g5

Green is the new GoldThe EVGA SuperNOVA G5 joins the elite ranks of the EVGA 80 PLUS Gold power supplies. As the successor to the award-winning G3 series, the G5 power supplies continue to push the envelope with the latest certifications and Intel power-on standards. Starting with 80 PLUS Gold certification, fully-modular cable design, 100% Japanese capacitors, and an ultra-quiet 135mm Fluid Dynamic bearing fan with EVGA ECO mode, these power supplies are built for performance and silence. The EVGA G5 Series also includes a full suit of protections (OCP, OVP, UVP, OPP, SCP, OTP) for safety and security, and are covered by EVGA's industry-leading 10 year Warranty and Customer Support.

Never Lose Out on Power

back

GOLD RATED EFFICIENCY80 Plus certification ensures your power supply isn't wasting power and turning it into excess heat. Under typical load, this power supply is 91% efficient or higher.

Made for Great Performance

back

Active Clamp DesignThe G5 power supplies also feature an active clamp circuit design, DC-to-DC converter, and active PFC to provide tight voltage regulation and low ripple and noise.

Section Title

back

Fully Modular DesignUse only the cables you need, reducing cable clutter and improving case airflow.

Crafted with the Finest Components

4K Recording

100% Aluminium Solid State & Japanese capacitorsGet the most reliability and greatest performance with the use of the highest possible quality Japanese Capacitors.

Solid State Capacitors improve efficiency and reduce the impact of environmental factors after power is converted to DC, but before it leaves the power supply.

Designed for Efficiency

4K Recording

Eco ModeFluid Dynamic Bearings reduce the wear and tear on a fan's bearings, reduce noise, and feature a longer-lasting life than dual ball bearing fans. Couple that with EVGA ECO mode to turn off the fans under low to medium loads and you have a power supply that runs cool when necessary, and silently when not.

Specifications
Size ATX
Edition SuperNOVA G5
Wattage 650 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency (at 230Vac) 92 %
Cooling Fan
Fans 1 x 135mm
Internal +12V Rails Single Rail
Rail 1 +12V 54.1 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V N/A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 1 x 4-pin FDD Power
  • 4 x 4-pin Molex
  • 3 x 6+2-pin PCIe
  • 6 x SATA
Dimensions 150 x 86 x 150 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN100692
Model Number 220-G5-0650-X3
GTIN 1903140621806
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
120 months
Type:
Direct
DOA Period:
30 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan/EVGA
Telephone:
01788 247 298

Additional Notes:
Remaning warranty direct with manufacturer.

Loading Please Wait

Please wait . . .

TekSpek Guides
Power Supply units
Power Supply units
Date Issued: 28th Apr 2020

Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.

Read More

650W EVGA SuperNOVA 650 G5, Full Modular 80PLUS Gold, SLI/CrossFire, Single Rail, 54.1A, 135mm Fan, ATX PSU is rated 3.7 out of 5 by 3.
Rated 5 out of 5 by from Great PSU I've had this PSU for approx. 4 months now and had no problems whatsoever running a Ryzen 7 3700X with 32GB RAM and a GTX1070Ti graphics card. Very quiet PSU with eco mode, and the braided cables are a nice feature. Have used EVGA products in the past, and very happy with them. Will be upgrading to an RTX 3070 on release, and expect this PSU to continue performing well! Would certainly recommend.
Date published: 2020-09-06
Rated 1 out of 5 by from Coil Whine - Warning Sorry i can't recommend that PSU to anyone.... I read online how great is that PSU, 10yrs warranty, ECO mode etc... After i received that psu for 100 pounds which is not poor. I am very sad about my decision. I can buy standard Corsair or Seasonic also 650W for a almost half price. The first PSU have horrible Coil Whine. When You turning PC you can notice it... On Windows also.. When You moving mouse also. Nightmare start when You start playing games. You can accept noise with 60FPS, but on 120/144 FPS or more is not possible to accept it.. to noisy Coil Whine so i send PSU for RMA, after week i get second with different S/N Serial Number. And same problem, same topic... Maybe little more quiet in Windows but same problem in Games on High FPS rate... If You have silent PC silent CPU cooler silent GPU i for 200% not recommend for You to buy this PSU. ECO mode working fine (only to 20% load) but it is enaught... but that is completly pointless when Coil Whine is much more noisy.. And what now i should do ? Everywhere are low stock or out of stock? allready i don't get PC for few days.. I need to deal with it for a while and then i don't know send for RMA second time or push EVGA to give back money. Shittest PSU i ever buy. I will keep myself far away from EVGA brand from now. But more here is propably fault the manufacturer how they desing that PSU. Btw. I read after my problems the G3 series be produced by different manufacturer then G5 series. // Gosh worst part I ever buy
Date published: 2020-06-21
Rated 5 out of 5 by from Very good product and delivery service The power supply is very easy to install and keep all cables tidy.
Date published: 2020-06-03
