Scan code: LN136093 Manufacturer code: MPY-650V-AFBAG-UK

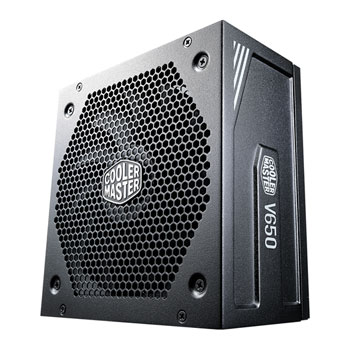

Cooler Master V Gold V2 650 Watt Fully Modular 80+ Gold Black PSU/Power Supply

650W Cooler Master V Gold V2, Black, Fully Modular, 80PLUS Gold, Single Rail, 54.1A, 135mm FDB Fan, ATX PSU

Thumbnail 1 : Cooler Master V Gold V2 650 Watt Fully Modular 80+ Gold Black PSU/Power Supply Thumbnail 2 : Cooler Master V Gold V2 650 Watt Fully Modular 80+ Gold Black PSU/Power Supply Thumbnail 3 : Cooler Master V Gold V2 650 Watt Fully Modular 80+ Gold Black PSU/Power Supply Thumbnail 4 : Cooler Master V Gold V2 650 Watt Fully Modular 80+ Gold Black PSU/Power Supply
Scan code: LN136093 Manufacturer code: MPY-650V-AFBAG-UK
Order now and get it tomorrow, Mon 11th Dec
£114.49
Get it Tomorrow, 11 DecIn stock
From £9.54 / month (APR 0%) or 0% for 4 months
Monthly Payment: £9.54
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £114.49
Total inc. interest: £114.49
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 11th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

Power Up

The V Gold - v2 series delivers a top-shelf power supply unit in 550, 650, 750, and 850 wattage levels. It offers an 80 PLUS Gold efficiency rating, full-modular cabling, optional semi-fanless operation with a hardware based hybrid switch, a 135mm FDB fan, 16AWG PCIe high efficiency cables, and a 10 year warranty. This series has brought together a number of innovations and improvements from past products to form a PSU that meets all your needs. The 100% Japanese capacitors, half-bridge LLC resonant converter, and DC-DC circuitry work together, resulting in a product that even the pros can respect.


80 Plus Gold Certified

The efficiency of your power supply unit is important because it directly affects you system's performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU. It only reflects the unit's ability to move power from the wall to your components. The higher a PSU's efficiency is, the lower the total amount of power it needs to power your system. The V Gold series has an 80 PLUS Gold efficiency rating, meaning it has a guaranteed typical efficiency of 90%.


Performance Driven Topology

The V Gold - v2 is a professional grade power supply unit made for the normal user. It's more than just the 80 PLUS Gold efficiency rating. It's the performance, stability, reliability, lifespan, and so much more. That quality starts with the technology used on the inside. The half-bridge LLC resonant converter and DC-DC technology, made with 100% Japanese capacitors, work together to create a PSU that offers reliable and stable voltage outputs for safer, more reliable performance and higher efficiency

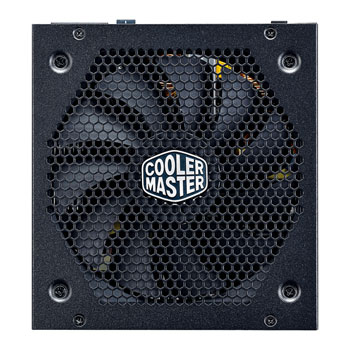

A Bigger, Better Fan


The V Gold - v2 keeps cool under pressure. The fluid dynamic fan bearing creates less friction, making it great for low RPM operations. This technology, combined with a larger 135mm fan, keeps the fan running smoothly and efficiently for longer, keeping the noise level down and extending the lifespan of the PSU.

The cooling system isn't just bigger, it's better. And when you aren't pushing your system too hard, the semi-fanless mode will keep the unit completely silent when under 40% maximum load. The built in analogue hybrid switch allows you to disengage fanless mode at any time with a simple button press for testing, debugging, or simply achieving maximum cooling at all times.


Full-Modular Cabling

Cabling is often the most troublesome part of building a PC. The V Gold can't solve all your cabling problems but it's an excellent place to start. With full control and customization of your cables, you don't have to have excess cables cluttering your PC. This level of control can reduce cable bulk which can increase airflow and make your system look as great as it runs. And with the included 16AWG PCIe cables, you'll get increases to both efficiency and style.


Improved PCIE Cable Conductivity

The V Gold - v2 series comes with 16AWG PCIe cables. These are thicker than current industry standard 18AWG cables, meaning less heat resistance during use. The reduction in heat resistance improves efficiency and stability so your components can get the most out of that 80 PLUS Gold rating. As an added bonus, the lower resistance means less ambient heat in your case being expelled from your cables, making your entire system safer and cooler than the same setup with standard issue cables.


10 Year Warranty

The V Gold series offers top quality power supply units that can and will deliver professional grade performance at normal use wattage levels. Just because you don't need 1000 watts of power doesn't mean you shouldn't get the quality that goes with it. You can trust this PSU for all your computing needs, whether it's casual work or hefty, continuous sessions. Just in case you aren't sure, all V Gold series models come with a 10 year warranty. Chances are you'll be changing homes before you need to change this power supply.


Features


• 80 Plus Gold Certified.
• Half-bridge LLC Resonant Converter And DC-DC Technology.
• Silent 135mm FDB Fan.
• 40% Semi-fanless Mode With Hybrid Switch.
• 16AWG PCIE Cables.
• 10 Year Warranty.

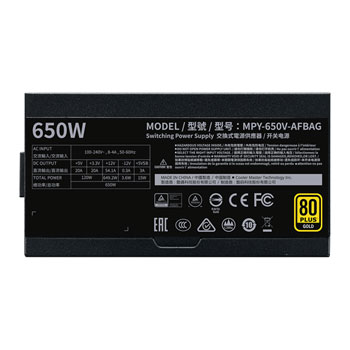

Specifications
Form Factor ATX 3.0
Edition V Gold V2 650W
Wattage 650 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency (at 230Vac) 90% %
Cooling Fan
Fans 1 x 135mm
Internal +12V Rails Single Rail
Rail 1 +12V 54.1 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 54.1 A
Modular Yes
Modularity Full Modular
SLI/CrossFire No
EPS 12V No
Motherboard Connector 24-pin

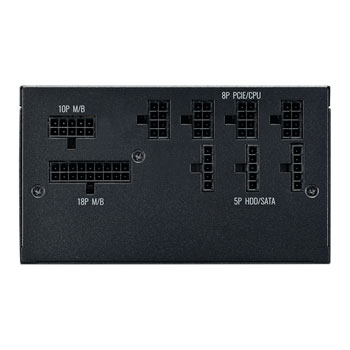

Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 4 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 1 x 8-pin CPU +12V (EPS)
  • 8 x SATA
Dimensions 150 x 86 x 160 (WxHxD)
Package Type Retail
Warranty 10 Year
Additional Information
Scan Code LN136093
Model Number MPY-650V-AFBAG-UK
GTIN 4719512091401
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
120 months
Type:
Return to base
DOA Period:
30 days
RTB Period:
28 months
