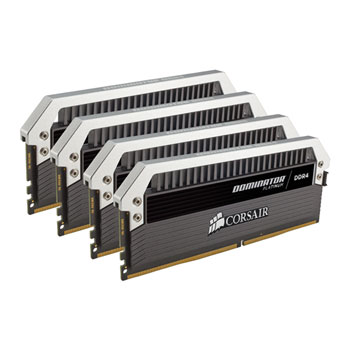

Corsair Dominator 64GB 3000MHz DDR4 Memory Kit 4x16GB
64GB (4x16GB) Corsair DDR4 Dominator Platinum, PC4-24000 (3000), Non-ECC Unbuffered, CAS 15-17-17-35, XMP 2.0, 1.35V
Corsair DDR4 Dominator Platinum 64GB (4x16GB) 3000MHz Memory (White)
CORSAIR DDR4 DOMINATOR PLATINUM LPX RAM
If you are looking for memory that can run your high-end video editing or intense data processing then this compilation of DDR4 memory would be a great choice. Dominator Platinum boasts premium quality RAM and with the sheer size of this set you can rest assured your processing will go smoothly. The speeds and timings embedded within this DDR4 memory are running at a medium for DDR4 technology. Multi-media, gaming or any other commonly used applications on a desktop PC shouldn’t be an issue for this premium RAM.
3000MHz
Speed
15-17-17-35
CAS Latency
1.35V
Voltage
64GB (4x16GB)
Capacity
DOMINATOR PLATINUM FEATURES
1
Configurable and upgradable top bar
2
Configurable and upgradable light pipe
3
Patented Dominator DHX Cooling Technology
4
Corsair Link to monitor temperature and voltage
5
Machined aluminum hear sinks for convective heat dissipation
6
Custom PCB optimized for conductive heat transfer out of the memory
7
Hand sorted performance ICs: the foundation for highly overclockable memory
MEMORY PERFORMANCE ADVANCEMENTS
Voltage
(Lower is better)
Density
(Higher is better)
Speed
(Higher is better)
DDR
DDR2
DDR3
DDR4
Experience the True Power of DDR4 RAM
It was 2007 that the DDR3 standard was announced and in the years since then technology has only been pushed further. Eventually the memory standard was pushed to the edge of DDR3 limits, until DDR4 smashed through those limits! Corsair DDR4 doubled the bandwidth and dramatically increase clock speeds, whilst consuming less power than ever before.
INSTALLING DDR4 MEMORY
Motherboard Socket DDR4 Optimization
Pin Out: 288
Dominator Platinum DDR4 form factor is optimized and compatibility-tested for the latest Intel X99 and 100 series motherboards, forging reliably fast performance. With any standard DDR4 DIMM memory socketed motherboard you shouldn’t have any trouble installing the powerful Dominator Platinum DDR4 series.
OVERCLOCKING DDR4 RAM
Pushing RAM Performance Even Further
Corsair have heavily designed the Dominator Platinum DDR4 around high-performance overclocking. Each module from the Dominator RAM series is built with highly-screened memory ICs and an eight-layer PCB, with further overclocking improvments through the efficient heat spreader that provides effective cooling.
PCB System
These DDR4 memory sticks boast an eight layer PCB system. If your computer is trying to squeeze too much information into one layer then you are going to experience a significant rise in temperature. That rise in temperature will evetually cause overheating, resistances changes and things will stop working correctly - utlizing eight layers helps eliminate this problem.
Screened IC's
Each computer memory module is equipped with numerous ICs or Integrated Circuits. Each IC in the Corsair DDR4 Dominator Platinum series is rigorously tested to check for defects in the technology. This is done by applying particular ‘patterns’ to them to see if the outcome has any faulty circuit behavior, and if so determine the cause of failure. Using the best of the best IC’s leads to highly overclockable memory.
DHX DOMINATOR HEAT SPREADER
Cooler Memory for Better Performance
The heat spreader on Corsair Dominator DDR4 memory is made of pure aluminum, creating a faster heat dissipation and a much cooler operation. Usually the overclocking overhead is limited by operating temperature, but not for the Dominator Platinum. Due to the unique design of the heat spreader, the temperature is continuously lowered as heat is pulled away from the ICs and into your system’s cooling path - allowing you to push it even harder!
EASY XMP RAM OVERCLOCKING
Utilize XMP for Overclocking in Seconds
XMP 2.0 is supported by both Dominator Platinum DRAM and Intel’s X99 and 100 series motherboards. Simply select XMP mode in the BIOS and it will automatically adjust to the fastest safe speed for the Corsair DDR4 Platinum kit. You’ll get amazing, reliable performance without lockups or other strange behavior. Enjoy trouble-free, automatic overclocking with the support of XMP 2.0.
DOMINATOR DDR4 LIGHTKIT
x2 light Bars | 2x Arctic White Colour Inserts | 2x Cerulean Blue Colour Inserts | z10 Spare Screws and Nuts | Installation Tool | Quick Start Guide
Customize your DDR4 Memory
With the Dominator Platinum memory you can personalize your modules more than ever before. The Dominator Platinum Light kit contains all you will need to upgrade two memory modules to either Corsair signature Arctic White or Cerulean Blue illumination - or even one of each. Upgrade by simply removing the top bar and install a coloured lens before reattaching the bar. All needed tools are included.
LightKit comes with specific Dominator memory, always make sure to check
