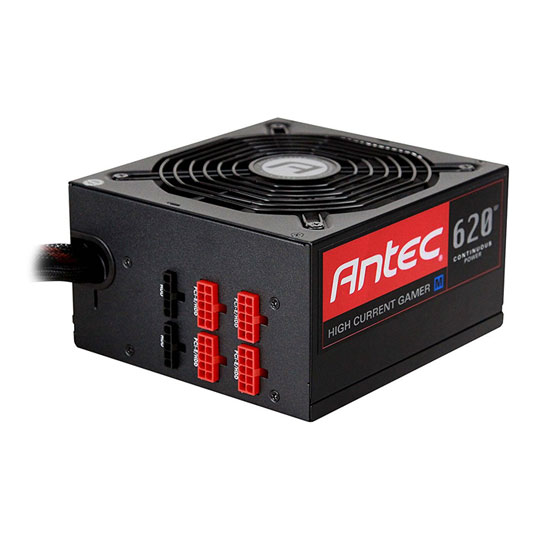

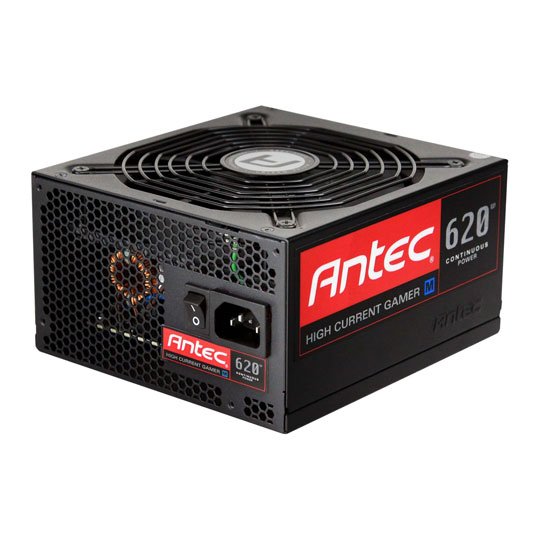

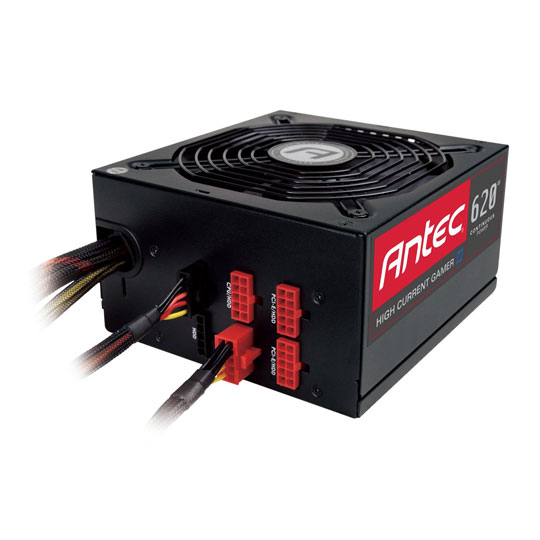

Antec 620W Hybrid Modular Power Supply

620W Antec High Current Gamer, Hybrid Modular, 80 PLUS Bronze, 1x135mm, ATX v2.32, PSU

Scan code: LN44241 Manufacturer code: 0-761345-06219-0 Request call
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 22nd Jan 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Antec's HCG M power supplies are the perfect combination of power and efficiency.

The HCG M features special heavy-duty High Current connectors and cabling that supply extreme levels of power, and superb efficiency thanks to 80 PLUS® Bronze certification and Active PFC.

Highest-quality connectors, Japanese-brand capacitors, and a quiet 135 mm double ball bearing fan complete the package. The HCG-620M features High Current Cable Management and 10-pin modular connectors.

If loads of power, High Current engineering and extreme efficiency are what you're after, the HCG M is the PSU for you.
Features • 620 watts of Continuous Power
• 80 PLUS® Bronze certified - up to 87% efficient
• High Current Hybrid Cable Management - special 10-pin and 5-pin modular connectors for High Current rail
• Quiet 135 mm Double Ball Bearing cooling fan
• Stealth Wires: all wires darkened for minimal visibility in chassis
• All Japanese brand capacitors for reliability
• Thermal Manager: an advanced low voltage fan control for optimal heat & noise management
• Up to 90% power available on +12V rail
• ATX12V version 2.32 and EPS12V version 2.92 compliant
• Heavy-duty protection circuitry on all rails prevents damage
Size ATX
Wattage 620 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency 87 %
Cooling Fan
Fans 1 x 135mm
Internal +12V Rails Single Rail
Rail 1 +12V 48 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 48 A
Modular Yes
Modularity Hybrid Modular
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 20+4-pin
  • 1 x 4+4-pin CPU +12V (EPS)
  • 6 x 4-pin Molex
  • 2 x 6+2-pin PCIe
  • 1 x FDD Power
  • 6 x SATA
Dimensions 150 x 86 x 160 (WxHxD)
Package Type

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

60 months
Return to base
DOA Period:
14 days
RTB Period:
60 months
Manufacturer Contact Details
Customers also bought
620W Antec High Current Gamer, Hybrid Modular, 80 PLUS Bronze, 1x135mm, ATX v2.32, PSU is rated 1.0 out of 5 by 1.
Rated 1 out of 5 by from A costly experience It looks good so I just couldn't believe that it failed within 24 hours of being installed. As a result, I bought replacement, motherboard, CPU, CPU fan, graphics card and memory and wasted a fortnight, engaged a PC specialist and then postage. Didn't work properly under even moderate loads but did spin fans etc. Quality Assurance isn't what it should be.
Date published: 2015-07-14
