Scan code: LN70661 Manufacturer code: CP-9020105-UK

Corsair SF600 600W SFX Silent PSU/Power Supply

600W Corsair SF600 High Performance, 80PLUS Gold, Full Modular, SLI/CrossFire, Single Rail, 50A +12V, EPS 12V, 92mm Fan

Thumbnail 1 : Corsair SF600 600W SFX Silent PSU/Power Supply Thumbnail 2 : Corsair SF600 600W SFX Silent PSU/Power Supply Thumbnail 3 : Corsair SF600 600W SFX Silent PSU/Power Supply Thumbnail 4 : Corsair SF600 600W SFX Silent PSU/Power Supply Corsair SF600 600W SFX Silent PSU/Power Supply : video thumbnail 1
Scan code: LN70661 Manufacturer code: CP-9020105-UK
£101.99
From £9.16 / month (APR 14.9%)
Monthly Payment: £17.70
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £101.99
Total inc. interest: £106.18
Monthly Payment: £9.16
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £101.99
Total inc. interest: £109.85
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd Nov 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

SF600 - Corsair Power Supply - Fully Modular Silent SFX PSU

sfx600

Corsair SFX 600W Power SupplyCorsair SF600 series power supplies are built with the highest quality components to deliver 80 PLUS Gold efficient power in a small form factor to your PC reducing costs and excess heat. Fully modular cables make PC builds and upgrades easy, as you only need to install the cables your system requires. Zero RPM Mode means an SF series PSU is virtually silent at low and medium loads, and even at maximum power, a low noise fan ensures quiet operation. Quiet, efficient and dependable, an SF600 PSU has everything you need to power your next high-performance small form factor system, for years to come.

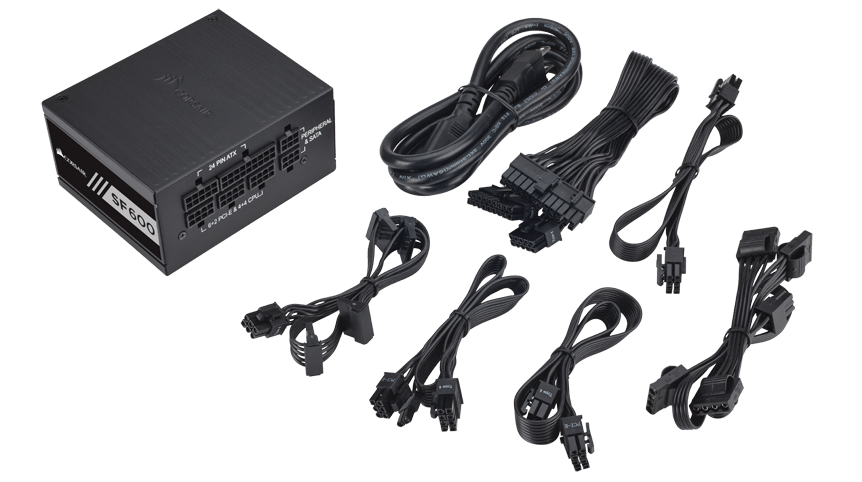

Fully Modular Connectivity

connections

KEEP YOUR BUILD LOOKING CLEAN The fully modular design of the SFX power supply means that during your build you can mount the PSU in the case first and then attatch only the cables you need, making builds and upgrades easy with great looking results. Simply connect the cables you need and keep the rest safe for future upgrades.

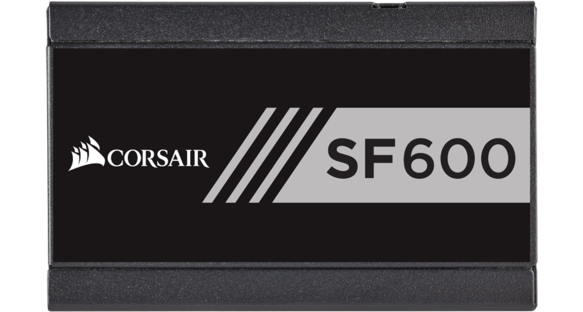

Compact Size

compact

SEVEN-YEAR WARRANTY A 125mm-long casing ensures an easy fit in almost all modern enthusiast PC cases. Your guarantee of reliable operation that will last across several system builds.

Completely Modular

modular

BUILD LIKE A PRO Only connect the cables your system needs, making clean and tidy builds easier whilst improving airflow.

Corsair SF600 Key Features

Corsair Quality

80PLUS - Gold

80 PLUS Gold CertifiedGold certification ensures high efficiency operation for less excess heat and lower operating costs.

Japanese Capacitors

Japanese 105°C capacitorsPremium internal components ensure solid power delivery and long term reliability.

lownoise

Zero RPM Fan ModeFan doesn’t turn on until it’s needed, so you’ll enjoy virtually silent operation at low and medium loads.

Specifications
Size ATX
Edition SF600
Wattage 600 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency
Cooling Fan
Fans 1 x 92mm
Internal +12V Rails Single Rail
Rail 1 +12V 50 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 50 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 1 x 4-pin Molex
  • 2 x 6+2-pin PCIe
  • 4 x SATA
Dimensions
Package Type
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
84 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
84 months
Manufacturer Contact Details
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

TekSpek Guides
80 Plus certification
80 Plus certification
Date Issued: 18th Nov 2010

Conceived back in 2004 and brought to market just a year later, the 80 PLUS initiative is one of many standards introduced in an effort to increase energy efficiency in modern technology. Targeting computer power supplies, it awards PSUs that are able to achieve an energy efficiency of over 80 per cent at varying workloads and a power factor of 0.9 or more at 100 per cent load.

Read More

Green computing at home
Green computing at home
Date Issued: 20th Nov 2008

This TekSpek explains what Green Computing is, what it means to the consumer, and how energy-efficient components can be beneficial in the home.

Read More

Reviews
600W Corsair SF600 High Performance, 80PLUS Gold, Full Modular, SLI/CrossFire, Single Rail, 50A +12V, EPS 12V, 92mm Fan is rated 4.4 out of 5 by 5.
Rated 4 out of 5 by from Ok It is a shame that as a small factor PSU it does not come with a back plate or mount solution , most of micro itx builds does not support this size of power supply. So it would be useful to have it... also the unit is quite loud in operation I would buy bigger PSU next time just because of the noise
Date published: 2017-07-28
Rated 5 out of 5 by from Very small! This sfx psu has ample wattage at a very small and compact size. It's very quiet with the fan only turning on whilst under a moderate load. Nice understated design in either orientation. The only downside to this psu is the stiff cables, and they are also very short. Whilst they would work in a very small itx case they don't reach without extensions in fractal nano s which I use.
Date published: 2017-02-02
Rated 4 out of 5 by from Ok but could be better for the price Slightly disappointing. The PSU itself is very good with usual Corsair quality and is quiet. These small form factor power supplies have better internal components so i expect to pay more but the the leads are not only very cheap in quality (with also no sleeved upgrade options yet) but the ATX MB lead is very short and even in my micro ITX case (InWin 901) had no chance of reaching the MB. So i had to spend another £10 on and extension lead. Not ideal.
Date published: 2016-10-20
Rated 5 out of 5 by from Really excellent PSU I bought this PSU to use in conjunction with a Silverstone FT03B case. Whilst it does fit, I was mistaken in thinking the case required such small form-factor. My component selection antics aside, this PSU is exceptional. The modular cables allow for a very straightforward build, the cooling fan is whisper-silent (it actually switches off until a certain temperature threshold is reached), and it has been completely stable and consistent despite my system being left on for days at a time. I gave this a 5* for value due to the fact that it really is worth investing a little extra for something of this standard. I imagine this will last me for many builds to come.
Date published: 2016-07-03
Rated 4 out of 5 by from Amazing product; some flaws. This unit is an absolute beast. The component quality is high and despite being a Gold rated unit it's actually bordering on a Platinum efficiency. The build quality is what you'd expect from Corsair. It's extremely quiet to the point where I don't hear it at all over my other case fans. It's pretty much the perfect power supply for small form factor high powered build. The only negative I have are the Type-4 cables that it's supplied with. They're stiff. Really stiff. Trying to get these to route cleanly in a small space is next to impossible. Most of my build time was actually spent wrestling with these cables. Now everything is together and I won't be doing any major changes for a while it's not a problem, but just be aware that it will cause difficulty when building. Overall, fantastic product that I couldn't recommend more. Just be patient with cables; I hope Corsair offers some softer ones in the future.
Date published: 2016-05-10
  • y_2018, m_11, d_19, h_14
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.9
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_5
  • loc_en_GB, sid_70661, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Actual size?

What are the actual dimensions of this PSU? The details state that it is ATX while the PSU is also described as SFF... but no actual dimensions are given.
Asked by: SchizoCockney
I was fooled as well that this is ATX but it is not ! this is smaller than ATX and does not fit to any cases I saw in the shop, you need to buy a special backplate to mount it, just don't bother it is too loud in operation anyway.
Answered by: ncix
Date published: 2017-09-30
