Scan code: LN139787 Manufacturer code: TL-SG1006PP

tp-link 6-Port Gigabit Desktop Switch with 4-Port PoE

6-Port tp-link TL-SG1006PP Gigabit Desktop Switch, Unmanaged, 6x 10/100/1000Mbps, 3x PoE+/1x PoE++, Plug and Play

Thumbnail 1 : tp-link 6-Port Gigabit Desktop Switch with 4-Port PoE Thumbnail 2 : tp-link 6-Port Gigabit Desktop Switch with 4-Port PoE Thumbnail 3 : tp-link 6-Port Gigabit Desktop Switch with 4-Port PoE Thumbnail 4 : tp-link 6-Port Gigabit Desktop Switch with 4-Port PoE
Scan code: LN139787 Manufacturer code: TL-SG1006PP
Order now and receive it by Tuesday, 18th June
£69.98
Get it Tuesday, 18 JunIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 18th Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

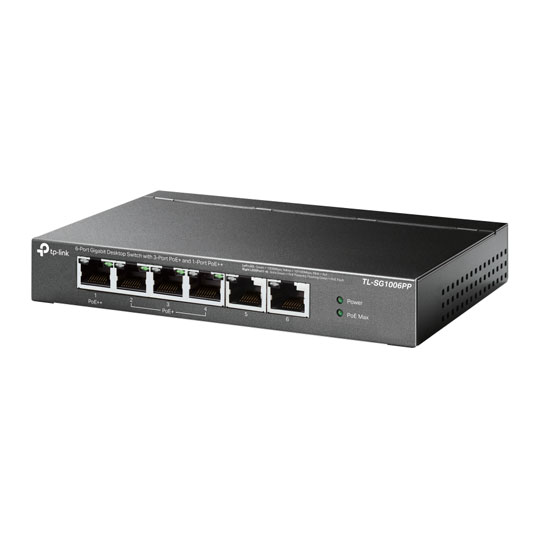

tp-link TL-SG1006PP 6-Port Gigabit Desktop Switch

TL-SG1006PP is an unmanaged switch with 6 Gigabit ports that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1 and IEEE 802.3af/at compliant Powered Devices (PDs) at port 2-4. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.


Power Over Ethernet

4 RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. They can automatically detect and supply power with those IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1 and IEEE 802.3af/at compliant Powered Devices (PDs) at port 2-4.


Overload Arrangement

TL-SG1006PP has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is = 64 W*, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.


Intelligent Power Management

Priority (port 1 > port 2 > port 3 > port 4): This function will help protect the system when the system power is overloaded. For example, port 2, 3, and 4 is using 18 W respectively (maximum power per port is 30 W); the system power is 54 W in total. If there is an additional PD inserted to port 1 with 25 W, and then the system will cut off the power of port 4 because of the overloaded power, this means port 2 and 3 will use 18 W respectively and port 1 will use 25 W, no power will be supplied to port 4.


Highlight Performance

• Up to 250 m PoE power supply and data transmission under Extend Mode for port 1-2.
• With PoE Auto Recovery, the switch will constantly detect the data transmission with PoE-powered devices (PD) for port 1-4. When the switch finds that a PD stops sending data packets to the switch for a long period, the switch will reboot it automatically.
TL-SG1006PP is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++ TL-SG1006PP is a great selection for expanding your network.

Features


• 6× 10/100/1000 Mbps RJ45 ports.
• With one PoE++ port and three PoE+ ports, transfers data and power on one single cable.
• Works with IEEE 802.3af/at/bt compliant PDs.
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic.
• Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port.
• Supports PoE Power up to 64 W for all PoE ports.

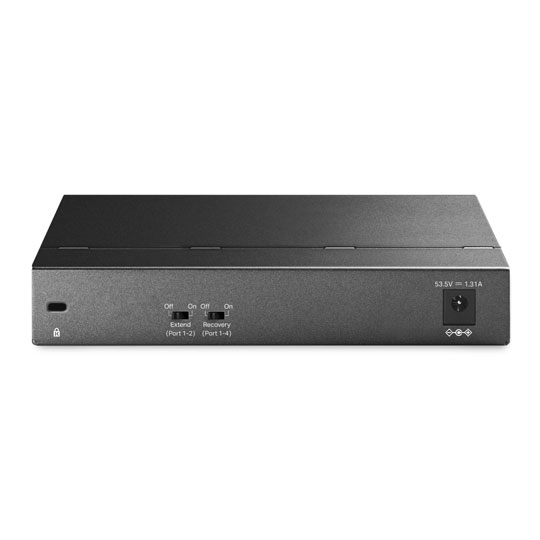

• Up to 250m data and power transmitting range under Extend Mode.
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
• Plug and Play, no configuration and installation required.

Specifications
Edition Unmanaged Switch
Form Factor Desktop
Total Network Ports 6 x 10/100/1000 (Gigabit) RJ-45
PoE Support Type PoE
No. of Ports Providing PoE 4 x 10/100/1000 (Gigabit) RJ-45 (PoE Pass-through)
Other Non-Network Ports
Switching Capacity 12 Gbps
Non-Blocking Throughput
Forwarding Rate 8.928 Mpps
MAC Address Table Size 4K Entries
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3x
Acoustic Noise
Max. Power Consumption 71.46 W
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF)
Power Supply
Material
Includes
Dimensions (WxHxD) 158 x 25 x 101 mm
Weight
Additional Information
Scan Code LN139787
Model Number TL-SG1006PP
GTIN 4895252500332
