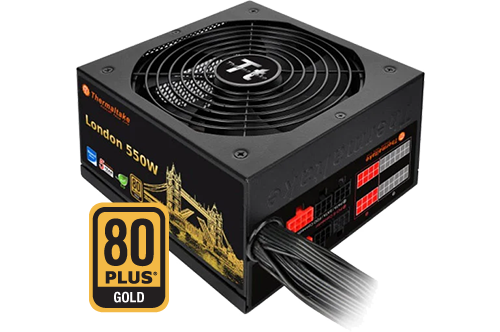

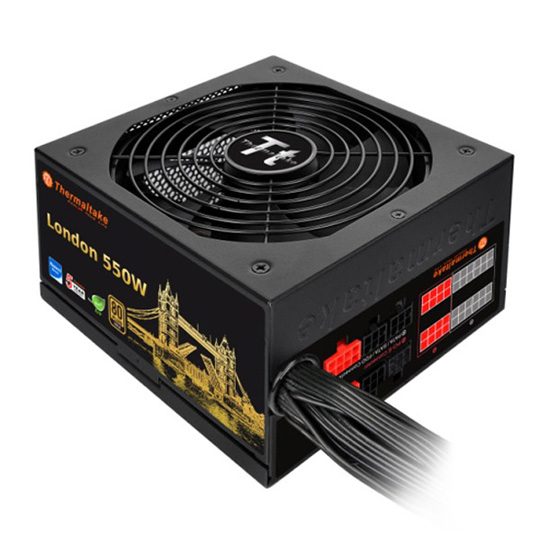

Thermaltake London 550W Quiet Hybrid Modular 80+ GOLD Power Supply
550W ThermalTake London, Hybrid Modular, 80PLUS Gold, 140mm Quiet Fan ATX, PSU
By DPD On 21st Oct 2019
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Silent Cooling Minimizes Noise Levels
Ultra-quiet 14cm fan comes with a noise level of around 18dB at typical load to provide silent cooling for your PC.
80 PLUS Gold Certified and Haswell Ready
Deliver up to 87%-92% efficiency under real world load conditions to promise lowest power losses. Besides, Toughpower Grand is already prepared for the new Intel processors Haswell to achieve maximum energy savings.
Flat Modular Cables
All new low-profile flat modular cables that not only increased the airflow and made chassis thermal performance improved, but also allow for effortless cable routing.
High Quality Japanese Capacitor
High quality Japanese capacitor produces supreme performance with low impedance characteristics. The stable operation works for longer time with excellent reliability to enhance the power supply performance.
Massive and Dedicated +12V Output
Toughpower series is equipped with a pure and powerful single +12V rail to provide the best compatibility for your PC. Features Model TP-550AH3CCG-A
Type Intel ATX 12V V2.3 & EPS 12V standards
Max. Output Capacity 550W
Peak Output Capacity 660W
Dimension (H x W x D) 86mm x 150mm x 160mm
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time 12msec (minimum) @ 80% of full load at 115V / 230V input.
Input current 10A
Input Frequency Range 47 Hz - 63 Hz
Input Voltage 100 Vac- 240 Vac
Operating Temperature +0? to +40?
Operating Humidity 20% to 90%,non-condensing
Storage Temperature -40 ? to +70 ?
Storage Humidity 5% to 95%, non-condensing
Cooling System 140mm double ball-bearing fan, 1500±10%R.P.M.
Efficiency 87-92% efficiency @ 20-100% load
MTBF 120,000 hrs minimum
Safety Approval UL/ TUV/ CE/ FCC/ BSMI/ EAC certification
PCI-E Connector PCI-E 6+2pin x 2
Protection OVP, OPP,SCP
|80 PLUS Certification|
|Max. Efficiency (at 230Vac)|
|Internal +12V Rails||Single Rail|
|Rail 1 +12V||45.5 A|
|Rail 2 +12V||N/A|
|Rail 3 +12V||N/A|
|Rail 4 +12V||N/A|
|Rail 5 +12V||N/A|
|Rail 6 +12V||N/A|
|Max. Combined Output +12V||N/A|
|Model Number||W0492RE / TP-550AH3CCG-A|
