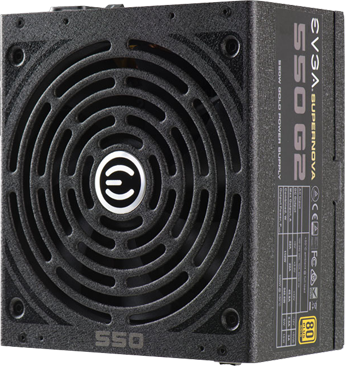

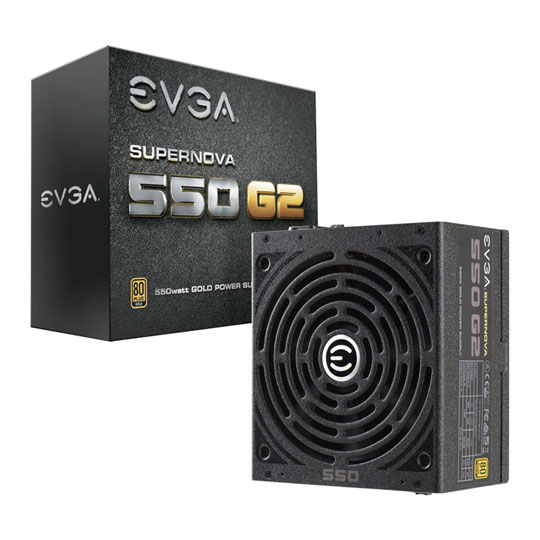

EVGA SuperNOVA 550 G2 Power Supply - 80PLUS Gold

550W EVGA SuperNOVA G2 PSU, Fully Modular, 80PLUS Gold ATX, SLI/Crossfire Ready

EVGA
Scan code: LN66048 Manufacturer code: 220-G2-0550-Y3 Request call
£84.98
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
3xs Approved High End
Delivery options £11.50 By DPD On 12th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together

EVGA 550G2 80PLUS GOLD

EVGA 550 G2

550G2 - Unbeatable Performance

The unbeatable performance of the EVGA SuperNOVA G2 power supply line is now available in 550 watts. Based on the award winning G2 power supplies, this unit features 80 Plus Gold rated efficiency, and clean, continuous power to every component. The ECO Control Fan system offers fan modes to provide absolutely zero fan noise during low load to medium load operations. Backed by an award winning 7 year warranty, and 100% Japanese capacitor design, the EVGA SuperNOVA 550 G2 power supply offers unbeatable performance at an unbeatable value.

550G2 POWER CHART

AC Input
DC Output
Max Output
Combined
Output

Large 45.8 amp single + 12V Rail

100 - 240 VAC / 10A / 50 - 60Hz
+3.3V +5V +12V +5Vsb -12V
22A 22A 45.8A 3A 0.5A
110W 549.2W 15W 6W
550W @ +50C

Industrial grade testing all load and regulation testing done at 50C

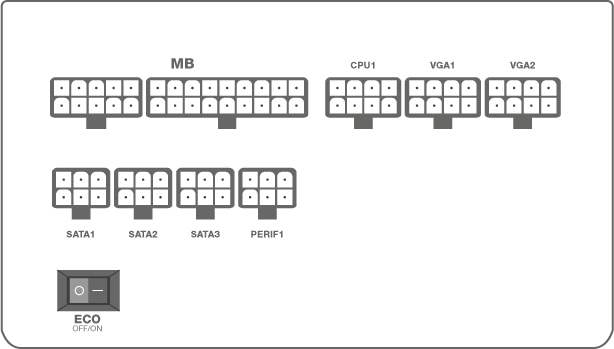

CONNECTIVITY

Standard ATX Form Factor
Will fit most mATX / ATX / EATX / HPTX & XLATX cases

Eco Mode
Fan does not switch on until PSU load is above 25%

Fully Modular Cabling
Fully Modular to reduce clutter and improve airflow

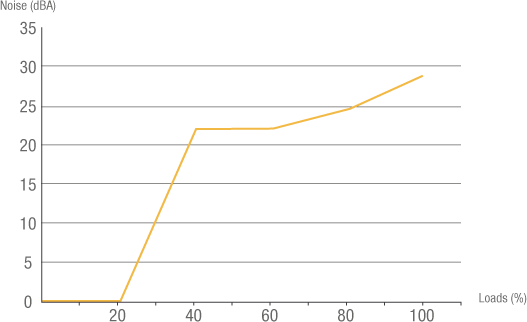

FAN NOISE CHART

SuperNOVA 550G2

(Eco ON)

HARDWARE PROTECTION

While being silent, this entire series has a large single 12volt rail, providing plenty of power to fuel all of your hardware. And lastly, because power without safety is pointless, a full suite of top tier circuit protections have been added to keep you running strong and more importantly keeping your hardware safe.

OVP

(Over Voltage Protection)

OPP

(Over Power Protection)

UVP

(Under Voltage Protection)

SCP

(Short Circuit Protection)

FEATURES

Single +12V Rail

A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware.

Double Ball Bearing Fan

A high-quality dual ball bearing fan gives the SuperNOVA 550 G2 an excellent thermal and acoustic profile, and its high reliability ensures a long PSU lifetime.

LLC Resonant Circuit Layout

Full DC to DC, LCC resonant circuit design improves efficiency.

Highest Quality Japanese Nippon Chemi-Con Solid State Capacitors

Get the most reliability and greatest performance with the use of the highest possible quality Japanese solid state capacitors.

80PLUS GOLD Efficiency

80 Plus certification ensures your power supply isn’t wasting power and turning it into exess heat. Under typical load this power supply is 90% efficient or higher.

Fully Modular

Fully modular designs allows every single cable to be removed from the power supply for ease of installation and removal. You can also leave off unnecessary cables to reduce case clutter and maximise case airflow.

Specifications
Specifications
Size ATX
Edition Supernova G2
Wattage 550 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency 90 %
Cooling Fan
Fans 1 x 140mm
Internal +12V Rails Single Rail
Rail 1 +12V 45.8 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V N/A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4 Pin
Connectors
  • 1 x 4+4pin CPU +12V
  • 3 x 4Pin Fan
  • 2 x 6+2pin PCI-E Power
  • 1 x 6pin PCI-E Power
  • 1 x FDD Power
  • 9 x SATA Power
Dimensions 150 x 85 x 165 mm (WxHxD)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
120 months
Type:
Direct
DOA Period:
30 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan/EVGA
Telephone:
01788 247 298
Reviews
Rated 5 out of 5 by 2 reviewers.
Rated 5 out of 5 by Top tier PSU! I'd like to start off saying I built an Athlon AMD FM2+ system back in 2013 which had a CX 500w bronze installed with it. Then in October of 2014 I upgraded to a Haswell i5 system (I actually got the MOBO and CPU off Scan too) then in early 2015 I installed an MSI GTX 970 4GB which is amazing but after a few months my CX 500w bronze started to make clunky noise when running so I decided it was unsafe to use any more (I knew I would have to replace in about 1-2year of having it). So I began searching online for a new PSU using forums and I found many people who gave me lots of good advice about different tiers of PSU and what I should be looking for. So I decided to get the EVGA SuperNova G2 550w Gold PSU. When I received it took me a bit to figure out I had to stick the big ATX cable that was split into two cables into the PSU and then the big large cable at the end into the MOBO. It powered up like a dream and I had the power saving mode clicked on which is a little switch on the PSU that disables the fan till the PSU requires cooling so basically when using the pc for general browsing and Hearthstone with Spotify music on the pc is super quiet. It only kicks the fan in after a few minutes of me playing a big demanding game and when the GPU requires more power. Now the main thing I really want to bring up is that one day while I was playing Fallout 4 my computer 'click' off instantly and I was puzzled so I began to trouble-shoot my parts and they all checked out fine. So I turned on the pc and I got a message from the PSU saying it had stopped a surge safely which surprised me and I was very thankful for. I found out it was my extension lead that was the cause so I replaced it. If I had the CX 500 in at that time It could of damaged a major component of my PC. That's why you buy a decent PSU to avoid these things. I hope this review helped anyone looking into this item. Regards 27 April 2016
Rated 5 out of 5 by Solid and quiet Good quiet PSU - the large fan really helps keeping down the fan speed and hence noise. Usual build quality EVGA is known for: solid, hefty and all black in colour (for those who care about aesthetics). 27 November 2015
  • 2016-05-20 T12:53:05.200-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_2, tr_2
  • loc_en_US, sid_66048, prod, sort_default
1-2 of 2
Questions & Answers
(1 Question : 2 Answers)

Product Q&A

Ask your questions. Share your answers.



« Back


8 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about thesickness is loaded.
Additional information about thesickness could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
Hello,

I would recommend at least a 750w PSU.

Thanks,
8 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about LizN is loaded.
Additional information about LizN could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
The answer is a "yes, but..."

An i5 clocked at about 4.2 Ghz together with a 980 with a mild overclock will run at ~350-400W, which is just the upper end of the efficiency and heat/noise sweet spot for a 550W PSU.

Once you add additional components (more fans, water pump if you use water cooling, high RPM HDDs, going for a high overclock), it's going to push the PSU to a less efficient, noisier and hotter level.

Going to 650W or 750W will give you a much better safety margin.
