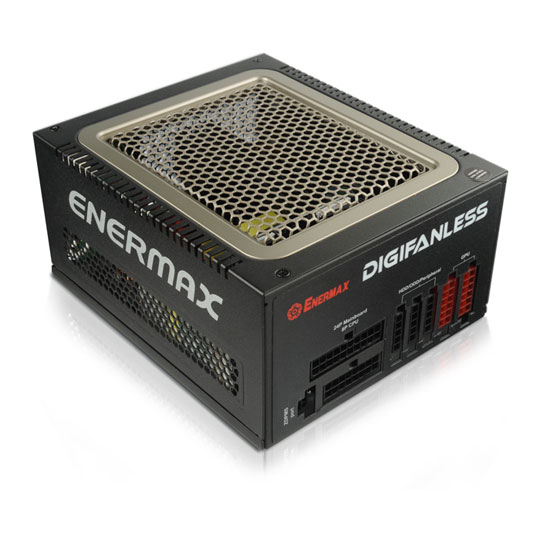

Enermax Digifanless 550W Modular Power Supply
Scan code: LN63495
Manufacturer code: EDF550AWN
End Of Life
Enermax Digifanless 550W Modular Power Supply
550W Enermax Digifanless, 80 PLUS Platinum, Full Modular, SLI/CrossFire, Dual (2) Rail, 45A +12V, ATX PSU
Scan code:
LN63495
Manufacturer code:
EDF550AWN
This product is no longer available to purchase.
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
Product Overview
Silent Operation. Brilliant Technology. Precious Design.
Fanless Power Supply
The sophisticated passive cooling system of the Digifanless power supply guarantees a completely silent operation (0db(A)). The PSU is therefore the first choice for all silent PCs, multimedia stations or HTPCs.
Attention! Please keep the main air vent upside in the chassis. Do not block the air vents of the power supply and ensure an adequate air circulation in your PC system.
Digital Monitoring & Control System
The Digifanless is equipped with a digital interface to transmit and control the most essential performance values. With the ZDPMS software (“Zero-Delay Power Monitoring System”) users can easily monitor the power supply operation and customize certain functions, eg. switch between multi- or single-rail mode, fine tune the 12V output voltage or set the trigger points for OCP/OVP warning messages. More information about the various function of the ZDPMS software you can find in the ZDPMS manual. Please note that the software supports only Enermax power supplies with ZDPMS interface
Full-Modular Cable Management with Individually Sleeved Cables
The full-modular cable management simplifies the system installation: Unnecessary cables can be detached to save space. The flexible cable sleeving allows for a comfortable and efficient cable routing. Enermax applies a high-quality black cable sleeving with individually sleeved wires, which creates a precious visual effect.
Efficiency
80 PLUS® Platinum
Up to 93% efficiency at 230VAC between 20 and 100% load. The Digifanless 550W is 80 PLUS® Platinum certified. The digital interface of the power supplies provides a continuous control of the system power consumption and efficiency rate. Thanks to the included ZDPMS software, users can further calculate the electricity costs and carbon footprint.
Support of EU Eco-Design Regulations
The Digifanless 550W helps systems to meet the latest EU eco-design directive ErP Lot 6 2013 (< 0.5W in standby mode*) due to a high-efficient 5V standby (+5Vsb) circuitry as well as the EU regulation no. 617/2013 demanding amongst others 85% efficiency at 50% load and 82% at 20% and 100% load.
* only in combination with an ErP Lot 6 2013 ready mainboard Features Compatibility
Intel® ATX12V v2.4
Compliant with the latest desktop power supply design guide. Full support of most current Intel® and AMD® CPU.
Intel® Haswell™ Ready!
The Zero Load Design of Digifanless enables the C6/C7 energy-saving functions of latest Intel® processors incl. the Haswell™ generation.
Full Gaming Power
Four 6+2(8)P PCI-Express connectors to power the latest high-end graphics cards and multi-GPU systems (SLI®/CrossfireX™).
Worldwide Compatibility
Automatic 100-240V AC input for global usage and up to 99% active Power Factor Correction (PFC).
Safety & Quality
Durable & High-Quality Components
Enermax applies high-quality components incl. first-class Japanese 105°C electrolytic capacitors for maximum stability and durability.
24/7 @ 40°C
Non-stop industrial class performance at 40°C/104°F ambient. Continuous 550W power output with 605W peak power.
SafeGuard
The multiple protection circuit shields the power supply and the system from damage in case of short circuit (SCP), over voltage (OVP), under voltage (UVP), over current (OCP), over power (OPP), over temperature (OTP) as well as surges and inrush current (SIP). The ZDPMS software warns the user in case of increased current, voltages or temperature, so that precautionary measures can avoid the triggering of protections.
CordGuard
The convenient metal clip fixes the AC cord tightly and avoids accidental system crashes and data loss.
5 Years Manufacturer Warranty
Fanless Power Supply
The sophisticated passive cooling system of the Digifanless power supply guarantees a completely silent operation (0db(A)). The PSU is therefore the first choice for all silent PCs, multimedia stations or HTPCs.
Attention! Please keep the main air vent upside in the chassis. Do not block the air vents of the power supply and ensure an adequate air circulation in your PC system.
Digital Monitoring & Control System
The Digifanless is equipped with a digital interface to transmit and control the most essential performance values. With the ZDPMS software (“Zero-Delay Power Monitoring System”) users can easily monitor the power supply operation and customize certain functions, eg. switch between multi- or single-rail mode, fine tune the 12V output voltage or set the trigger points for OCP/OVP warning messages. More information about the various function of the ZDPMS software you can find in the ZDPMS manual. Please note that the software supports only Enermax power supplies with ZDPMS interface
Full-Modular Cable Management with Individually Sleeved Cables
The full-modular cable management simplifies the system installation: Unnecessary cables can be detached to save space. The flexible cable sleeving allows for a comfortable and efficient cable routing. Enermax applies a high-quality black cable sleeving with individually sleeved wires, which creates a precious visual effect.
Efficiency
80 PLUS® Platinum
Up to 93% efficiency at 230VAC between 20 and 100% load. The Digifanless 550W is 80 PLUS® Platinum certified. The digital interface of the power supplies provides a continuous control of the system power consumption and efficiency rate. Thanks to the included ZDPMS software, users can further calculate the electricity costs and carbon footprint.
Support of EU Eco-Design Regulations
The Digifanless 550W helps systems to meet the latest EU eco-design directive ErP Lot 6 2013 (< 0.5W in standby mode*) due to a high-efficient 5V standby (+5Vsb) circuitry as well as the EU regulation no. 617/2013 demanding amongst others 85% efficiency at 50% load and 82% at 20% and 100% load.
* only in combination with an ErP Lot 6 2013 ready mainboard Features Compatibility
Intel® ATX12V v2.4
Compliant with the latest desktop power supply design guide. Full support of most current Intel® and AMD® CPU.
Intel® Haswell™ Ready!
The Zero Load Design of Digifanless enables the C6/C7 energy-saving functions of latest Intel® processors incl. the Haswell™ generation.
Full Gaming Power
Four 6+2(8)P PCI-Express connectors to power the latest high-end graphics cards and multi-GPU systems (SLI®/CrossfireX™).
Worldwide Compatibility
Automatic 100-240V AC input for global usage and up to 99% active Power Factor Correction (PFC).
Safety & Quality
Durable & High-Quality Components
Enermax applies high-quality components incl. first-class Japanese 105°C electrolytic capacitors for maximum stability and durability.
24/7 @ 40°C
Non-stop industrial class performance at 40°C/104°F ambient. Continuous 550W power output with 605W peak power.
SafeGuard
The multiple protection circuit shields the power supply and the system from damage in case of short circuit (SCP), over voltage (OVP), under voltage (UVP), over current (OCP), over power (OPP), over temperature (OTP) as well as surges and inrush current (SIP). The ZDPMS software warns the user in case of increased current, voltages or temperature, so that precautionary measures can avoid the triggering of protections.
CordGuard
The convenient metal clip fixes the AC cord tightly and avoids accidental system crashes and data loss.
5 Years Manufacturer Warranty
