Hot Seller Refurbished

Corsair 550 Watt VS550 ATX PSU/Power Supply Unit Factory Refurbished

550W Corsair VS550, Refurbished, 80PLUS Fully Wired, SLI/CrossFire, Single Rail, 42A +12V, 1x120mm Fan, ATX PSU

FREE UK Power Cable
Corsair
Scan code: LN75571 Manufacturer code: CP-9020097-WW/RF Request call
£29.99
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Mid Range
Delivery options £5.48 By DPD On 18th Dec 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

Refurbished VS550 - Corsair Power Supply - Fully Wired ATX PSU

Corsair VS550 Power Supply 80PLUS - Platinum

Corsair VS 550W Refurb Power Supply

This VS550 has been fully refurbished by corsair. The VS series power supply has 550W of guaranteed power and is perfect for home or office system build. The VS550 offers up to 85% efficiency allowing you to enjoy lower energy bills. The built in 120mm fan is thermally controlled, so only spinning when its pushed hard. The black powder coated enclosure allows the power supply to go well in any system case.

View other refurbished VS power outputs:
VS450 - VS650

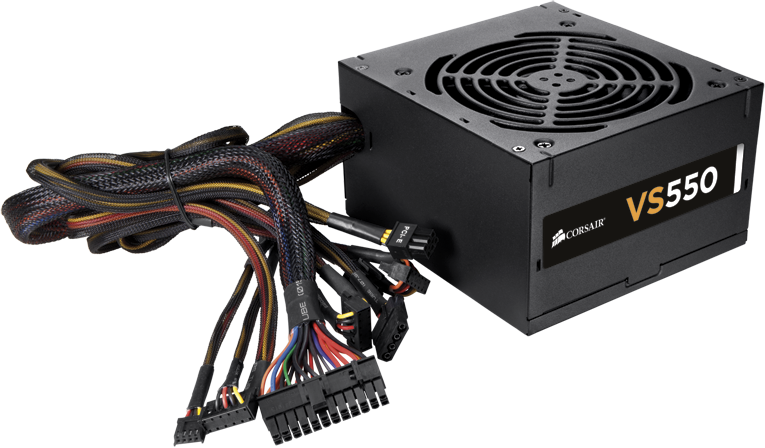

Fully Wired Connectivity

Connections

VS Fully Wired Cable Design

The fully wired cable setup on the VS550 is designed to make it extremely simple to install. The black-sleeved cables give the PSU the ability to give any system the high-tech feel.

VS550 Efficiency & Noise Graphs

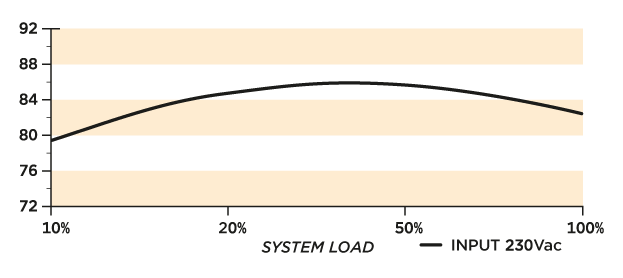

VS550 EFFICIENCY

Efficiency Graph

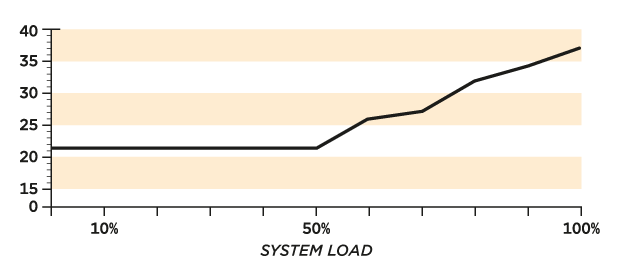

VS550 FAN NOISE

Noise Graph

Corsair VS550 Output Power Chart

Corsair VS550 Fully Wired Power Supply
AC Input Rating DC Output Rating
AC Input: 200V - 240V DC Output +3.3V +5V +12V -12V +5Vsb
Current: 5A Max Load 18A 18A 42A 0.3A 2.5A
Frequency: 47Hz - 63Hz Maximum Combined Wattage 110W 504W 3.6W 12.5W
  Total Power: 550W
Specifications
Size ATX
Edition VS550
Wattage 550 W
80 PLUS Certification 80 PLUS White
Max. Efficiency 85 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 42 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 42 A
Modular No
Modularity Fully Wired
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 4 x 4-pin Molex
  • 2 x 6-pin PCIe
  • 2 x FDD Power
  • 4 x SATA
Dimensions 150 x 86 x 140 mm (WxHxD)
Package Type
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Customers also bought
TekSpek Guides
Power Supplies
Power Supplies
Date Issued: 25th Oct 2017

Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.

Read More

Reviews
550W Corsair VS550, Refurbished, 80PLUS Fully Wired, SLI/CrossFire, Single Rail, 42A +12V, 1x120mm Fan, ATX PSU is rated 3.8 out of 5 by 12.
Rated 5 out of 5 by from Great value This is the most expensive PSU I've bought and have to say my computer has a lot less errors. Because it's refurbished it was cheaper but so far no problems. The braided cables do help with installation and cooling and it's a shame I don't have a transparent side panel because the PSU looks really really good. So if you are looking for a good quality psu for a single GPU setup, I recommend this one.
Date published: 2017-11-10
Rated 5 out of 5 by from Excellent power supply at a great price! (yes there are 2*8 pin for graphics) This power supply is a brilliant replacement for an alternative brand which failed on me. It has weird groupings of cables ie (2 cables which consist of a single molex, data and floppy power rather than having a row of satas) Nonetheless, it's practically silent and offers great performance. Also, from experience, yes this unit has 2x 6+2 pin for graphics cards, since that's a popular question.
Date published: 2017-08-06
Rated 4 out of 5 by from well priced PSU well priced PSU for a basic PC...does the job well
Date published: 2017-04-18
Rated 2 out of 5 by from Worth considering. Flawless ordering and delivery as usual. :) Normally i would not even consider a corsair psu but i needed an emergency replacement and as my planned Ryzen upgrade is a few months off yet, i did not want to spend too much right now. Fitted ok and powered up fine with AIDA64 showing voltages within spec - Voltage Values +3.3 V 3.364 V +5 V 5.070 V +12 V 12.096 V I dont trust corsair psu's quality so i will be keeping an eye on those voltages constantly. I will rate this low but it is a cheap unit bought in an emergency and it is working with voltages within spec.
Date published: 2017-03-16
Rated 1 out of 5 by from Don't buy this It had ruined my performance totally. I had an off brand PSU before this that cut out regularly just total power gone. I prefer that one it might of cut but at least it actually kept my performance while it's on. I will be refunding both and not buying cheap again. I recommend no one buys this
Date published: 2017-02-26
Rated 5 out of 5 by from I recommend the product, but the company could've done better. The product works great (Although my original was faulty). It runs great in my machine, especially being as my machine only pulls around 350 watts under huge load. Although this is rated as a bad power supply, i think it works great if you're not using power hungry GPU'S / CPU'S.
Date published: 2017-02-19
Rated 4 out of 5 by from Works great, nice price Nice cable braiding and good cable legnth. Price was excellent. Dont be affraid to buy refurbed items, you can get a great deal.
Date published: 2017-02-13
Rated 4 out of 5 by from Great (once I fixed it). I experienced the same problem as Brett did in his review - the fan made a loud scraping sound when the system was under load. After reading his review, I used a tool to pull the central disc of the fan cover out by less than a millimetre, and the fan is now almost silent and the whole unit is doing it's job well. It seems strange that 2 refurbished fans have exhibited this same problem - they mustn't test them with the fans facing downwards (it worked fine with the fan facing upwards).
Date published: 2017-01-23
  • y_2017, m_12, d_14, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_12
  • loc_en_GB, sid_75571, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

What PCIE connectors does this come with?

Know the spec says 2x 6pin, however some websites has said 2 x 6 +2 pin?
Asked by: Tomaslondon
Yes, mine came with two 6+2 pin connectors (see image)
Answered by: twentyeight1
Date published: 2017-10-07
