Scan code: LN104323 Manufacturer code: LH55VHRRBGBX/EN

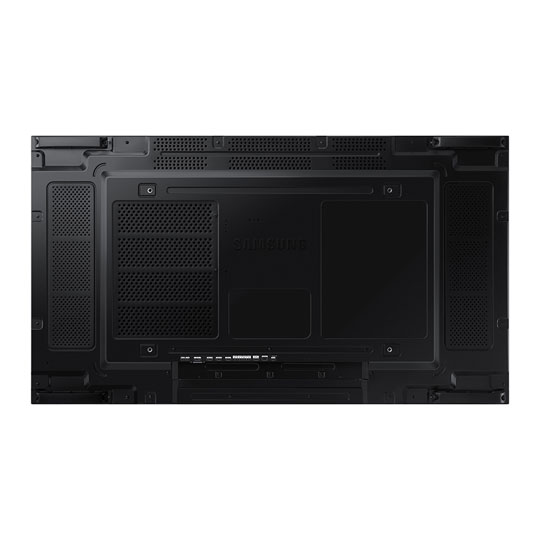

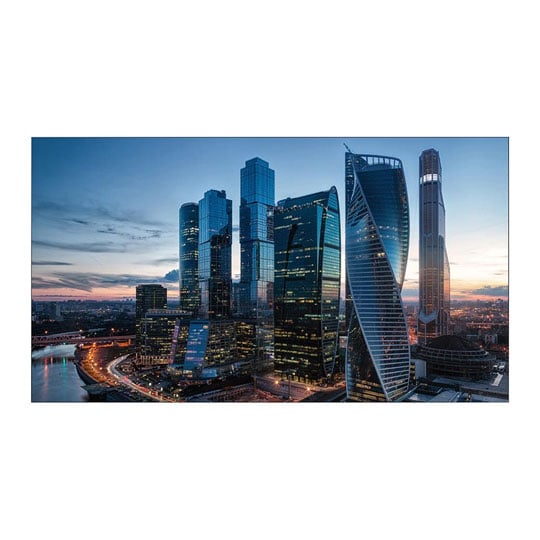

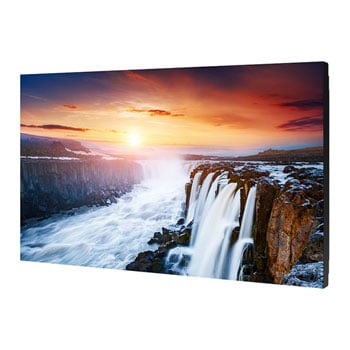

Samsung 55" VH55R-R FHD SMART Signage Monitor

55" Samsung VH55R-R, FHD, Razor-Thin Bezel, SMART Signage Monitor, DVI/HDMI/RS232C/RJ45/DP, 700nit, Daisy Chain (5x5)

Thumbnail 1 : Samsung 55" VH55R-R FHD SMART Signage Monitor Thumbnail 2 : Samsung 55" VH55R-R FHD SMART Signage Monitor Thumbnail 3 : Samsung 55" VH55R-R FHD SMART Signage Monitor Thumbnail 4 : Samsung 55" VH55R-R FHD SMART Signage Monitor
Scan code: LN104323 Manufacturer code: LH55VHRRBGBX/EN
Call for price
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Product Overview

Samsung’s VHR-R Series video wall display has a razor-thin bezel measuring just 0.44 mm, a 0.88 mm bezel-to-bezel depth. A wide viewing angle provides an immersive viewing experience without distraction. Picture enhancement technology delivers vibrant images while a slim and sleek design blends seamlessly into any business environment. All supported by 700 nit brightness, non-glare panels and 24/7 reliability for a solution that can meet your business’ demands.

Why Samsung’s VHR-R Series?

Precise and convenient calibration Incorporating Samsung’s industry-leading picture technology, the VHR-R series video wall displays deliver a superior, immersive viewing experience. Fine-tuned with a multi-step factory calibration to ensure pixel-level uniform colour presentation and enhanced with Samsung’s innovative Colour Expert Pro Mobile which provides users with a quick and easy tool to ensure the display is delivering perfect images for the conditions of the room without the need for any costly equipment. Industry standard certified for reliable operation and designed and optimized for any business need, the VHR-R series delivers stunning image quality in a slim, spacing-saving design, ideal for a wide range of business uses.

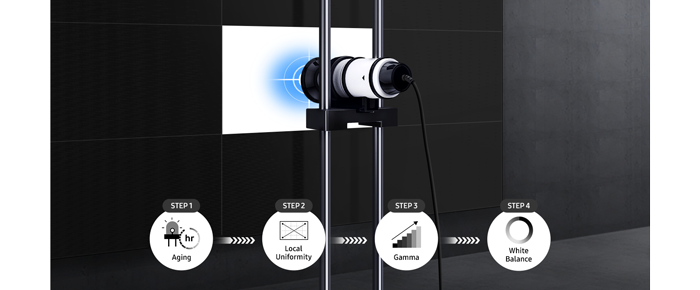

Comprehensive Calibration

Samsung’s multi-step factory calibration process tunes video walls to uniform brightness and colour throughout multiple displays. In addition to rigorous factory calibration, users can also manage brightness and colour uniformity with Samsung’s Colour Expert Pro, a powerful free software program.

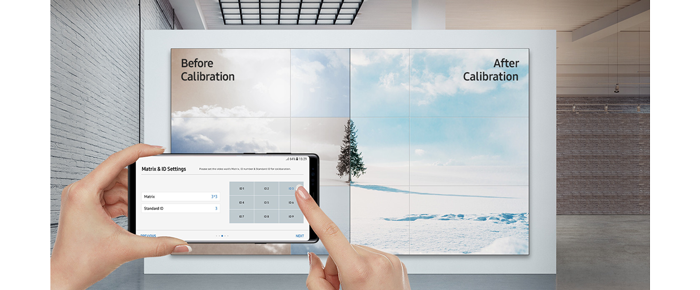

Convenient Mobile Calibration

Samsung’s Colour Expert Pro Mobile solution provides a quick and easy video wall calibration through a mobile camera. With the solution’s intuitive UI, even non-expert users can adjust up to 5x5 video wall’s white balance simultaneously without the need for additional equipment.


Nearly Invisible 0.44 mm Bezel

A nearly invisible 0.44 mm even bezel — a 0.88 mm bezel-to-bezel depth — enables content to be delivered as one seamless image. Additionally, the display helps to eliminate any potential image distortion and provides a more immersive viewing experience.

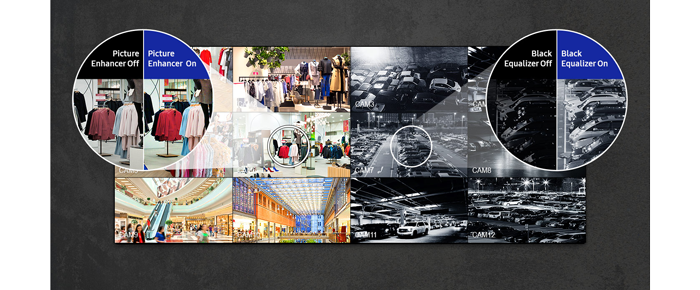

Image Enhancement Technology

Samsung’s powerful picture enhancement technology ensures all content is vibrant and clear. With Picture Enhancer mode, colour saturation and contrast are improved by adjusting the gamma curve. Using Black Equalizer mode, dark images are lightened, so details are easier to see.

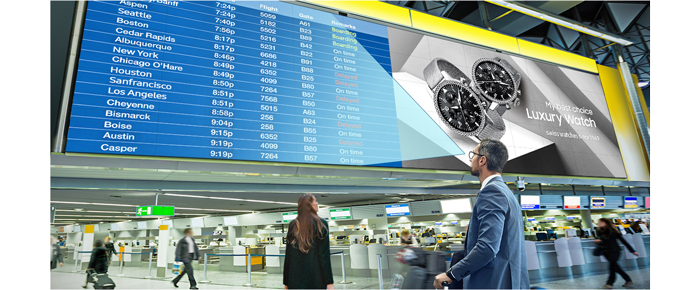

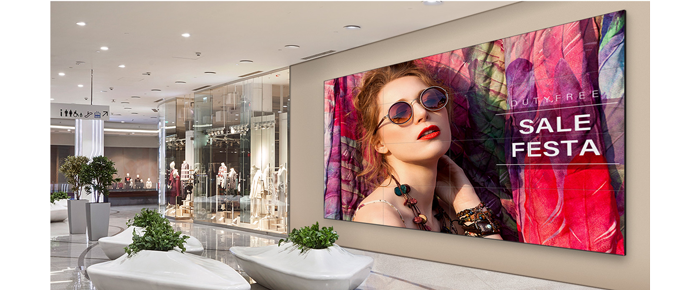

View Content from Any Angle

The displays wide viewing angles mean content is easily visible even if viewers aren’t standing directly in front of the display. Audiences can get clear and accurate information regardless of video wall layout or location.

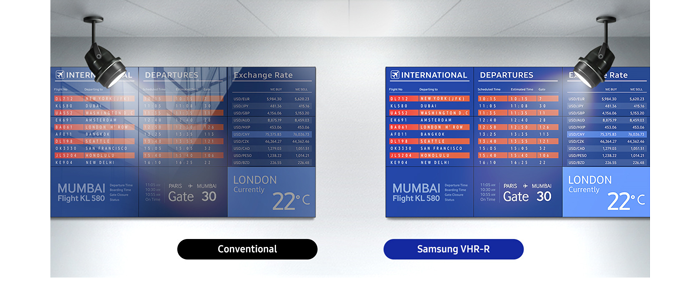

Vibrant Images 24/7

Experience brilliant image presentation with an impressive 700 nit brightness allowing businesses to deliver clear information 24/7. The displays non-glare panels provide better visibility regardless of ambient light, ensuring critical information is always visible.

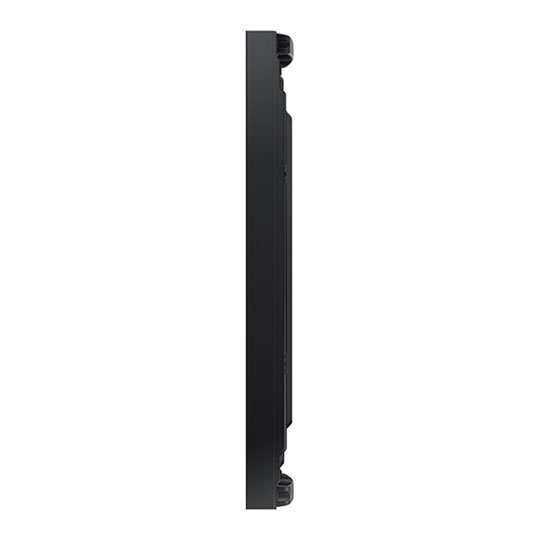

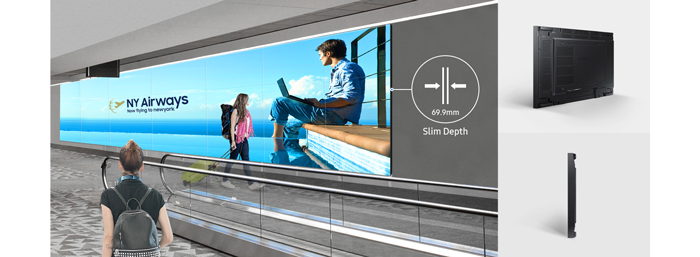

Modern, Slim Design

VHR-R displays feature an elevated design aesthetic with an ultra-slim depth of less than 70 mm. This allows the display to save space and create a clean, modern look for retail or other public spaces.

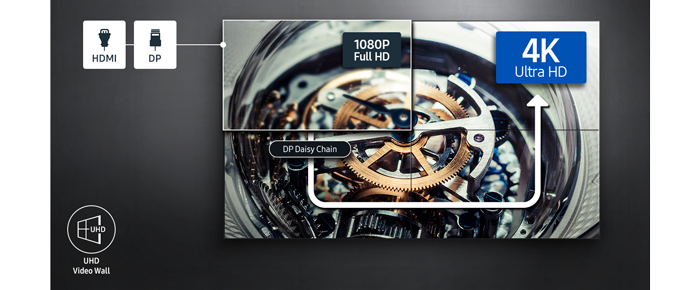

Advanced UHD Presentation

Samsung video walls provide an impressive UHD viewing experience with minimal effort. With daisy chain design utilizing DisplayPort 1.2 and HDMI ports, the VHR-R display can project UHD content across multiple screens up — to 5 x 5 — without requiring an external graphic card or UHD splitters.

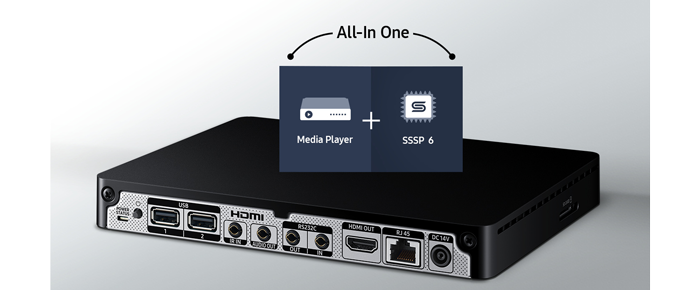

Intuitive All-in-One Operations

The UHD Signage Player Box combines information processing and content management tools into a single platform, for added operational simplicity. Weighing just 0.6 kg, even with embedded MagicINFO S Player 6 and SSSP 6, the compact design of the box makes it an ideal solution.


Industry Standard Certified

The VHR-R series is EMC class B compliant, ensuring a safe viewing environment by meeting strict standards of electromagnetic wave emission. The display packaging also passed a rigorous 4-step test in an ISTA-certified laboratory designed minimizes possible damage during delivery.

Features

• Razor-thin 0.44mm even bezel design delivers one immersive, seamless image.
• Wide viewing angles enable clear image presentation for more viewers in large spaces.
• 700 nit brightness and non-glare panel provide high visibility 24/7.
• Picture enhancement technology delivers optimized visuals.
• Slim design creates neat environment and saves space.
• Colour Expert Pro Mobile provides quick and easy video wall calibration using a mobile device.
• Multi-step factory calibration delivers content with near-perfect uniformity.
• Meets industry standards, EMC class B compliant and ISTA-6 certified.
• Daisy-chain enables easy UHD content presentation without external equipment.

Specifications
Screen Size 55"
Edition VH55R-R
Panel Type IPS
Panel Coating Non-Glare
Panel Finish
Touchsceen
Backlight
Pitch Size 0.63 x 0.63mm
Curvature
Adaptive Frame-rate Technology N/A
HDCP Yes
Connectors
  • 1 x Display Port 1.2 In
  • 1 x DisplayPort 1.2 Loop-Out
  • 1 x DVI-D In
  • 2 x HDMI 2.0
  • 1 x RJ45
  • 1 x RS232C (In/Out)
  • 1 x Stereo Mini Jack
Position Adjustment Pivot
Resolution 1920x1080 (Full HD)
Aspect Ratio
Refresh Rate
Response Time 8 ms
Brightness 700 cd/m²
Viewing Angle 178/178 (°H/°V)
Contrast Ratio/Dynamic Contrast Ratio 1100:1 / 30,000:1
Color Gamut 72%
Color Bit Depth 8-Bit (16.7M Colours)
HDR Support No
Supported HDR Standards
Speakers No
Speaker Configuration
Web Camera No
Power Usage (Switched on) 153 W
VESA 600 x 400
3D Support No
Anti-Theft Features
Included Accessories
  • 1 x Batteries
  • 1 x DisplayPort Cable
  • 1 x Power Cable
  • 1 x Quick Start Guide
  • 1 x Remote
  • 1 x Stereo to DB9 Cable
  • 1 x Warranty Card
Monitor Colour
Dimensions (with stand)
Dimensions (without stand) 1211.0 x 681.7 x 69.9mm (WxHxD)
Weight (with Stand)
Note
Additional Information
Scan Code LN104323
Model Number LH55VHRRBGBX/EN
GTIN 8806090116056
