Ubiquiti Enterprise Campus Aggregation 54-port Managed Layer 3 Etherlighting Switch

Ubiquiti Enterprise Campus Aggregation Switch

The Ubiquiti Enterprise Campus Aggregation Switch (ECS-Aggregation) is a high-performance, enterprise-grade network core switch designed to aggregate and manage traffic across large networks with demanding bandwidth, segmentation, and redundancy requirements. Built for campus networks, data centres, and large-scale enterprise deployments, the ECS-Aggregation combines massive throughput with extensive port density and advanced Layer 2/Layer 3 functionality. With 48 SFP28 ports and 6 QSFP28 uplink ports, it supports high-speed connections upto 25G or 100G, enabling scalable networking infrastructure for offices, campus environments, and service-provider-level setups. The switch’s robust switching capacity, non-blocking throughput, and forwarding capability ensure smooth, low-latency data flow even under heavy multi-device loads. Its rack-mount 1U form-factor, hot-swappable power supplies and fans, and built-in Etherlighting port-status indicators make deployment, maintenance, and management straightforward. ECS-Aggregation is engineered for reliability, flexibility, and future-proof network architecture - suitable for organisations that require a stable, high-capacity foundation for modern, high-bandwidth network demands.

High-Density & High-Speed Port Layout

ECS-Aggregation includes 48 × SFP28 ports (10G / 25G) and 6 × QSFP28 ports (40G / 100G) to support a mix of high-speed uplinks and edge connections. This enables the switch to handle backbone-level data aggregation, server/fibre uplinks and multiple 10G / 25G / 100G device connections simultaneously - providing the scalability needed for enterprise and campus networks.

Massive Throughput & Switching Power

With a switching capacity of 3.6Tbps and non-blocking throughput of 1.8Tbps, ECS-Aggregation can carry immense traffic loads without bottlenecks. Its forwarding rate reaches up to 2.4 billion packets per second (Bpps), ensuring high packet-per-second performance ideal for latency-sensitive applications, large datasets, or flat-network backbones.

Enterprise-Scale VLAN & MAC/Route Capacity

The ECS-Aggregation supports up to 1,000 VLANs for robust network segmentation and multitenancy. Its MAC address table can hold 128,000 entries, while the Layer 3 routing table supports up to 96,000 ARP entries and 288,000 IPv4 routes - giving it the capacity to manage large networks with thousands of endpoints and multiple subnets.

Full Layer 2 and Layer 3 Features for Flexible Networking

As a managed switch, ECS-Aggregation delivers advanced Layer 2 features including LACP port aggregation, Multi-Chassis Link Aggregation (MC-LAG) for redundancy and load balancing, STP/RSTP, IGMP snooping and advanced multicast control, MAC- and IP-based ACLs, DHCP snooping and guarding, port isolation, port mirroring, jumbo frames, flow control, LLDP-MED, voice VLAN, loop protection and more.

On the Layer 3 side, it supports DHCP server, DHCP relay, inter-VLAN routing, and static routing among local networks - enabling it to function as both a distribution layer and core router in mid-sized networks.

Built-in Etherlighting and Redundant, Rack-Ready Design

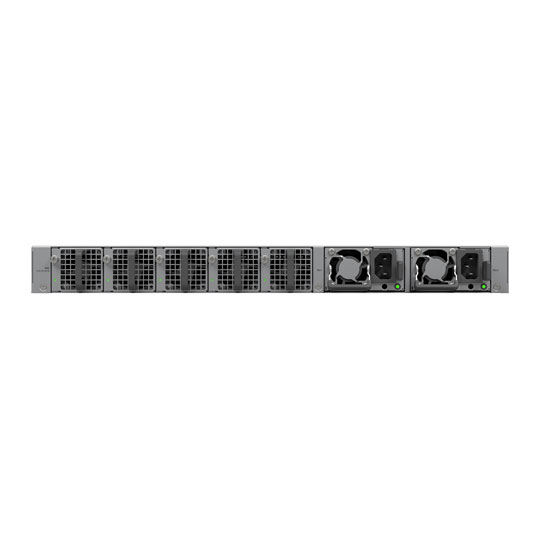

ECS-Aggregation integrates Etherlighting port-status LEDs for real-time visual feedback on link speed, VLAN, and network status - a helpful tool when managing densely populated racks or fibre trunks. The unit comes in a 1U SGCC-steel chassis suitable for 19" racks, supports 482.6 mm rack slides, and includes two hot-swappable AC/DC 550 W power supplies plus five hot-swappable fans, offering redundancy and continuous operation even under hot-swap maintenance.

• 48 × 25G/10G SFP28 ports + 6 × 100G/40G QSFP28 uplink ports.
• Switching capacity: 3.6Tbps; Non-blocking throughput: 1.8Tbps.
• Forwarding rate up to 2.4 Bpps - high packet-per-second performance.
• Supports up to 1,000 VLANs for advanced network segmentation.
• MAC address table up to 128,000 entries.
• Large Layer 3 routing capacity (96,000 ARP entries; 288,000 IPv4 routes).
• Full Layer 2 features: LACP, MC-LAG, STP/RSTP, IGMP snooping, port isolation, ACLs, jumbo frames, flow control, DHCP snooping/guarding, port mirroring, LLDP-MED, voice VLAN, loop protection.
• Layer 3 features: DHCP server/relay, inter-VLAN routing, static routing.
• Etherlighting port status and VLAN/ speed visualisation for easier management.
• Redundant design: dual hot-swappable power supplies, hot-swappable fans, rack-mount 1U steel chassis.
• Supports MC-LAG for multi-chassis redundancy and link aggregation across devices.
