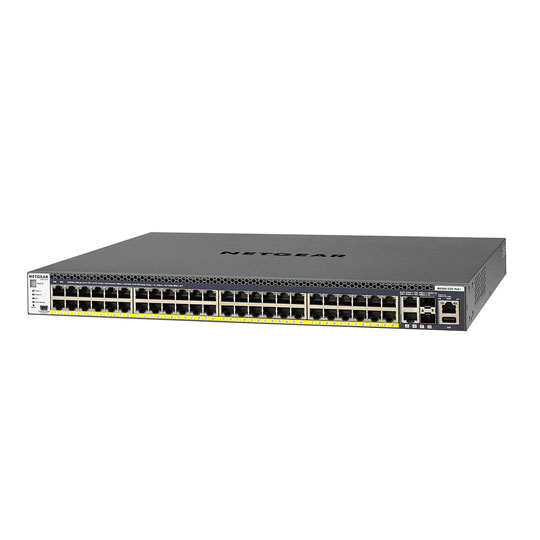

Netgear 52 Port M4300 PoE Smart Switch GSM4352PA-100NES
The M4300 series scales from 24x1G to 48x10G and up to 384 ports per stack. Nonstop forwarding, spine and leaf, edge to core connectivity for unified wired and wireless networks. Unstoppable operation with management unit hitless failover and no service interruption for the clients connected to the other switches in the stack.
PoE deployment at the edge
Common for intermediate distribution frames (IDF) in K-12, horizontal or vertical ring stacking topologies greatly simplify Power over Ethernet deployments at the edge and bring network resiliency with distributed 10G uplinks in aggregation to the core.
Top-of-rack and server installations
For midsize server installations, two half-width M4300 10 Gigabit models can be paired in an effective single rack space for redundant top-of-rack. Non-stop switching, non-stop routing stacking technology ensures no single point of failure for servers connecting to the stack.
Spine and Leaf topologies
For typical collapsed core installations with a variety of 1G and 10G access ports in high performance local area networks, M4300 10G models can stack with M4300 1G models creating 'spine and leaf' topologies, reducing oversubscription, even enabling line-rate aggregation to the spine. Features • All (4) 10G ports are independent and 1G backward compatible for progressive transition to 10G speeds.

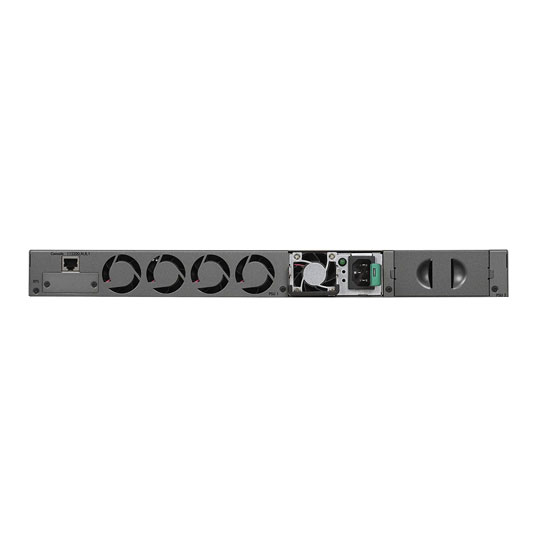

• Hot swap APS550W power supplies deliver 480W redundant PoE+ budget across 48 ports or 720 W in share mode.
• With 176Gbps non-blocking fabric, M4300-52G-PoE+ delivers L2/L3/L4 and IPv4/IPv6 rich services for wireless access layer, IP video and unified communications.
• Virtual Chassis stacking provides non-stop forwarding (NSF) & hitless failover for highest availability (HA).
• 1 Gigabit models such as M4300-52G-PoE+ can stack with 10 Gigabit models enabling line-rate spine and leaf topologies.
|Total Network Ports|
|PoE Support Type|
|No. of Ports Providing PoE||48 x 10/100/1000 (Gigabit) RJ-45|
|Other Non-Network Ports|
|MAC Address Table Size|
|Built-in Flash Memory|
|Acoustic Noise||39.8 dB|
|Max. Power Consumption||865 W|
|Max. PoE Wattage per Port|
|Mean Time Between Failures (MTBF)|
