Scan code: LN116987 Manufacturer code: DGS-1520-52MP

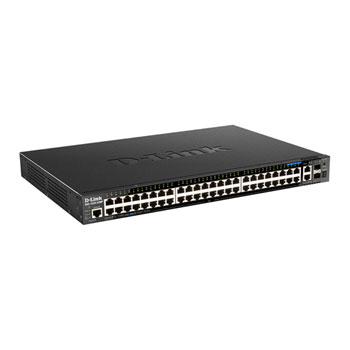

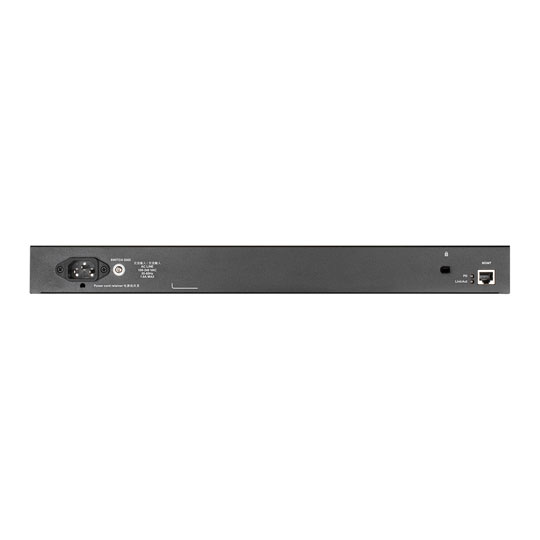

D-Link DGS-1520-52MP 52 Port Layer 3 Stackable Smart Managed PoE Switch

52 Port D-Link DGS-1520-52MP Layer 3 Stackable Smart Managed PoE Switch, 44x GbE PoE, 4x 2.5G PoE, 2x 10G, 2x 10G SFP+

Thumbnail 1 : D-Link DGS-1520-52MP 52 Port Layer 3 Stackable Smart Managed PoE Switch Thumbnail 2 : D-Link DGS-1520-52MP 52 Port Layer 3 Stackable Smart Managed PoE Switch Thumbnail 3 : D-Link DGS-1520-52MP 52 Port Layer 3 Stackable Smart Managed PoE Switch
Scan code: LN116987 Manufacturer code: DGS-1520-52MP
£1,311.49Item currently awaiting an ETA
Pre order
From £35.82 / month (APR 14.9%)
Monthly Payment: £117.74
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,311.49
Total inc. interest: £1,412.83
Monthly Payment: £62.95
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,311.49
Total inc. interest: £1,510.79
Monthly Payment: £44.81
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,311.49
Total inc. interest: £1,612.88
Monthly Payment: £35.82
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,311.49
Total inc. interest: £1,719.26
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £32.76 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Product Overview

Smart Managed Switches, Redefined

The DGS-1520 Series, a new generation of Lite Layer 3 Stackable Smart Managed Switches, includes four 10 GB ports for uplink or stacking up to a total of eight switches with a total of 80 Gigabit stacking bandwidth. Designed for effortless multi-site network deployments with Zero Touch Provisioning, the DGS-1520 Series is also powerful enough for server and storage applications. For unrestricted Wi-Fi 6 edge device capabilities, PoE models offer four 2.5 GB Base-T ports for Multi-Gigabit connectivity. For SMBs with expanding networks and significant bandwidth growth, the DGS-1520 effortlessly adds highly cost-effective 10 GB connectivity to ensure seamless aggregation between access and core layers.


High Availability

The DGS-1520 Series brings reliable, yet affordable, Gigabit connectivity with four 10-Gigabit ports (two 10G Base-T and two 10G SFP+) for high-speed uplink or stacking. Boost your network performance, simplify your network infrastructure, improve bandwidth and reduce cabling complexity.


Zero Touch Provisioning

For multi-site network expansion, the latest firmware and network configurations can be downloaded onto the DGS-1520 Series switches without the need for on-site IT personnel, for rapid and effortless deployment.


Multi-Gigabit Support

Multi-Gigabit ports on the DGS-1520 Series switch (PoE models only) support 100 MB / 1 GB / 2.5 GB speeds to maximize various device capabilities, such as Wi-Fi 6 (802.11ax) access points, which can often exceed single Gigabit speeds.


Advanced L2 and L3 Functionalities

Advanced software features such as selective Q-in-Q, VRRP, RIP and OSPF allows businesses to adapt to changes in their network. For those with expanding network requirements and bandwidth demands, the DGS-1520 Series is a highly cost-effective upgrade option to add 10 Gigabit connectivity to the network infrastructure.


Flexible Hybrid Stacking

Stack up to eight DGS-1520 switches using both copper 10GBASE-T and/or fibre SFP+ ports. The hybrid stacking support adds flexibility as well as lowering the cost of cabling by using copper instead of all fibre.


Minimize Outages with Power Redundancy

For a more resilient network infrastructure, connect up to four DGS-1520 switches (non-PoE models only) with the DPS-520 PoE redundant power supply system through the management port and actively back-up four devices to significantly reduce power redundancy costs.
Auto Discovery: Automatically detect power requirements of connected PD devices.
RPS Port Priority: Enables administrators to define RPS failover policy.
Status Reporting: Administrators can connect via web browser to remotely monitor DPS-520 status.


Low Network Latency, High PoE Budget

High Gigabit-port density with up to 188 GB total switching capacity, and up to 30 W per port with 370 W total PoE budget to power your PoE-enabled devices.


Simplified Management

Managed multiple large wired/wireless device networks with D-View 7 for centralised management to reduce costs and maintenance. D-Link Network Assistant (DNA) is also available to easily set up and manage smaller networks.

Features


• Stackable Smart Gigabit:Physically stack up to 8 switches for expansion and redundancy
• Zero Touch Provisioning: Effortless multi-site deployment with automatic configuration download
• High PoE budget: Up to 370W Power over Ethernet (PoE) power budget to power more devices.
• 10 Gigabit Connectivity: 4 x 10 Gigabit ports for stacking or uplinks to the network core
• Multi-Gigabit PoE Ports: 4 x 2.5G PoE ports, ideal for Wi-Fi 6 access points with Gigabit+ speeds
• Advanced L2 and L3 Functionalities: Including Selective Q-in-Q, VRRP, RIP and OSPF to easily adapt to changes in the network
• Limited Lifetime Warranty & Next Day Service: Register to enjoy D-Link Limited Lifetime Warranty support, with complimentary next business day advance replacement service included.

Specifications
Edition Smart Managed Switch
Form Factor Desktop
Total Network Ports
  • 2 x 10 Gigabit
  • 44 x 10/100/1000 (Gigabit) RJ-45
  • 4 x 100/1000/2.5G BASE-T RJ45
  • 2 x SFP+
PoE Support Type PoE
No. of Ports Providing PoE
  • 44 x 10/100/1000 (Gigabit) RJ-45
  • 4 x 100/1000/2.5G BASE-T RJ45
Other Non-Network Ports
Switching Capacity 188 Gbps
Non-Blocking Throughput
Forwarding Rate 139.88 Mpps
MAC Address Table Size 16k Entries
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3ae
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
Acoustic Noise 56.7 dB
Max. Power Consumption 459.5 W
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF) 328174 hours
Power Supply Internal AC Power Supply
Material
Includes
Dimensions (WxHxD) 308.5 x 44 x 441 mm
Weight 4.80 kg
Additional Information
Scan Code LN116987
Model Number DGS-1520-52MP
GTIN 0790069454806
