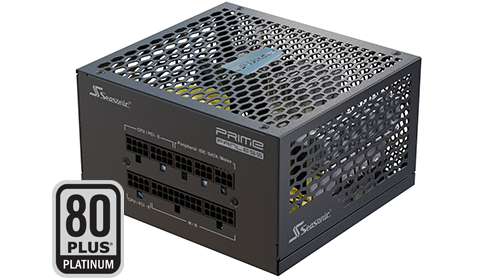

PRIME PX Fanless 500 Watt Power Supply from Seasonic

PRIME PX fanless 450 Watt

INTRODUCING UNPARALLELED POWER TO YOUR PC The PRIME Fanless PX series utilizes the fanless technology, which eliminates the fan noise completely, ensuring truly quiet operation. The unit not only is rated to be 80PLUS Platinum efficient, but it also has the highest power output on the fanless power supply market at the moment. The power supply is ideal any situations that demand silence from the equipment. The high quality components inside and the innovative circuit design result in clean and stable power output. The fully modular cables allow for better cable management in the computer case.

500Watts

80 PLUS PlatinumCertification

Intel ATX 12 VForm Factor

Excellent Efficiency for your Dream PC

80 plus gold

80 PLUS® PLATINUMThe PRIME Platinum Series achieves 80 PLUS® Platinum certification with its 92 % efficiency at 50 % system load.

The Finest Power for High Performance

MICRO TOLERANCE LOAD REGULATIONSeasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.

micro tolerance load

Made with Silence in Mind

silent fan

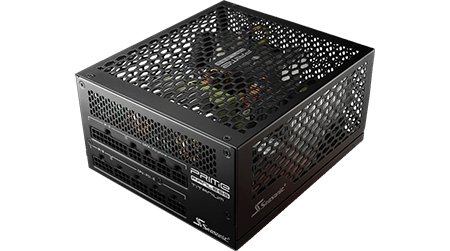

SEASONIC FANLESS DESIGNCooling fans inside the power supply are replaced by passive cooling based on heat dissipation. Silent operation does not only provide a more pleasant working environment but it also results in less power consumption and lower utility bills.

PRIME PX Fanless Feature Summary

1.80 PLUS® Platinum certified

2.Micro Tolerance Load Regulation (0.5 %)

3.True Fanless Design

4.Multi-GPU setup

5.Gold plated connectors

6.12 years warranty

Specifications
Size ATX
Edition PRIME Fanless PX 500
Wattage 500 W
80 PLUS Certification 80 PLUS Platinum
Max. Efficiency (at 230Vac) 94 %
Cooling Fanless
Fans
Internal +12V Rails Single Rail
Rail 1 +12V 41 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 41 A
Modular Yes
Modularity Full Modular
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 2 x 4+4-pin CPU +12V (EPS)
  • 1 x 4-pin FDD Adapter
  • 5 x 4-pin Molex
  • 2 x 6+2-pin PCIe
  • 8 x SATA
Dimensions 150 x 86 x 140 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN106089
Model Number Prime PX 500
GTIN 471117387559
