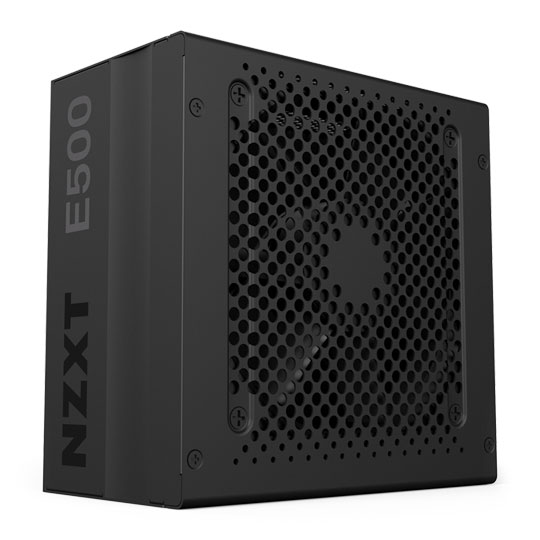

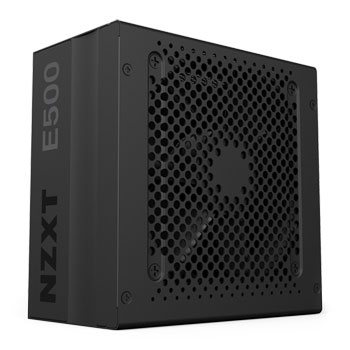

NZXT E-Series 500 Watt 80+ Gold Fully Modular PSU/Power Supply

500W NZXT E-Series E500, Fully Modular, 80PLUS Gold, Single Rail, 41A, 120mm Fan, CAM-Powered, Digital ATX PSU

Free SCAN NZXT Gaming Mouse Mat LIMITED EDITION - LN 92200
Thumbnail 1 : NZXT E-Series 500 Watt 80+ Gold Fully Modular PSU/Power Supply Thumbnail 2 : NZXT E-Series 500 Watt 80+ Gold Fully Modular PSU/Power Supply Thumbnail 3 : NZXT E-Series 500 Watt 80+ Gold Fully Modular PSU/Power Supply Thumbnail 4 : NZXT E-Series 500 Watt 80+ Gold Fully Modular PSU/Power Supply NZXT E-Series 500 Watt 80+ Gold Fully Modular PSU/Power Supply : video thumbnail 1 NZXT E-Series 500 Watt 80+ Gold Fully Modular PSU/Power Supply : video thumbnail 2
Scan code: LN90150 Manufacturer code: NP-1PM-E500A-UK
RRP: £109.99
£79.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd Nov 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

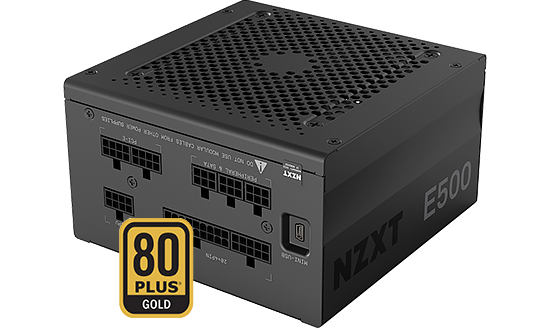

E-Series 500 Watt Fully Modular Power Supply from NZXT

nzxt e series 850w psu

FLAWLESS POWER FOR YOUR DREAM PC The 500W E Series is an ATX PSU crafted by NZXT to deliver unparalleled and accurate power for your gaming PC, which you can monitor in real time to find the perfect power optimization. Analyze digital voltage, uptime, wattage by rail and temperature statistics so you can get the best performance from your power. Gather and track crucial data over time by using NZXT's innovative CAM software to get an accurate image of your PSU's overall health. E Series PSUs are rated at 80+ Gold efficiency. This PSU can also power multiple GPUs, to give you the best gaming experience. Inside is a silent 120mm fan, which delivers fantastic cooling whilst the PSU brings your system to life. The E Series have been engineered with high-quality, durable components to give you long-time performance, and is backed by a great 10-year warranty.

Never be Disturbed by Distracting Fan Noise

e series psu fan

SILENT 120MM INTERNAL FAN With the use of a 120mm fan that comes with an FDB (fluid dynamic bearing) fan bearing, the E Series provides silent operation even during the most demanding tasks. When powering loads under 100W, the 0 dB mode provides totally silent operation. Using CAM, optimize and fine-tune the fan curve to suit your system, or choose between the preset, Silent, Performance or Fixed modes.

Monitor the Stats of your Power Supply

e series monitoring

REAL-TIME OPTIMIZED DATA The E Series PSU supplies you with real-time wattage indicators for three 12V rails, along with total uptime and internal temperature. Use CAM software to compare CPU and GPU power usage to rated TDP, and you can track historical data. This gives you all the information you need to find what's best for your system and the power you use.

Easily Install your PSU into your System

e series fully modular design

FULLY MODULAR CABLE DESIGN This versatile power supply supports single or multi-GPU builds, and the fully modular design means you can use only the connections you need to put together your build. This reduces cable clutter and simplifies your system building/expansion to create an easier and more efficient DIY experience. The cables used with the E Series PSUs are crafted with nylon sleeves to provide you with extra durability and to prevent damage.

E Series 500W Connections

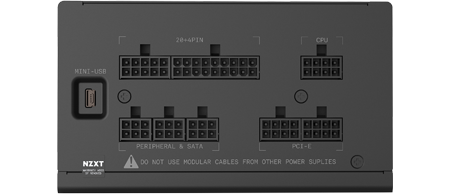

e series connection ports

NUMEROUS CONNECTION PORTS 1 x 4+4-pin CPU + 12V (EPS) | 3 x 4-pin Molex | 2 x 6+2-pin PCIe | 1 x Mini USB | 8 x SATA

Perfect Power for Years to Come

e series gold rating

GUARANTEED FOR ULTIMATE LONGEVITY The E Series always deliver flawless power, with which it has earned itself the 80 PLUS Gold certification. Built using only Japanese capacitors, this cutting-edge PSU provides long-term durability and reliability, and is also backed by a 10-year limited warranty.

Explore the Intuitive Features of the E Series PSU

e series walkthrough video
Specifications
Size ATX
Edition E-Series 500
Wattage 500 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency (at 230Vac) 90 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 41 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 41 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 24-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 3 x 4-pin Molex
  • 2 x 6+2-pin PCIe
  • 1 x Mini-USB
  • 8 x SATA
Dimensions 150 x 86 x 150 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN90150
Model Number NP-1PM-E500A-UK
GTIN 5060301694587
