Corsair CXM 500W Hybrid Modular Power Supply - CP-9020059-UK
Delivery
DPD £5.48 Delivered by DPD Tue 27 Sep. Delivered to your specified address. Receive SMS with one-hour delivery window.
UPS Access Point £4.79 Collect from local shops Collect your parcel from your newsagents, petrol stations and convenience stores.
Collect Instore Free Collect Instore Place your order online and collect from our Bolton store with Q-Collect.
Weekend, timed and European delivery options are available at checkout

CP-9020059-UK - 500W Corsair CXM Builder series, Hybrid Modular, 80 PLUS Bronze, 1x120mm, ATX, PSU

Corsair CXM 500W Hybrid Modular Power SupplyCorsair CXM 500W Hybrid Modular Power SupplyCorsair CXM 500W Hybrid Modular Power SupplyCorsair CXM 500W Hybrid Modular Power Supply

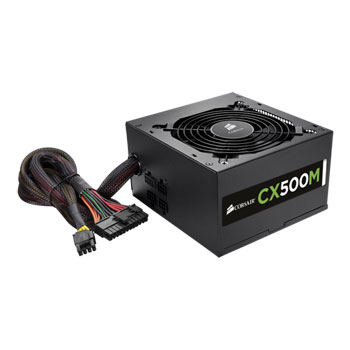

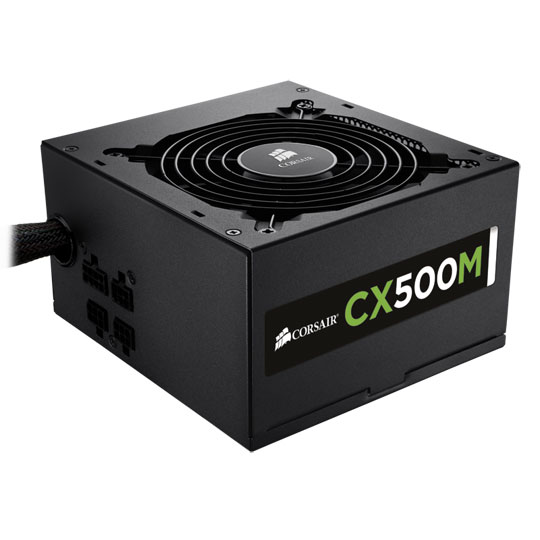

Corsair CXM 500W Hybrid Modular Power Supply
Product Overview
CX Series™ Modular power supply units are an excellent choice for basic system builds and desktop PC computer upgrades, offering high reliability, low noise, easy installation. The flexible modular cabling system lets you use only the cables you need, and 80 PLUS Bronze certified efficiency means less excess heat, lower noise, and lower power bills. The large-diameter, thermally controlled fan makes CX Series Modular quieter at idle, and the large diameter reduces noise even when you’re pushing your system hard. And, the matte black finish, black-sleeved cables and black connectors help give your system a restrained, high-tech look.
Features

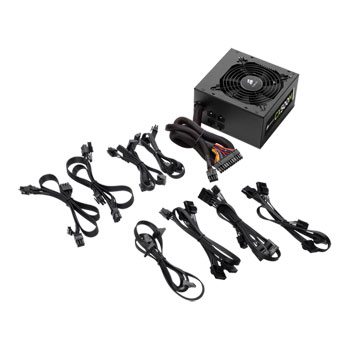

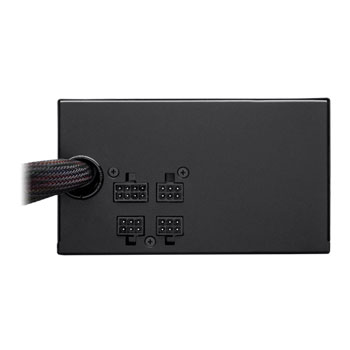

Modular cabling system lets you use only the cables you need
Built and tested to strict standards for trouble-free installation and smooth operation
80 PLUS Bronze certified efficiency for low noise and lower power bills

Additional Features
Up to 85% energy efficiency means less heat generation and lower energy bills.
0.99 Active Power Factor Correction provides clean and reliable power.
Universal AC input from 90-264V.
A dedicated single +12V rail offers maximum compatibility with the latest components.
Over-voltage and over-power protection, under-voltage protection, and short circuit protection provide maximum safety to your critical system components.
Extra long fully-sleeved cables support full tower chassis.
It supports the latest ATX12V v2.3 standard and is backward compatible with ATX12V 2.2 and ATX12V 2.01 systems.
ErP Lot 6 Compliant
A three year warranty and lifetime access to Corsair¡¦s legendary technical support and customer service.
Technical Specification
General
Manufacturer:
Corsair
Size:
ATX
Edition:

Wattage:
500 W
80 PLUS Certification:
80 PLUS Bronze
Max. Efficiency:
85 %
Cooling:
Fan
Fans:
  • 1 x 120mm
Internal +12V Rails:
Single Rail
Rail 1 +12V:
38 A
Rail 2 +12V:
N/A
Rail 3 +12V:
N/A
Rail 4 +12V:
N/A
Rail 5 +12V:
N/A
Rail 6 +12V:
N/A
Max. Combined Output +12V:
38 A
Modular:
No
Modularity:
Hybrid Modular
SLI/CrossFire:
Yes
EPS 12V:
Yes
Motherboard Connector:
24 Pin
Connectors:
  • 4 x 4pin Molex
  • 2 x 6pin PCI-E Power
  • 1 x 8pin CPU +12V
  • 1 x FDD Power
  • 5 x SATA Power
Dimensions:
150 x 86 x 160 (WxHxD)
Warranty

For further information regarding Scan's warranty procedure please click here

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
36 months
