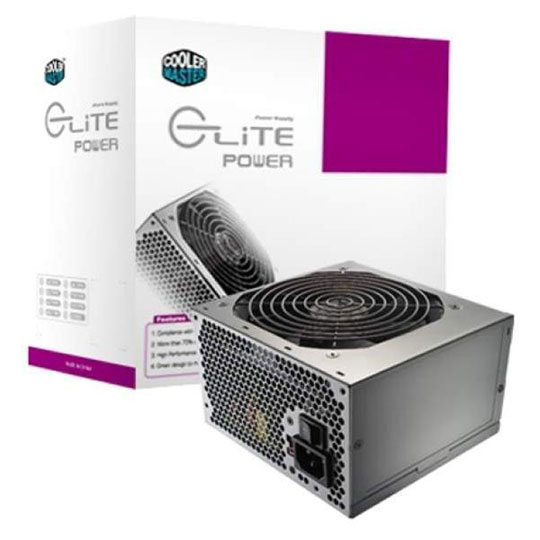

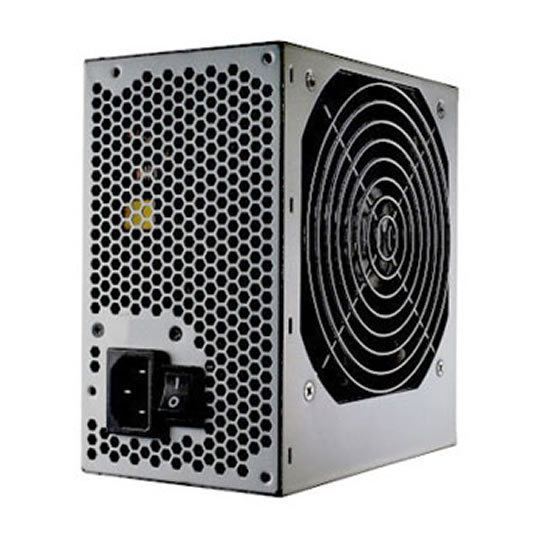

Coolermaster Elite Power RS500 500W Power Supply (PSU) ErP

500W Cooler Master RS500 Dual Rail, 120mm Quiet Fan, ATX 12V v2.3, PSU

Cooler Master
Scan code: LN38353 Manufacturer code: CM-RS500-PSAPJ3-IT Request call
End Of Life
3xs Approved High End
Product Overview The reliable, efficient and affordable line of Elite power supplies is ideal for mainstream and basic computing systems.

• Compliance with the newest Intel standard ATX 12V V2.3
• More than 70% efficiency at typical load operation
• High performance components design for better reliability
• Green power design to meet Energy Star and Blue Angel requirements
• Multiple protection design(OVP/OCP/OPP/SCP)
• Support dual +12V1 and +12V2 outputs for higher power usage
• One 4+4 pin +12V CPU connector for high-end CPU
• EMI and Noise filter built in design
• 2 Year warranty



Built with quality components and dual +12V outputs, the Elite series is fit to handle demands of high power requirements. The eco-friendly design allows the Elite series to reach more than 70% efficiency at typical loading and meet Energy Star and Blue Angel requirements.

Features Model RS500-PSAPJ3-IT
Type Intel Form Factor ATX 12V V2.3
Dimension (W x L x H) 150 x 140 x 86 mm
Input Voltage 220~240V
Input Current
7A
Input Frequency Range 47 ~ 63 Hz
Power Good Signal 100 ~ 500 ms
Hold Up Time >17 ms
Efficiency >70% Typically
MTBF >100,000 hrs
Protection OVP / OCP / OPP / SCP
Output Capacity 500 Watts
Operation Temperature 0~40°C(Nominal Input Voltage)
Regulatory CE / GOST / C-tick
Fan 120mm fan
Connectors
M/B 20+4 Pin x 1
CPU 4+4 Pin x 1
4 Pin Peripheral x 3
SATA x 4
4 Pin Floppy x 1
6 Pin PCI-e Connector x 1
