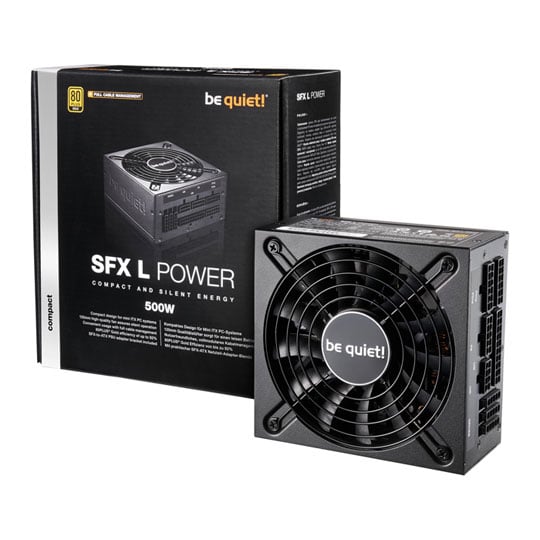

be quiet 500 Watt SFX L Gold Modular PSU/Power Supply
• 80PLUS® Gold certification means very high operating efficiency for its class of up to 92%.
• High efficiency means cost savings, less wasted heat and an overall quieter operation.
• Standby drain of less than 0.15 watts.
• Meets Energy Star 6.0 guidelines.
• Fulfils ErP guidelines.
• Zero Load design and support of Intel’s Deep Power Down C6/C7 mode.
• Powerful 12V-rail design offers high stability and performance for CPU and GPU.
• Four PCI express connectors for multi-GPU system configurations.
• LLC, Synchronous Rectifier (SR) and DC-to-DC power conversion circuit design supports stability and efficiency.
• High-quality Japanese capacitors for maximum reliability and operating life.
• Temperature-controlled 120mm high-quality fan.
• Optimized for low-noise operation thanks to the fan technology and low waste heat.
• Full suite of top safety protections defends against over-currents, over- and under-voltages, short circuits, overheating and overloads.
Highly Compatible and Convenient
• Maximum build flexibility thanks to the full cable management.
• SFX-to-ATX PSU adapter bracket makes it super-flexible for usage with larger case sizes.
• Black flat cables of up to 80cm allow for improved cooling.
Outstanding Service and Support
• 3-year warranty.
• Mini ITX systems.
• Compact gaming PCs.
• High-efficiency upgrade in any PC chassis requiring a SFX form factor PSU. Features • 500 Watts of continuous power and powerful 12V-rail design offer high stability and performance.
• 80PLUS® Gold certification with up to 92% power conversion efficiency.
• Full cable management offers maximum build flexibility and convenient usage.
• Quiet operation thanks to temperature-controlled 120mm high-quality fan.
• SFX-to-ATX PSU adapter bracket makes possible usage with larger case sizes.
• Product conception, design and quality control in Germany.
|Size||SFX-L - with ATX adapter bracket|
|Edition||SFX L Power|
|80 PLUS Certification||80 PLUS Gold|
|Max. Efficiency||92 %|
|Fans||1 x 120mm|
|Internal +12V Rails||Single Rail|
|Rail 1 +12V||41.7 A|
|Rail 2 +12V||N/A|
|Rail 3 +12V||N/A|
|Rail 4 +12V||N/A|
|Rail 5 +12V||N/A|
|Rail 6 +12V||N/A|
|Max. Combined Output +12V||41.7 A|
|Dimensions||125 x 64 x 130 mm (WxHxD)|
