Scan code: LN95467 Manufacturer code: BN238

be quiet SFX-L 500 Watt Full Modular 80+ Gold SFX PSU/Power Supply

500W be quiet! SFX-L, Full Modular, 80PLUS Gold, Single Rail, 41.7A, 120mm Fan, SFX PSU w/ ATX Bracket

Thumbnail 1 : be quiet SFX-L 500 Watt Full Modular 80+ Gold SFX PSU/Power Supply Thumbnail 2 : be quiet SFX-L 500 Watt Full Modular 80+ Gold SFX PSU/Power Supply Thumbnail 3 : be quiet SFX-L 500 Watt Full Modular 80+ Gold SFX PSU/Power Supply Thumbnail 4 : be quiet SFX-L 500 Watt Full Modular 80+ Gold SFX PSU/Power Supply be quiet SFX-L 500 Watt Full Modular 80+ Gold SFX PSU/Power Supply : video thumbnail 1
Scan code: LN95467 Manufacturer code: BN238
£94.99Item due on 15 August 2022
Due 15th Aug
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Suggested alternatives

SFX L Power 500W 80+ Gold PSU from be quiet!

sfxl

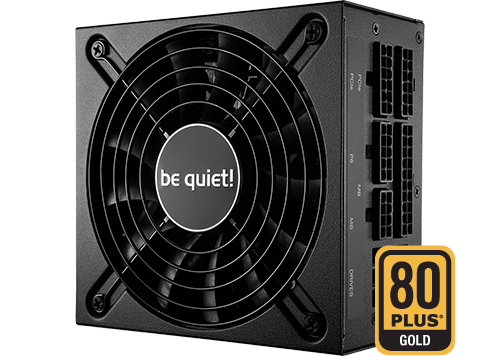

COMPACT AND SILENT ENERGY be quiet! SFX L Power 500W is especially recommended for mini ITX PCs and compact gaming systems. For compact PC systems that perform beyond the ordinary, with an ideal combination of features, power, efficiency and reliability, choose SFX L Power 500W. This impressive PSU offers an 80 PLUS Gold certification (up to 92% efficiency) along with multi-GPU support with four PCIe connectors. Easily install it into your PC with the modular cables that provide maximum build flexibility.

Intelligently Optimized for Silent Operation

EVGA SuperNOVA G3 Small Sized PSU

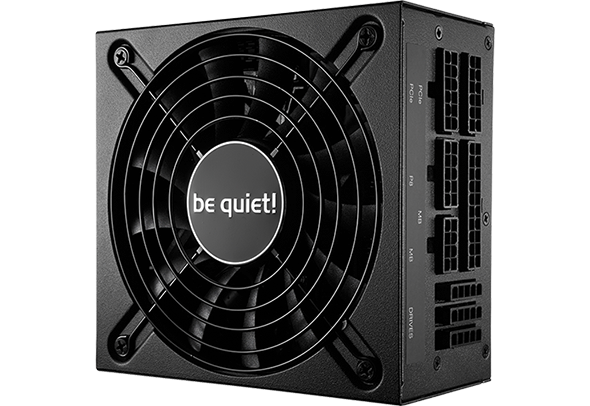

FITTED 120MM FAN The SFX L Power is a perfect power supply unit for compact gaming PC’s and for gamers who want amazing cooling in a smaller size, fitted with a temperature-controlled 120mm fan, the SFX L does exactly that. It has been engineered for silent fan operation and utilizes its fan technology to produce little wasted heat.

Powerful SFX L Connections

EVGA SuperNOVA G3 Connection Ports

COMPACT FORM WITH EXTENSIVE POWER 1. 1 x 4+4-pin CPU +12V (EPS) | 2. 4-pin Molex | 3. 6+2-pin PCIe  |  4. 6 x SATA

Organise your Cables with Total Ease

EVGA SuperNOVA G3 Cable Options

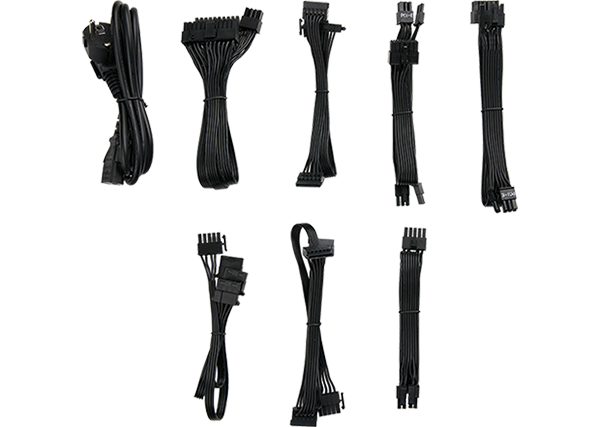

FULLY MODULAR CABLE MANAGEMENT The entirely modular cable management is made easy with the use of premium black flat cables, making installation simple and keeping your system tidy to optimize airflow.

Versatile Installation Options

back

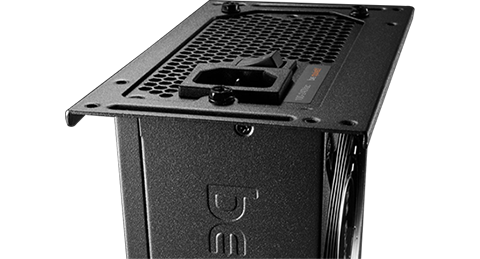

SUPER-ADAPTIVE SFX-TO-ATX BRACKET The SFX L Power offers you additional building options, coming with an SFX-to-ATX bracket that allows you to fit your PSU into an SFX chassis but also with a few easy steps can be installed into a larger ATX case.

Specifications
Size SFX - with ATX adapter bracket
Edition SFX L Power 500W
Wattage 500 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency (at 230Vac) 92.2 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 41.7 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 41.7 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 3 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 6 x SATA
Dimensions 125 x 64 x 130 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN95467
Model Number BN238
GTIN 4260052187128
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
beQuiet!
