Scan code: LN42411 Manufacturer code: PSUACE500BR

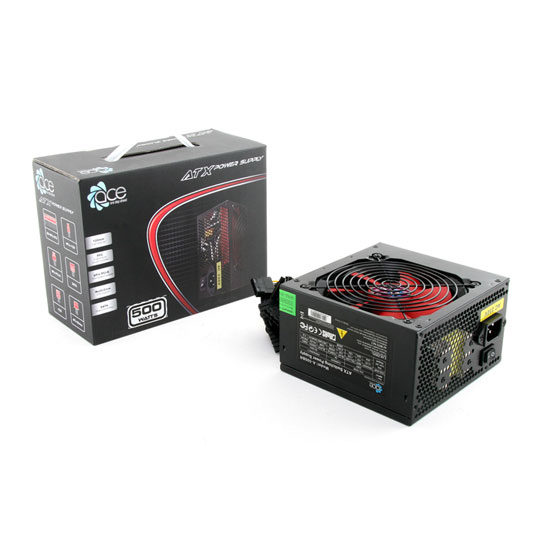

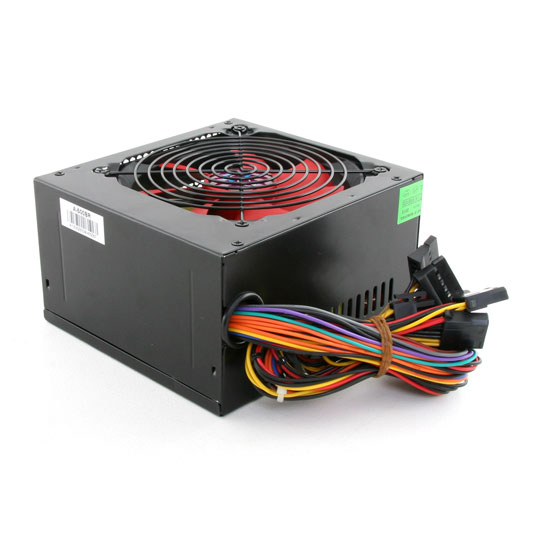

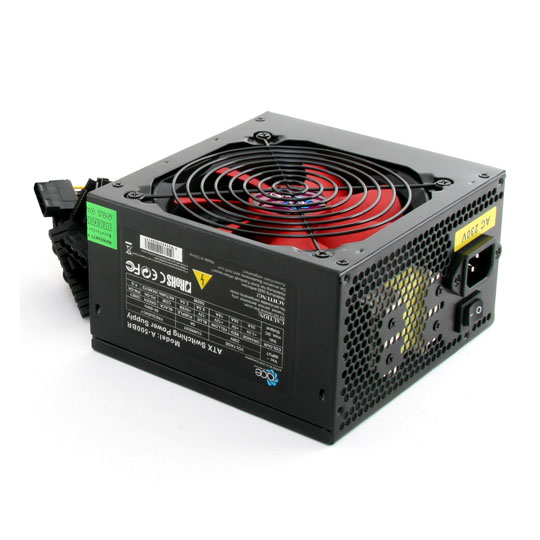

Ace 500W ATX Power Supply

500W ACE PSUACE500BR Single Rail, 1x120mm Fan, ATX v2.03, PSU

Thumbnail 1 : Ace 500W ATX Power Supply Thumbnail 2 : Ace 500W ATX Power Supply Thumbnail 3 : Ace 500W ATX Power Supply Thumbnail 4 : Ace 500W ATX Power Supply
Scan code: LN42411 Manufacturer code: PSUACE500BR
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 26th Jun 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview The ACE PSUACE500BR in Black with 120mm Quiet Red LED Fan. Value and Performance 500W

Please note :- May not be suitable for bottom mounted PSU cases Features • Output Power Max: 500W
• Power Supply Output Type: Fixed
• External Depth: 200mm
• Frequency Max: 60Hz
• Frequency Min: 50Hz
• Height: 90mm
• Input Current: 10A
• Input Voltage: 230V AC
• Mounting Type: PC Case
• No. of Outputs: 6
• Power Rating: 500W
• Power Supply Type: Enclosed
• Width: 160mm

500W PSU
Outputs: 3x 5.25", 1x 4-way, 2x SATA
20 or 24-pin motherboard power connector
12cm silent red fan for better ventilation
ATX 12V compliant for all types of CPU and mainboard
Black cooling paint

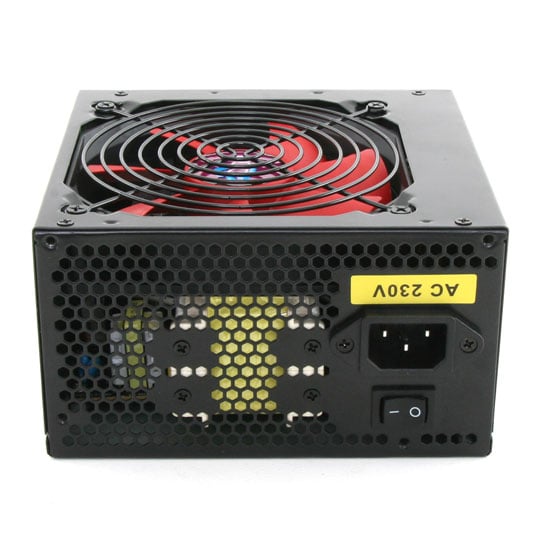

Input is via IEC320 socket
Power switch
230V ac, 50/60Hz
Dimensions (HxWxD): 90 x 160 x 200mm
Size ATX
Wattage 500 W
80 PLUS Certification Uncertified
Max. Efficiency (at 230Vac)
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 18 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V N/A
Modular No
SLI/CrossFire No
EPS 12V No
Motherboard Connector 20+4-pin
  • 1 x 4-pin ATX 12V
  • 1 x 4-pin FDD Power
  • 3 x 4-pin Molex
  • 2 x SATA
Package Type
Additional Information
Scan Code LN42411
Model Number PSUACE500BR
GTIN 5055492400017

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
DOA Period:
7 days
RTB Period:
1 months
Manufacturer Contact Details
0870 248 5492
Loading Please Wait

Please wait . . .

TekSpek Guides
Power Supplies
Power Supplies
Date Issued: 25th Oct 2017

Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.

Read More

500W ACE PSUACE500BR Single Rail, 1x120mm Fan, ATX v2.03, PSU is rated 4.3 out of 5 by 12.
Rated 5 out of 5 by from Excellent service A great company to deal with . Recommended . Enough said
Date published: 2017-02-10
Rated 2 out of 5 by from works fine but issues wires are short on the 20+4 and the 4 pin not enought power cables for hdds ect doesnt deal worth well with heat mine blew up after 2 years just hope it hasnt taken anything with it had a same branded 750 which had a faulty 4pin that caused my mobo to fry dont skimp on a psu lesson learnt
Date published: 2015-06-08
Rated 4 out of 5 by from does the job easy to install and does the job and seems to be working really well
Date published: 2015-01-28
Rated 2 out of 5 by from Good wattage, Good Price, bad cable length Bought this to replace an old 230W PSU whose cables were too short to reach the 4pin motherboard power connector and 20pin power connector as it was now in a bottom mounted position. Was hoping that this one would do the trick. The 20pin cable did manage to reach however the 4pin was the same as the other power supply and thus couldn't reach. It wasn't worth me sending it back and since it was only four wires I snipped these and extended them using the old PSU connector. As such, this PSU is only really suitable in Top Mounted cases or in cases with Mobos smaller than the standard ATX Mobo. Whilst this wasn't a problem for me in the end as it was a cheap PSU and was to upgrade an older computer. This might be problematic for others and was a bit annoying.
Date published: 2014-09-29
Rated 5 out of 5 by from excellent value Excellent value for money and quite quiet in operation.
Date published: 2014-09-27
Rated 5 out of 5 by from Deos the Job I usually buy branded certified PSU's, but I had a requirement recently for a cheap build and took a chance with one of these. It's been absolutely fine, and would certainly recommend it for a budget build on low end hardware.
Date published: 2014-09-24
Rated 5 out of 5 by from BRILLIANT AND CHEAP. Does exactly as it says on the box. decent little PSU
Date published: 2014-08-17
Rated 5 out of 5 by from Does what it says on the tin. An extremely good backup to have for redundancy however has proven itself as more than adequate in full time use for a month now!
Date published: 2014-06-30
