Scan code: LN120687 Manufacturer code: WDS500G1R0C

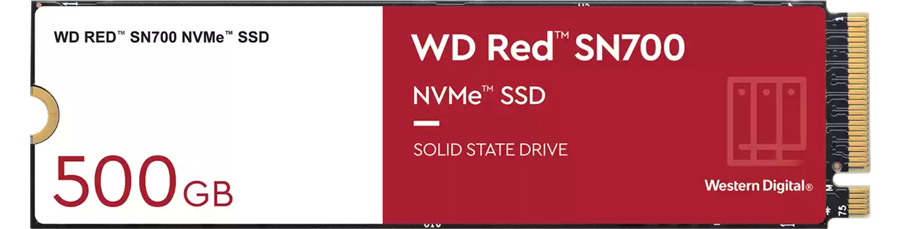

WD Red SN700 500GB M.2 PCIe NVMe NAS SSD/Solid State Drive

500GB WD Red SN700, M.2 (2280) PCIe 3.0 (x4) NVMe SSD, 3430MB/s Read, 2600MB/s Write, 420k/380k IOPS

Thumbnail 1 : WD Red SN700 500GB M.2 PCIe NVMe NAS SSD/Solid State Drive Thumbnail 2 : WD Red SN700 500GB M.2 PCIe NVMe NAS SSD/Solid State Drive Thumbnail 3 : WD Red SN700 500GB M.2 PCIe NVMe NAS SSD/Solid State Drive
Scan code: LN120687 Manufacturer code: WDS500G1R0C
£78.98Item currently awaiting an ETA
Pre order
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

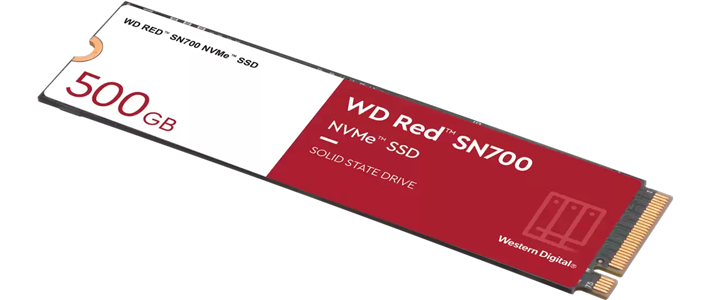

500GB WD Red SN700 NVMe SSD for NAS Devices

SN700 SSD

Accelerate Your NAS Tackle extreme workloads in high-intensity NAS environments with the fast-caching WD Red™ SN700 NVMe™ SSD. This powerful drive is engineered to support 24/7 environments and always-on applications with the ultimate in reliability and endurance. Its robust system responsiveness and exceptional I/O performance are perfect for multi-user, multitasking applications, letting you tame your SMB’s toughest projects from virtualization to collaborative editing to intensive database storage with efficient caching—all while helping to lower your TCO. Take your small-to-medium business to the next level with NVMe technology, fast speeds and huge capacities in a drive purpose-built and tested for NAS. That’s the power of WD Red.

500GBDrive Capacity

3430 MB/sSequential Read

2600 MB/sSequential Write

PCIe 3.0 x 4Interface

An Impressive Feature-Set

Accelerate Your NASThe fast-caching power of the WD Red SN700 NVMe™ SSD delivers robust system responsiveness and exceptional I/O performance compared to our SATA SSDs.

Built to LastTackle 24/7 NAS workload environments with reliability and endurance of up to 5100 TBW (4TB1 model), backed by a 5-year limited warranty.

Step Up to NVMe™Tame your SMB’s toughest projects—from virtualization to collaborative editing to intensive database storage with efficient caching —with storage designed to outperform while helping to lower your TCO.

4K Recording

Perfect for SMBsEven in smaller operations, multiple people working at the same time can tax a NAS device. NVMe caching easily handles random workloads in multi-user, multitasking applications to let small-to-medium businesses do more.

Optimise Your WorkflowPurpose-built and tested to be compatible with many of today’s most popular NAS systems for maximum flexibility to optimize your workflow.

Specifications
Capacity 500GB
Edition SN700
Form Factor M.2
Height 2.38 mm
Interface PCIe 3.0 (x4)
Host Controller Interface NVMe
Controller
Flash Memory Type None
Max. Read 3,430 MB/s
Max. Write 2,600 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 420,000 IOPS
Max. Random Write 4K 380,000 IOPS
Latency N/A
Special Features
Power Consumption (active) 2.8A
Max. Endurance Rating 1,000 TBW
MTBF 1,750,000 Hours
Max. Operating Vibration
Max. Non-operating Vibration
Max. Operating Shock
Max. Non-operating Shock
Connectivity 1 x M.2
OS Support
Bracket N/A
Dimensions 22 x 2.38 x 80 mm (WxHxD)
Weight 7.5 g
Package Type Retail
Additional Information
Scan Code LN120687
Model Number WDS500G1R0C
GTIN 718037891439
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Direct
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
WESTERN DIGITAL
