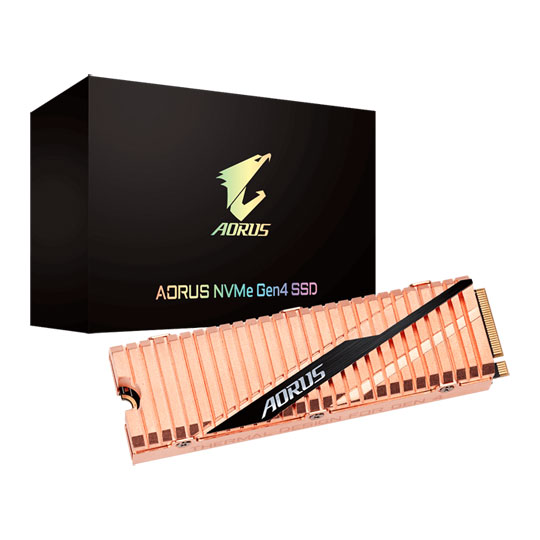

Gigabyte AORUS 500GB M.2 PCIe 4.0 x4 NVMe SSD/Solid State Drive
500GB Gigabyte AORUS SSD, M.2 (2280) PCIe 4.0 (x4) NVMe SSD, 3D TLC, 5000MB/s Read, 2500MB/s Write, 400k/550k IOPS
By DPD On 18th Jan
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

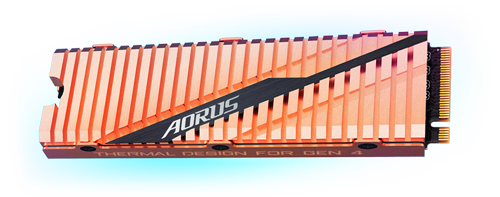

500GB AORUS M.2 NVMe Gen4 Solid State Drive
dual side copper makes it 16% cooler This compact form factor of 2280 also features Toshiba BiCS4 NAND Flash. The new Gigabyte AORUS M.2 PCIe 4.0 x4 NVMe SSD features the world first PCIe 4.0x4 Controller, Phison PS5016-E16 controller, made by 28nm manufacturing technology. AORUS NVMe Gen 4 SSD delivers blazing speeds: up to 5,000 MB/s for sequential read, and up to 2,50000MB/s sequential write for the 500GB SSD. The full body copper heatsink provides a thermal solution for outstanding PCIe 4.0 SSD performance.

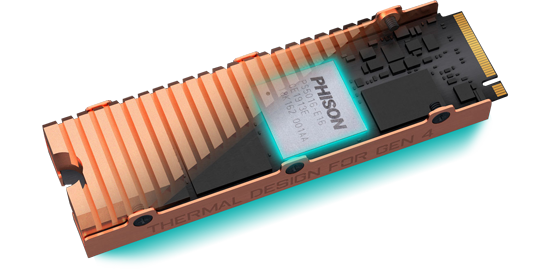

World First PCIe 4.0x4 Controller
adopting the latest 3D TLC NAND flash Introducing the World First PCIe 4.0x4 Controller, Phison PS5016-E16 controller, made by 28nm manufacturing technology. The cutting-edge fabrication process guarantees PS5016-E16 has enough compute power for ECC processing when implementing the latest 3D TLC NAND flash. PS5016-E16 also features eight NAND channels with 32 CE targets, DDR4 DRAM caching, and a PCIe 4.0x4 interface. As for features, the chip supports the NVMe 1.3 protocol, LDPC error correction, and Wear Leveling, Over-Provision technologies to improve reliability and durability of SSDs.
Related Solid State Drives from Gigabyte AORUS

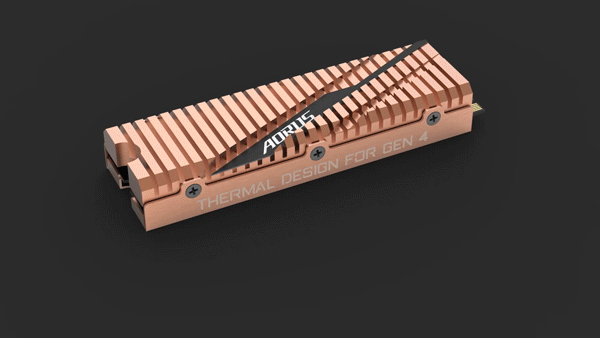

Efficient Copper Heat Spreader Design
improved thermal transfer Compared with a plated M.2 heat spreader, new efficient copper heat spreaders with 27 fins add more surface area which improve thermal transfer from heating sources to obtain thermal balance sooner. Moreover, Optimized fin array design does great heat exchange with any direction of air flow. Both unique design makes sure key components of PCIe 4.0 SSD to keep suitable working temperature under ultra-high transfer rate. Higher working temperature may cause data loss and the degradation factor of data loss could be a hundred times higher. With Full Body Copper Heat Spreaders, the AORUS NVMe Gen 4 SSD can operate at lower working temperatures to improve data storage reliability. Furthermore, SSDs can deliver extreme performance for longer periods.
Check your SSD's Health Using the Tool Box
monitor the ssd's status with ease The freshly restructured SSD Tool Box is an innovative application that assists users by monitoring SSD Status, providing general information such as model name, FW version, health condition, and it also identifies sensor temperature. Furthermore, users can clear all the data with the Secure Erase function.
Advantages of the AORUS NVMe Gen4 SSD

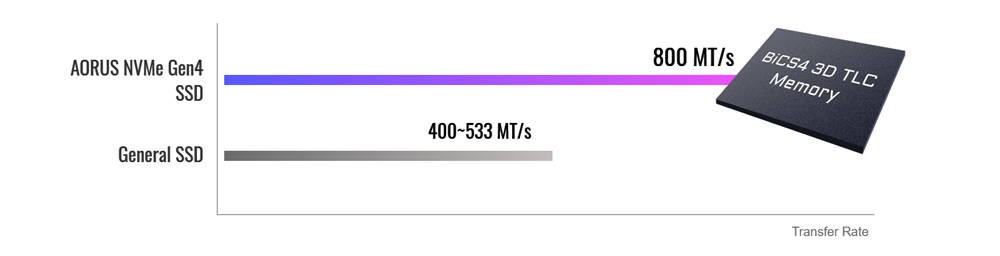

HIGH QUALITY PERFORMANCE WITH TOSHIBA Toshiba BiCS4 NAND Flash optimizes circuitry and architecture by increasing to 96 layers for higher storage space per unit area. 800MT/s throughput on the AORUS NVMe Gen 4 SSD far exceeds that of PCIe 3.0x4 devices for superior storage performance.

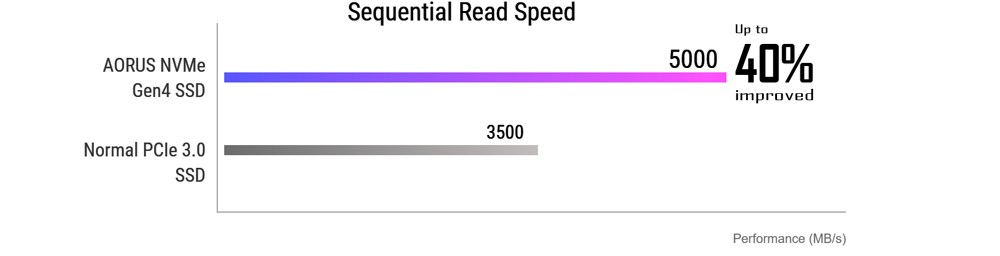

STORAGE PERFORMANCE WITH THE NEW PCIE 4.0 CONTROLLER AORUS NVMe Gen 4 SSD delivers blazing speeds: up to 5,000 MB/s for sequential read, and up to 4,400MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is up to 40% faster than PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering.

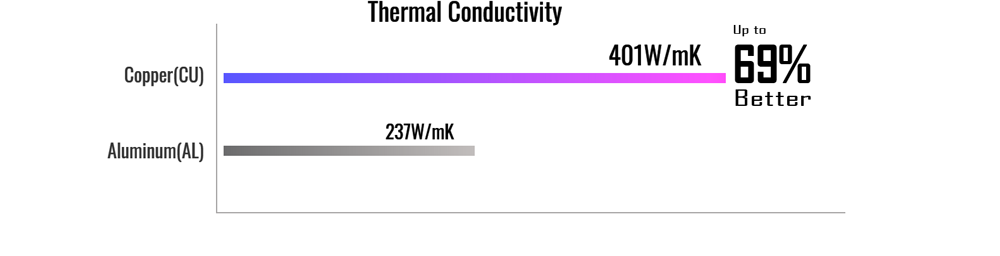

THERMAL SOLUTION FOR OUTSTANDING PCIE 4.0 SSD PERFORMANCE The Full Body Copper Heatsink takes into account the heat transfer from key components on both the front and back of the device, the controller and NAND Flash. Full copper heatsinks have 69% higher heat transfer capacity compared to aluminium heatsinks giving AORUS NVMe Gen4 SSD the best heat dissipation for read/write performance.
Guaranteed Quality from High Standard Testing

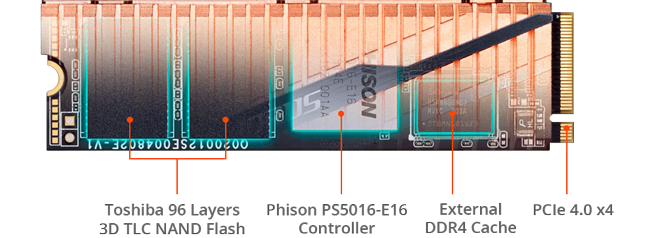

5 year warranty for peace of mind Extreme performance comes from high standard testing and the AORUS NVMe Gen4 SSD comes with a limited 5-Year warranty, Phison PS5016-E16 Controller, high quality 3D NAND TLC Flash Memory from Toshiba, and external DDR4 cache with PCIe 4.0 x4.
|Edition||AORUS NVMe Gen4 SSD|
|Form Factor||M.2 (2280)|
|Interface||PCIe 4.0 (x4)|
|Host Controller Interface||NVMe 1.3|
|Flash Memory Type||Toshiba 96-Layer 3D TLC NAND Flash|
|Max. Read||5000 MB/s|
|Max. Write||2500 MB/s|
|DRAM Cache Memory||512MB|
|DRAM Cache Memory Type||DDR4|
|Max. Random Read 4K||400,000 IOPS|
|Max. Random Write 4K||550,000 IOPS|
|Power Consumption (active)||5.9W Read, 4.5W Write|
|Max. Endurance Rating|
|Max. Operating Vibration|
|Max. Non-operating Vibration|
|Max. Operating Shock|
|Max. Non-operating Shock|
|Connectivity||1 x M.2 (PCIe)|
|Dimensions||80.5 x 11.4 x 23.5 mm (WxHxD)|
