Scan code: LN101051 Manufacturer code: CSSD-F500GBMP600

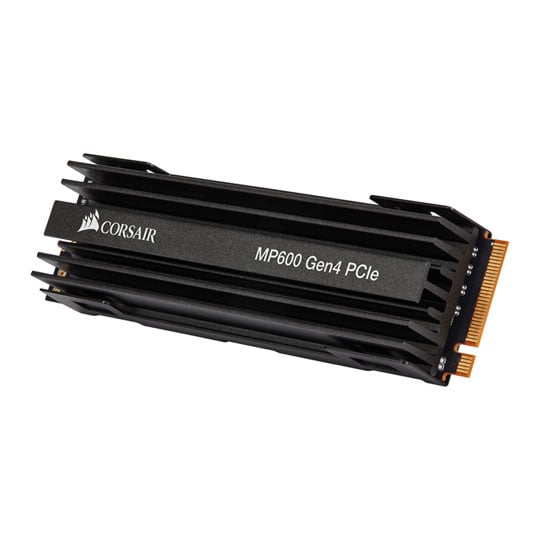

Corsair Force MP600 500GB M.2 PCIe Gen 4 NVMe SSD/Solid State Drive w/ Heatsink

500GB Corsair Force MP600, M.2 (2280) PCIe 4.0 (x4) NVMe SSD, Phison, TLC 3D NAND,4950MB/s Read,2500MB/s Write,420k/550k

Thumbnail 1 : Corsair Force MP600 500GB M.2 PCIe Gen 4 NVMe SSD/Solid State Drive w/ Heatsink Thumbnail 2 : Corsair Force MP600 500GB M.2 PCIe Gen 4 NVMe SSD/Solid State Drive w/ Heatsink Thumbnail 3 : Corsair Force MP600 500GB M.2 PCIe Gen 4 NVMe SSD/Solid State Drive w/ Heatsink Thumbnail 4 : Corsair Force MP600 500GB M.2 PCIe Gen 4 NVMe SSD/Solid State Drive w/ Heatsink Corsair Force MP600 500GB M.2 PCIe Gen 4 NVMe SSD/Solid State Drive w/ Heatsink : video thumbnail 1
Scan code: LN101051 Manufacturer code: CSSD-F500GBMP600
£104.99
Order in the next 5 mins and get it tomorrow
From £8.75 / month (APR 0%)
Monthly Payment: £8.75
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £104.99
Total inc. interest: £104.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 29th Sep to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

Force Series MP600 500GB Gen 4 PCIe NVMe M.2 SSD with Heatsink

Corsair Force MP600 SSD

BLAZING FAST GEN4 SPEED The CORSAIR Force MP600 Gen4 PCIe x4 NVMe M.2 SSD uses Gen4 PCIe technology with blazing fast sequential read speeds of up to 4,950MB/s and sequential write speeds of up to 4,250MB/s. High-density 3D TLC NAND flash memory provides an ideal mix of performance, endurance, and value, with longevity up to 1,800TB Written. Contained in an industry-standard M.2 2280 form factor and connecting using a high-speed NVMe PCIe Gen4 x4 M.2 interface, the MP600 is easy to install into a compatible motherboard and is backed by a five-year warranty. If you’re looking for extreme storage performance, go with Gen4 for ultimate fast speed.

500GB M.2 PCIe 4.0NVMe Storage 2280

4950 / 2500 MBsMaximum Read / Write

420K / 550K IOPSRandom Read / Write

Incredible Storage Performance with MP600

Performance

PCIe 4.0 (GEN4) Technology The MP600 is a Gen.4 PCIe x4 NVMe SSD that provides an unbelievable storage performance, delivering up to 10 times the sequential read and sequential write speeds of some SATA SSDs and up to 50 times the speed of some traditional HDDs on the market. The CORSAIR Force MP600 is also fully backwards compatible with current PCIe 3.0 platforms.
*Performance may vary based on system hardware and configuration.

High-Density 3D TLC NAND Memory

Memory

long lasting quality for years to come 3D TLC NAND provides an ideal mix of performance, endurance, and value to keep your drive performing at its best for years, with outstanding longevity up to 3,600TB Written.
*Endurance varies by capacity.

Lower Temperatures and Higher Performance

Heatsink

keep it cool with the heatsink The CORSAIR Force MP600 solid state drive is equipped with a high surface area aluminium heatsink, helping to maintain its performance even under heavy load.

M2 2280 Form Factor

Form factor

Fits directly into your motherboard The M.2 2280 form factor easily fits directly into your new AMD X570 chipset-based motherboard, freeing up drive space in your PC to provide better airflow and simpler cable routing.

Ready for Ryzen Processors

Ryzen

CORSAIR is an honoured launch partner for AMD's 3rd generation of Ryzen processors. The MP600 is constructed to help you get the complete advantage of PCIe 4.0 speed right out of the gate with your new Ryzen-based PC.

Specifications
Capacity 500GB
Edition Force MP600
Form Factor M.2 (2280)
Height 15 mm
Interface PCIe 4.0 (x4)
Host Controller Interface NVMe
Controller Phison PS5016-E16
Flash Memory Type TLC 3D NAND
Max. Read 4950 MB/s
Max. Write 2500 MB/s
DRAM Cache Memory Yes
DRAM Cache Memory Type
Max. Random Read 4K 420,000 IOPS
Max. Random Write 4K 550,000 IOPS
Latency N/A
Special Features
  • AES 256-bit Encryption Support
  • Bad Block Management
  • Corsair SSD Toolbox Software Support
  • Custom Heatsink
  • Dynamic Wear-Leveling
  • Garbage Collection
  • S.M.A.R.T Support
  • Static Wear-Leveling
  • TRIM Support
Power Consumption (active) 6.3W
Max. Endurance Rating 850TBW
MTBF 1,700,000 Hours
Max. Operating Vibration 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G
Max. Non-operating Vibration 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G
Max. Operating Shock 1,500 G
Max. Non-operating Shock 1,500 G
Connectivity 1 x M.2 (PCIe)
OS Support Windows 10
Bracket N/A
Dimensions 23 x 15 x 80 mm (WxHxD)
Weight 34 g
Package Type Retail
Additional Information
Scan Code LN101051
Model Number CSSD-F500GBMP600
GTIN 840006614531
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
60 months
Manufacturer Contact Details
Manufacturer:
Scan On Behalf Of Corsair
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

500GB Corsair Force MP600, M.2 (2280) PCIe 4.0 (x4) NVMe SSD, Phison, TLC 3D NAND,4950MB/s Read,2500MB/s Write,420k/550k is rated 3.0 out of 5 by 2.
Rated 1 out of 5 by from didn't work Mine turned out to be broken. A real nuisance as it took me hours to work out it's not the motherboard or bios (I didn't have another pcie4 pc to test it on!).
Date published: 2020-05-24
Rated 5 out of 5 by from It's fast It's hard to know what to write about a drive like this. Yes, it is very fast. Will you notice the difference over a 2.5 SSD on SATA3? Honestly, the vast majority of the time, no. For me it was more about future proofing and taking advantage of the features that an x570 board provides.
Date published: 2020-05-18
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_GB, sid_101051, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

Asus prime h30 plus r2.0

Would this ssd be a good drive for this motherboard? looking at adding a 2nd ssd for just games and videos and was looking at this 1 or 1 of the Samsung evo drives (ideally 1tb or bigger). Would this be compatible or should i stick with the evo or other recommendation? thanks in advance.
Asked by: nnighteelff
It would probably work but you are wasting your money. You need a motherboard that supports PCIe Gen 4 and the PRIME H310-PLUS R2.0 does not. Indeed reading up on it it looks like even a PCIe Gen 3 SSD would be bottlenecked. "Due to the Chipset limitation, when a M.2 device is installed in PCIe mode, the socket is set to PCIe 2.0" https://www.overclockers.co.uk/asus-prime-h310-plus-r2.0-intel-h310-socket-1151-ddr4-atx-motherboard-mb-6bh-as.html Stick with a Samsung Evo.
Answered by: ro55mo
Date published: 2020-05-19

Is the heatsink easily removable?

My motherboard comes with a fan specifically for the M.2 slot. Will I be able to install this without the heatsink so I can take advantage of the fan?
