Scan code: LN106981 Manufacturer code: USW-FLEX-MINI

Ubiquiti UniFi Flex Mini 5-Port Managed Gigabit PoE Switch

5-Port Ubiquiti UniFi Flex Mini Gigabit Managed PoE Switch, USB Type-C, White

MORE INFO
MORE INFO
Free Ubiquiti EU to UK Plug Convertor
Thumbnail 1 : Ubiquiti UniFi Flex Mini 5-Port Managed Gigabit PoE Switch Thumbnail 2 : Ubiquiti UniFi Flex Mini 5-Port Managed Gigabit PoE Switch Thumbnail 3 : Ubiquiti UniFi Flex Mini 5-Port Managed Gigabit PoE Switch Thumbnail 4 : Ubiquiti UniFi Flex Mini 5-Port Managed Gigabit PoE Switch
Scan code: LN106981 Manufacturer code: USW-FLEX-MINI
£35.99Item overdue since 13 May 2022
Pre Order
Pre order
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

USW Flex Mini

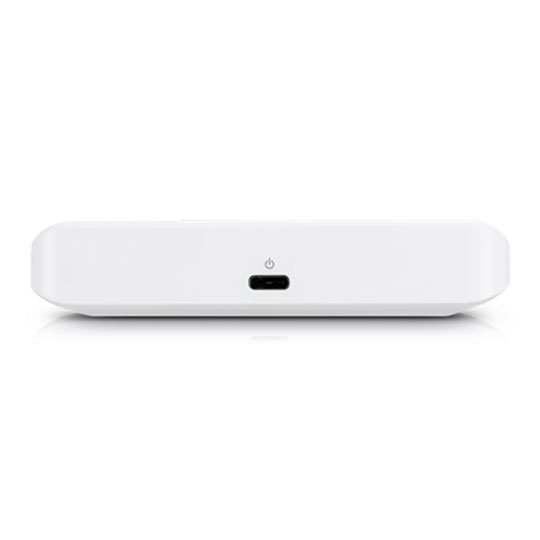

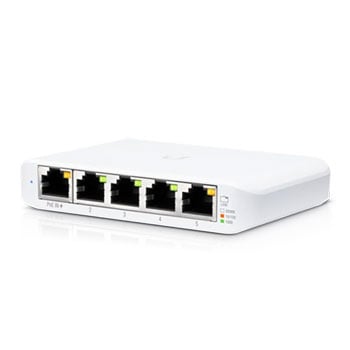

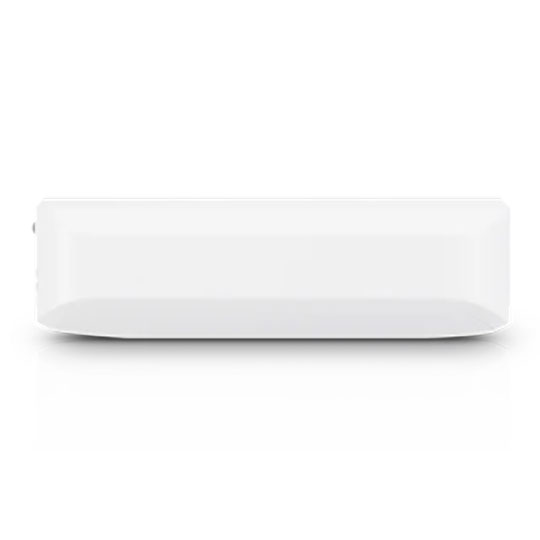

Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.

Features

Works with UniFi Network Controller
• Manage Your Networks from a Single Control Plane.
• Intuitive and Robust Configuration, Control and Monitoring.
• Remote Firmware Upgrade.
• Users and Guests.
• Guest Portal/Hotspot Support.

Specifications
Edition Smart Switch
Form Factor Desktop
Total Network Ports 5 x 10/100/1000 (Gigabit) RJ-45
PoE Support Type PoE
No. of Ports Providing PoE
Other Non-Network Ports
Switching Capacity 10Gbps
Non-Blocking Throughput
Forwarding Rate 7.44
MAC Address Table Size
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
Acoustic Noise
Max. Power Consumption 2.5 W
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF)
Power Supply
Material
Includes
Dimensions (WxHxD) 107.16 x 21.17 x 70.15 mm
Weight 0.15 kg
Additional Information
Scan Code LN106981
Model Number USW-FLEX-MINI
GTIN 817882029698
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Direct
Manufacturer Contact Details
Manufacturer:
Ubiquiti
5 Port Ubiquiti UniFi Flex Mini Gigabit Managed PoE Switch, USB Type C is rated 4.0 out of 5 by 1.
Rated 4 out of 5 by from Non UK Power Supply The product is awesome but unfortunately it doesn't come with a UK power supply so you'll either need an adaptor, a spare USB-C power supply/lead or use POE to power it.
Date published: 2020-08-17
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_GB, sid_106981, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

Is the PoE port only to power the switch?

The quick guide and the specifications seem to indicate so, but I have not seen what is the actual usage of the PoE port if the switch is powered by the provided USB-C plug, is it just a normal ethernet port in this case? Thanks!
Asked by: Jajeongeo
Yes, the POE port is used only to power the switch, there is no pass-through port either.
Answered by: Lee75
Date published: 2020-08-17
