Scan code: LN114427 Manufacturer code: TL-SX105

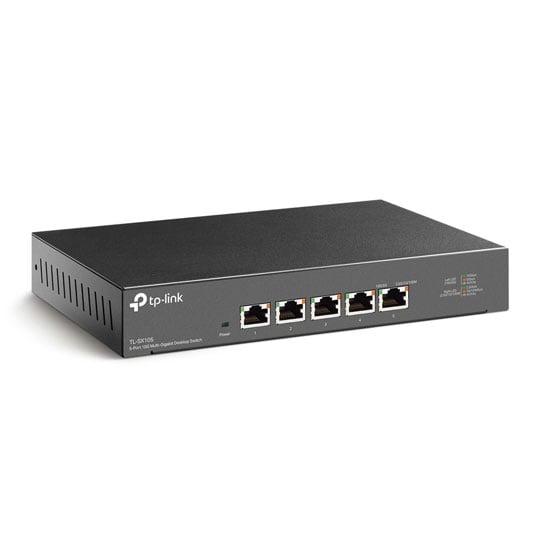

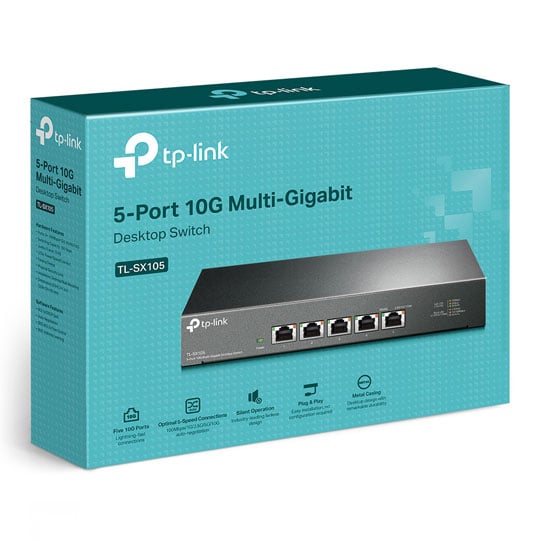

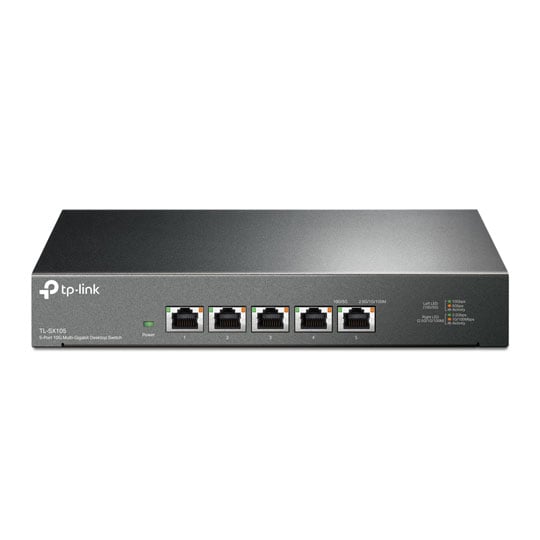

TP-LINK TL-SX105 5-Port 10G Unmanaged Desktop Switch

5-Port TP-LINK TL-SX105 10G Multi-Gigabit Desktop Switch, 5x 100/1G/2.5G/5G/10G, Fanless, Plug & Play, Metal Housing

Thumbnail 1 : TP-LINK TL-SX105 5-Port 10G Unmanaged Desktop Switch Thumbnail 2 : TP-LINK TL-SX105 5-Port 10G Unmanaged Desktop Switch Thumbnail 3 : TP-LINK TL-SX105 5-Port 10G Unmanaged Desktop Switch Thumbnail 4 : TP-LINK TL-SX105 5-Port 10G Unmanaged Desktop Switch
Scan code: LN114427 Manufacturer code: TL-SX105
£239.99Item due on 13 March 2021
Due 13th Mar
From £11.52 / month (APR 14.9%)
Monthly Payment: £21.55
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £239.99
Total inc. interest: £258.53
Monthly Payment: £11.52
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £239.99
Total inc. interest: £276.46
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Unlock the Highest Performance of 10G/Multi-Gig Bandwidth and Devices

As the flagship 10G product, TL-SX105 is a 5-port 10G desktop switch, providing up to 100 Gbps of switching capacity. Auto-negotiation 5-speed (100Mbps/1G/2.5G/5G/10G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including 10G NAS, 10G server, workstation, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, desktop, and more.


Ready for Immediate Network Upgrading to 10G?

Reliable, lightning-fast connections and the lowest possible latency make it ideal for gaming and small office and home office use.
LAN Party: Never host a laggy LAN party again. Experience the unparalleled speed and let the game run smoothly.
Home Entertainment: Enjoy a fun game time and 8K videos with friends and family, without having to ever worry about buffering again.
Small and Home Offices: Work at office or home with lightning-fast connections to workstations and WiFi 6 access points.
Instant Transfer for Workstations: Immediately back up and store computer files to NAS storage with increased transfer speeds, never waste time.


Built for Smooth LAN Parties

Never host a laggy LAN party again. Experience the unparalleled speed and lower latency, and prioritize gaming traffic with QoS. Let’s begin the unprecedented smooth game!


Enjoy Buffer-Free 8K Videos

Enjoy buffer-free multi-channel 8K videos with friends and family for movie nights with maximum entertainment.


More 10GE LAN Ports for WiFi 6 Networking

Expand the 10GE LAN ports of your WiFi 6 routers and connect more devices—all running at max 10 Gbps.


Lightning-Fast Connections for Business and Home Office

Work at office or home with lightning-fast connections to workstations, desktop computers, and WiFi 6 access points.


Unlock the Real WiFi 6

The best option to meet the full bandwidth potential of WiFi 6 access points with 10G wired connections.


Instant Transfer for Workstations

Immediately back up and store computer files to NAS storage with increased transfer speeds, never waste time.


Silent Operation with ndustry-Leading Fanless Design

The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business. Durable metal casing, desktop/wall-mounting design and professional heat dissipation design are well-suited for different environments.


Just Plug and Play for Internet Access

A plug-and-play design allows for easy deployment without the need for a technician. Auto MDI/MDIX eliminates the need for crossover cables.


Same Cables, New Speed

Designed to integrate flawlessly into existing gigabit Ethernet network infrastructures, guaranteeing speeds 5× faster using standard Cat5e Ethernet cables—no Cat6 wiring needed. With Cat6a or higher rated cables, 10G connections are built up to 100 meters (328 feet).

Features


Five 10 Gbps Ports: 5× 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 100 Gbps of switching capacity.
Lightning-Fast Connections: Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more.
Ideal for Various Scenarios: Built for lightning-fast connections in LAN parties, home entertainment, small and home offices, and workstations.
Optimal 5-Speed Connections: Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance.
Silent Operation: The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business.
Durable Metal Casing: Durable metal casing, desktop/wall-mounting, and professional heat dissipation design are well suited for different environments.
Plug and Play: Allows for easy deployment without the need for a technician.

Specifications
Edition Unmanaged Switch
Form Factor Desktop/Wall Mount
Total Network Ports 5 x 1000/10Gb RJ-45
PoE Support Type
No. of Ports Providing PoE
Other Non-Network Ports
Switching Capacity 100 Gbps
Non-Blocking Throughput
Forwarding Rate 74.4 Mpps
MAC Address Table Size 32K Entries
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
  • IEEE 802.1p
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3an
  • IEEE 802.3u
  • IEEE 802.3x
Acoustic Noise
Max. Power Consumption 21.4 W
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF)
Power Supply External Power Supply (Included)
Material Metal
Includes
Dimensions (WxHxD) 226 x 35 x 131 mm
Weight
Additional Information
Scan Code LN114427
Model Number TL-SX105
GTIN 6935364030902
